General Information |
|
Summary |
Easy to manage, fundamental network features at an affordable cost for SMBs. GS305EP offers 63W total power budget to power devices PoE devices such as VoIP phones, IP cameras, wireless access points, etc.
New and improved Smart Managed Plus switches
Along with the already great Smart Managed Plus features, GS305EP enhances your business networking experience even more with exciting new features: advanced PoE controls with uninterrupted PoE and more, business-friendly GUI, simplified VLAN and QoS set-up, and multi-language support.
Why GS305EP?
- Cost-effective business networking management features: VLAN, QoS, advanced PoE controls, etc.
- Data security and network separation to safeguard your business.
- Advanced per port PoE controls (including power allocation override) and remote enable/disable/power cycle.
- Smart Managed Plus switch that now provides PoE+ to power devices such as wireless APs, IP cameras, VoIP phones, access-controlled security door locks or any other IoT PoE-powered devices.
Why 300 Series NETGEAR Smart Managed Plus?
- NETGEAR has the largest PoE switch portfolio in the market.
- Provides both basic and advanced management features at a cost-effective price for SMBs.
- Uninterrupted PoE and PoE controls in a Smart Plus switch.
- Reliability of the NETGEAR switches. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2/L3 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
MIB support |
Y |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
5 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
Network |
|
Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
|
10G support |
No |
|
Port mirroring |
Yes |
|
Full duplex |
Yes |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Ethernet LAN data rates |
100 Mbit/s |
|
VLAN support |
Yes |
|
Number of VLANs |
64 |
|
Data transmission |
|
MAC address table |
4000 entries |
|
Switching capacity |
10 Gbit/s |
|
Store-and-forward |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9216 |
|
Packet buffer memory |
0.192 MB |
|
Security |
|
DHCP features |
DHCP client |
|
IGMP snooping |
Yes |
|
Loop protection |
Yes |
|
Password protection |
Yes |
|
Queue scheduling algorithms |
Weighted Round Robin (WRR) |
|
Multicast features |
|
Multicast support |
Yes |
|
Design |
|
Product colour |
Black |
|
Housing material |
Metal |
|

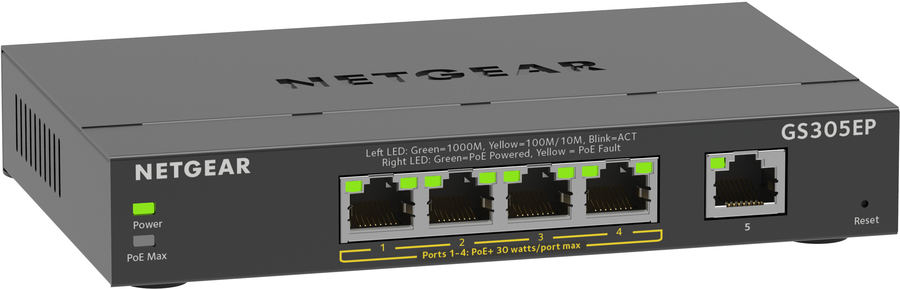

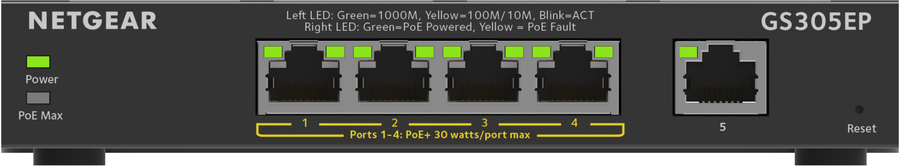

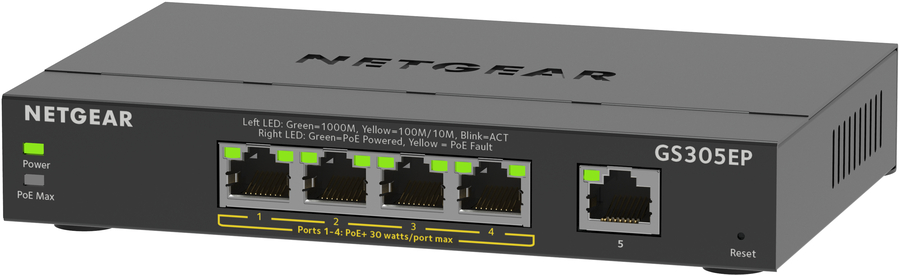

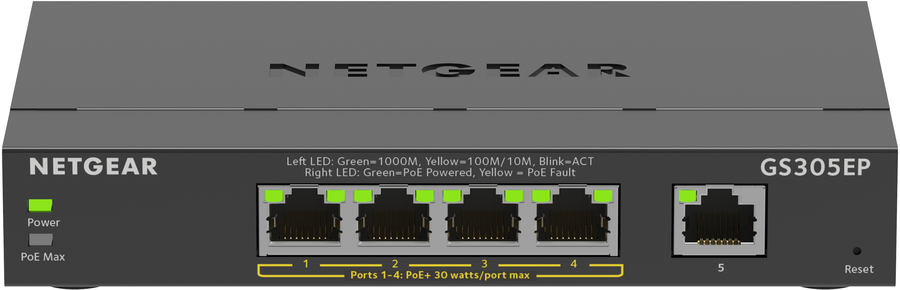

LED indicators |
Activity, Link, PoE, Power, Speed, System |
|
Wall mountable |
Yes |
|
Performance |
|
Fanless |
Yes |
|
Mean time between failures (MTBF) |
1164104 h |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet (PoE) ports quantity |
4 |
|
Power over Ethernet plus (PoE+) ports quantity |
4 |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Weight & dimensions |
|
Width |
158 mm |
|
Depth |
101 mm |
|
Height |
27 mm |
|
Weight |
390 g |
|
Packaging content |
|
Quick start guide |
Yes |
|
User guide |
Yes |
|
Manual |
Yes |
|
Certificates |
|
Certification |
CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI |
