General Information |
|
Summary |

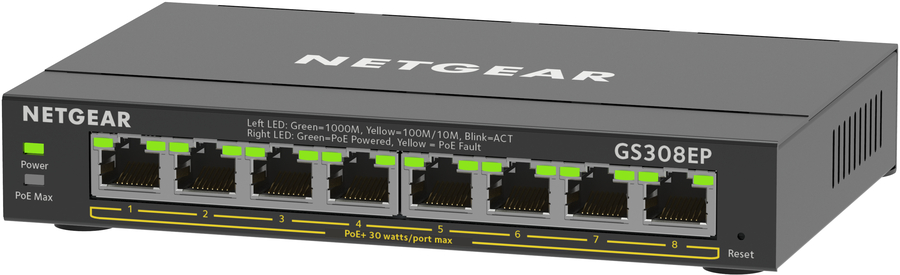

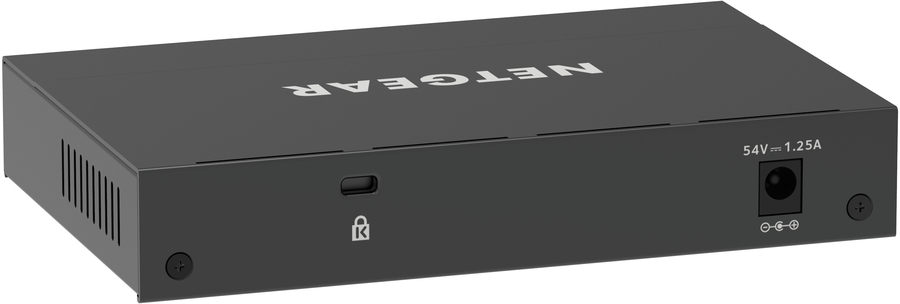

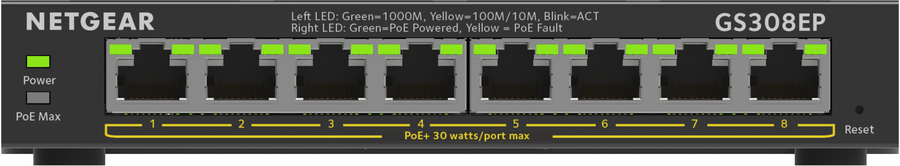

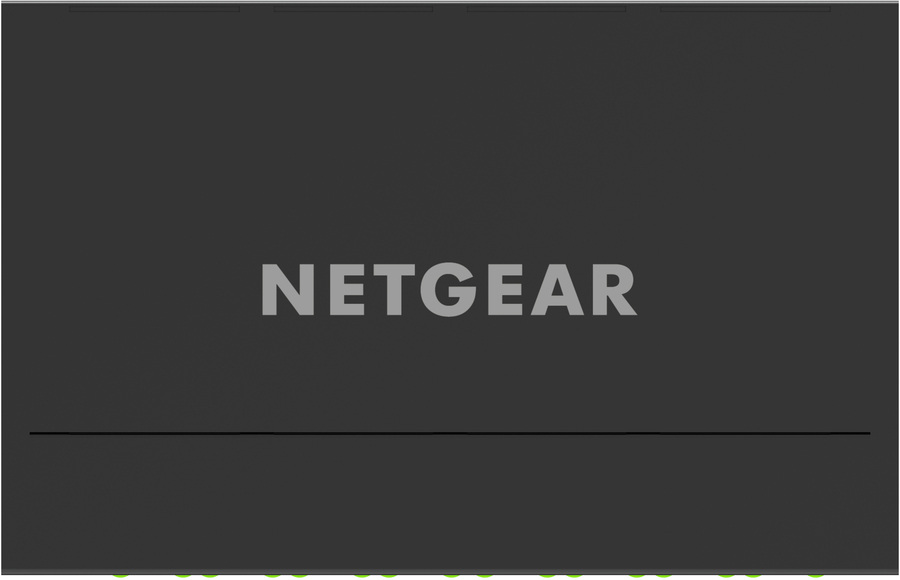

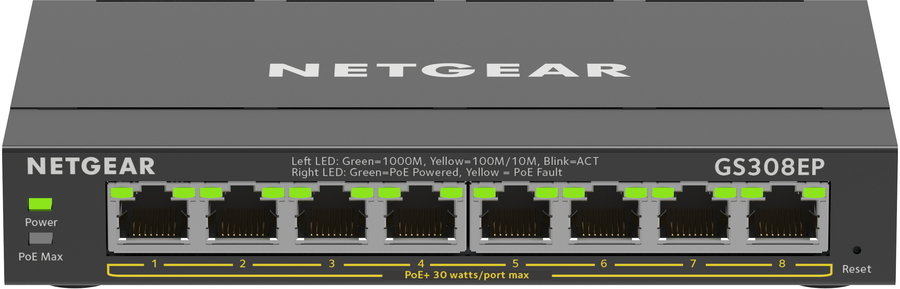

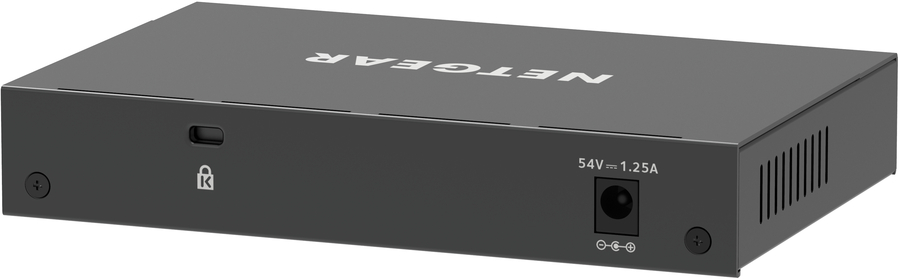

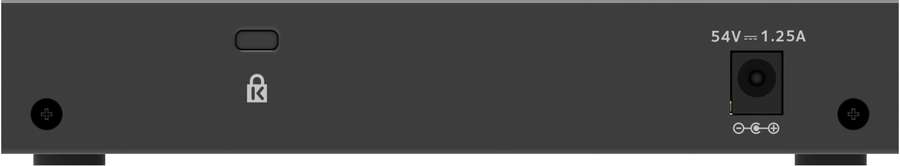

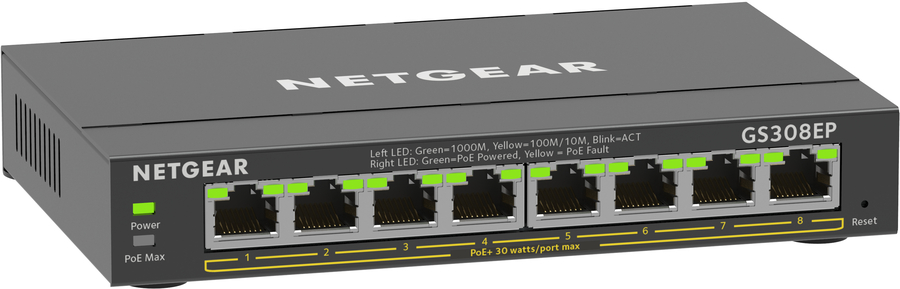

300 Series SOHO Plus (GS308EP)
The NETGEAR 8-Port Gigabit Ethernet PoE+ Plus Switch delivers essential business networking features and powers PoE+ devices like VoIP phones, IP cameras, and more. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2/L3 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
MIB support |
Y |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
8 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
Network |
|
Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
|
10G support |
No |
|
Port mirroring |
Yes |
|
Full duplex |
Yes |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Ethernet LAN data rates |
1000 Mbit/s |
|
VLAN support |
Yes |
|
Data transmission |
|
MAC address table |
4000 entries |
|
Switching capacity |
16 Gbit/s |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9216 |
|
Security |
|
DHCP features |
DHCP client |
|
IGMP snooping |
Yes |
|
Loop protection |
Yes |
|
Multicast features |
|
Multicast support |
Yes |
|
Design |
|
Product colour |
Black |
|
LED indicators |
Yes |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet (PoE) ports quantity |
8 |
|
Power over Ethernet plus (PoE+) ports quantity |
8 |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Weight & dimensions |
|
Width |
158 mm |
|
Depth |
101 mm |
|
Height |
27 mm |
|
Packaging content |
|
Quick start guide |
Yes |
|
User guide |
Yes |
|
Manual |
Yes |
|
Certificates |
|
Certification |
CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety
KC, BSMI |
