General Information |
|
Summary |

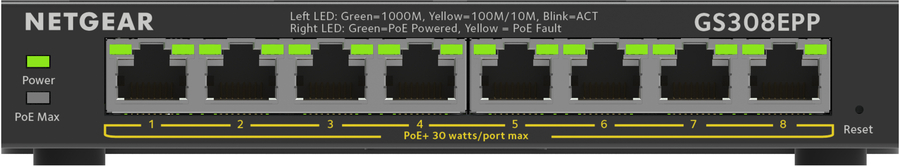

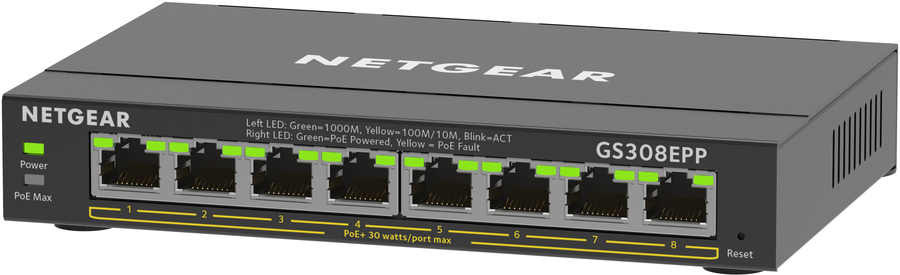

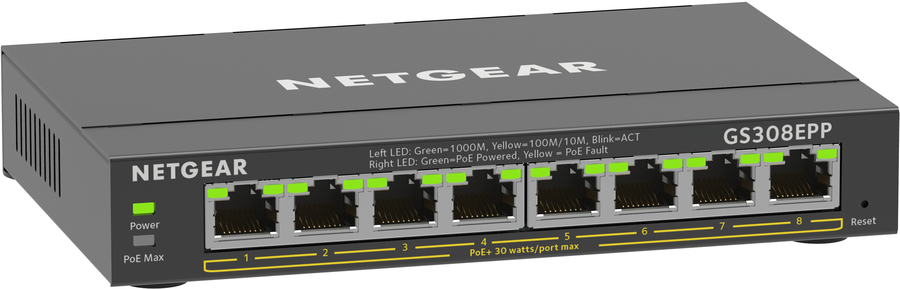

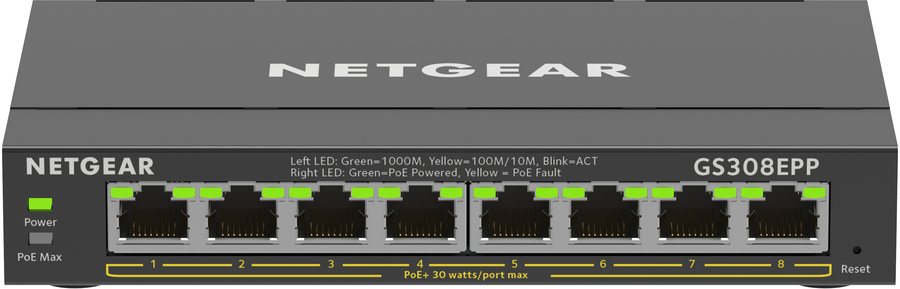

300 Series SOHO Plus (GS308EPP)
8-Port Gigabit Ethernet PoE+ Plus Switch (123W)
Easy to manage, fundamental network features at an affordable cost for SMBs. GS308EPP offers 123W total power budget to power devices PoE devices such as VoIP phones, IP cameras, wireless access points, etc.
Gigabit Ethernet
8 ports provide up to 1000 Mbps of dedicated, non-blocking bandwidth each.
PoE+ Support
8 PoE+ ports provide a total of 123W of power so you can power and connect your devices with a single wire.
Advanced PoE Controls
Manage PoE prioritization, PoE power limit per port, and more for simple control over all PoE-powered devices.
Non-Blocking Switching
10Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.
Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments.
Versatile Mounting Options
Install your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2/L3 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
MIB support |
Y |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
8 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Network |
|
Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
|
10G support |
No |
|
Port mirroring |
Yes |
|
Full duplex |
Yes |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Ethernet LAN data rates |
1000 Mbit/s |
|
VLAN support |
Yes |
|
Data transmission |
|
MAC address table |
4000 entries |
|
Switching capacity |
16 Gbit/s |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9216 |
|
Security |
|
DHCP features |
DHCP client |
|
IGMP snooping |
Yes |
|
Loop protection |
Yes |
|
Multicast features |
|
Multicast support |
Yes |
|
Design |
|
Product colour |
Black |
|
LED indicators |
Yes |
|
Certification |
CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI |
|
Power |
|
AC input voltage |
100 - 220 V |
|
AC input frequency |
50 - 60 Hz |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet (PoE) ports quantity |
8 |
|
Power over Ethernet plus (PoE+) ports quantity |
8 |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Weight & dimensions |
|
Width |
158 mm |
|
Depth |
101 mm |
|
Height |
27 mm |
|
Packaging data |
|
Quick start guide |
Yes |
|
User guide |
Yes |
|
Manual |
Yes |
