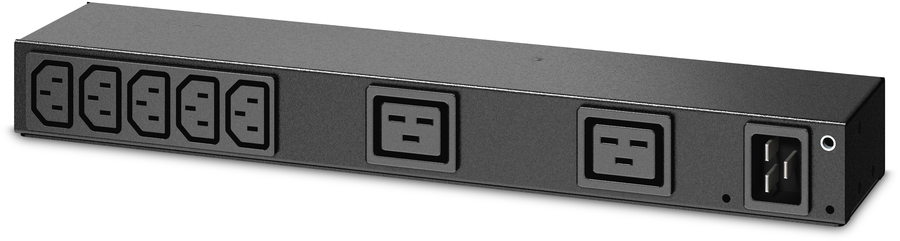

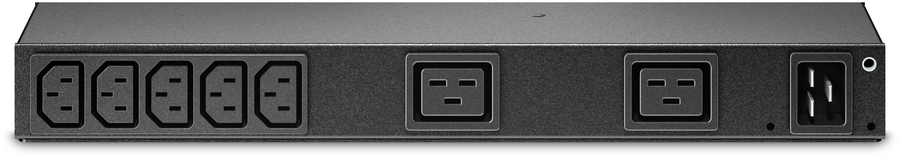

APC AP6120A Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (7) C13, (2) C19
|
|
Regularly: $171.00
On Sale: $165.87
Sale Ends:
November 16th, 2025
Manufacturer:
APC
Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (7) C13, (2) C19, Black
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
56806632
|
AP6120A
|
731304327851 |
Active
|
Details
|
General Information |
|
Summary |
Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (7) C13, (2) C19 |
|
Design |
|
PDU types |
Basic |
|
Rack capacity |
0U/1U |
|
Type |
Single-phase |
|
Mounting |
Horizontal/Vertical |
|
Product colour |
Black |
|
Ports & interfaces |
|
AC outlets quantity |
7 AC outlet(s) |
|
AC outlet types |
C13 coupler, C19 coupler |
|
Power plug |
C20 coupler |
|
Power |
|
Nominal input voltage |
100-240 V |
|
Maximum current |
20 A |
|
AC input frequency |
50 - 60 Hz |
|
Nominal output voltage |
100-240 V |
|
Load capacity |
3680 VA |
|
Maximum input current per phase |
16 A |
|
Maximum power |
3680 W |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Certification |
UL/C-UL, VDE, CE |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-15 - 60 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Weight & dimensions |
|
Width |
4.36 mm |
|
Depth |
9.29 mm |
|
Height |
38.8 mm |
|
Weight |
1.56 kg |
|
