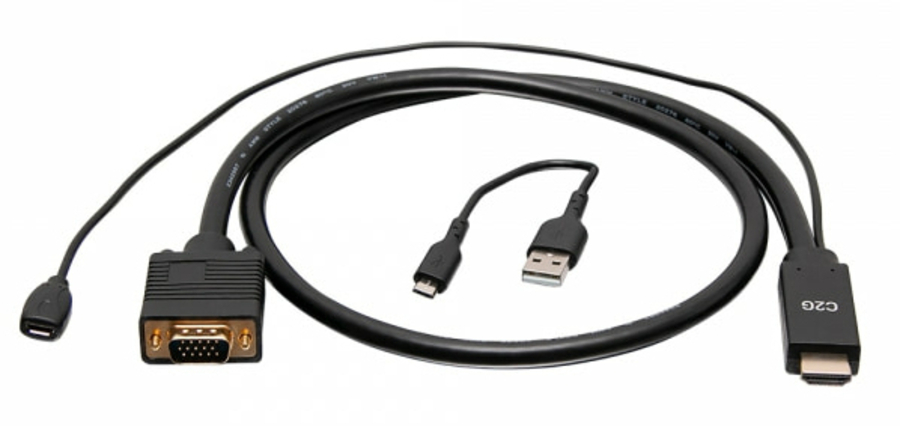

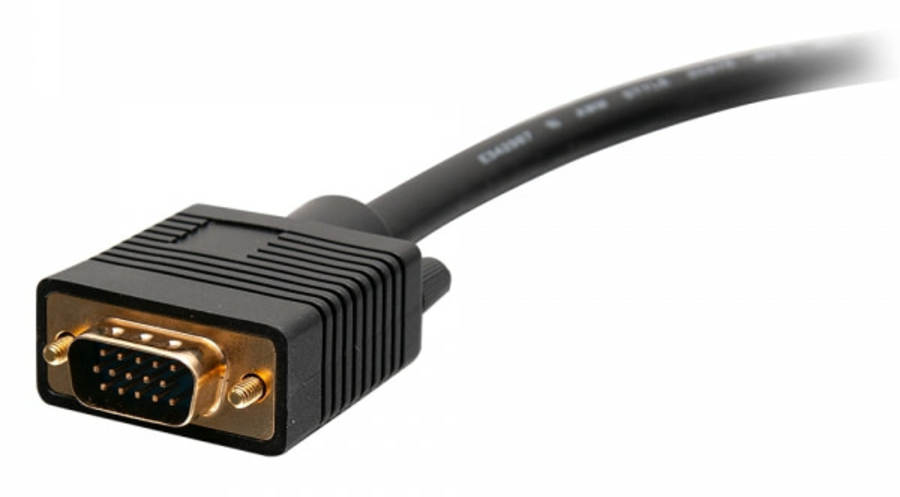

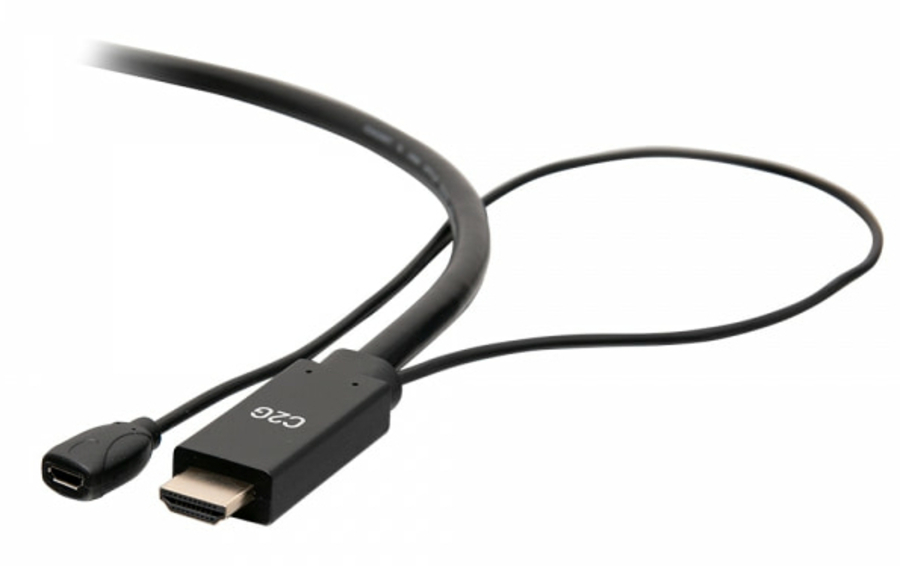

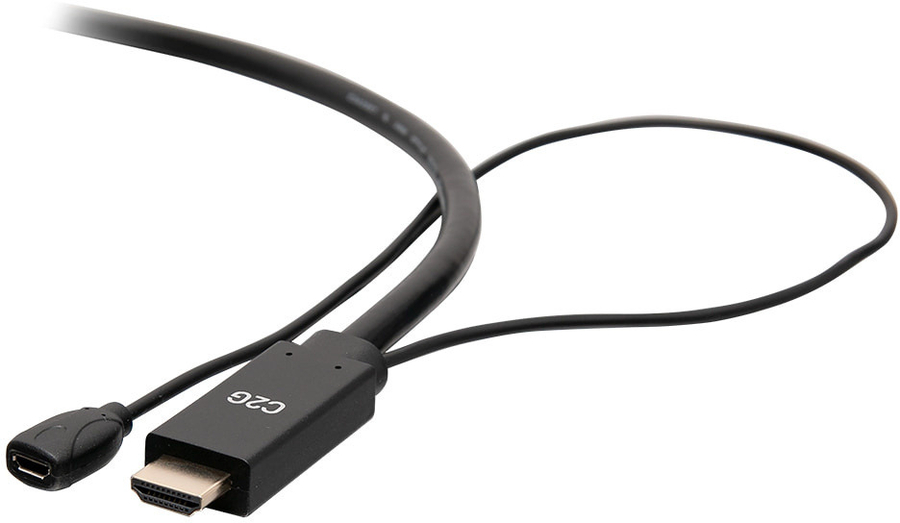

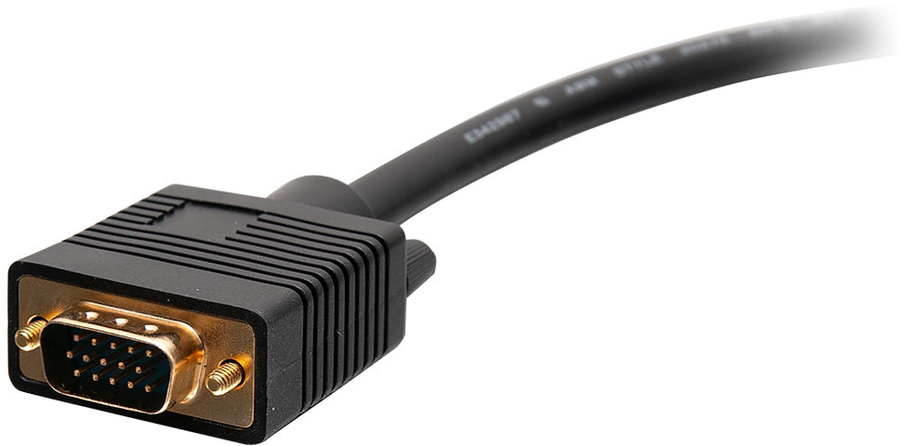

C2G 10-Foot Active HDMI Male to VGA Male Converter Cable
|
|
Price: $36.00
Manufacturer:
C2G
3m HDMI to VGA Active Video Adapter Cable - 1080p
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
56816070
|
C2G41473
|
757120414735 |
Active
|
Details
|
General Information |
|
Summary |
This HDMI to VGA Active Video Adapter Cable is an easy and convenient solution for connecting a VGA display to an HDMI equipped computer in your home or your office. This adapter cable converts an active digital HDMI signal to an analog VGA video signal, supports up to a 1080p resolution, and meets the requirements of high performance applications - perfect for Chromebooks, laptops, and desktops with HDMI outputs.
Avoid frustration by simply plugging the adapter cable into your computer's HDMI output, then attach to the VGA input of your monitor or projector. The cable form factor of this adapter provides a simple and convenient solution that eliminates the need for a separate adapter and cable. The added USB power cable is perfect for those times when additional connectivity power is needed. |
|
Features |
|
Cable length |
3.05 m |
|
Connector 1 |
VGA (D-Sub) |
|
Connector 2 |
HDMI |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
Connector contacts plating |
Nickel |
|
Maximum resolution |
1920 x 1080 pixels |
|
Data transfer rate |
1.65 Gbit/s |
|
Bandwidth |
165 MHz |
|
Maximum refresh rate |
60 Hz |
|
Product colour |
Black |
|
Chipset |
AG6200: QFN-48 pin |
|
Jacket material |
Polyvinyl chloride (PVC) |
|
AWG wire size |
28/30 |
|
Converter type |
Active video converter |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 60 °C |
|
Storage temperature (T-T) |
-10 - 80 °C |
|
Operating relative humidity (H-H) |
10 - 85% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Certificates |
|
Certification |
CE, 2011/65/EU ROHS 2 |
|
Weight & dimensions |
|
Cable diameter |
3 mm |
|
Weight |
100 g |
|
Packaging data |
|
Package weight |
300 g |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
