StarTech External USB/USB Type-C to SATA M.2 or PCIe M.2 NVMe SSD Enclosure
|
|
Regularly: $114.00
On Sale: $109.44
Sale Ends:
April 26th, 2024
Manufacturer:
StarTech
StarTech.com USB-C 10Gbps to M.2 NVMe or M.2 SATA SSD Enclosure - Portable External M.2 PCIe/SATA NGFF SSD Aluminum Case - USB Type-C & USB-A Host Cables - Supports 2230/2242/2260/2280 (SM2E1BMU31C)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
56952646
|
SM2E1BMU31C
|
65030891684 |
Active
|
Details
|
General Information |
|
Summary |
Works with Both PCIe and SATA Based M.2 Drives | Supports 2230/2242/2260/2280 Drive Heights | USB-C and USB-A Host Cables IncludedTurn your PCIe M.2 NVMe or SATA AHCI M.2 SSD into a highly portable, USB-based external storage solution. This enclosure features USB 3.2 Gen 2x1 (10Gbps) with UASP support & PCIe 3.0 delivering real read/write data transfer speeds up to 1GB per second. Working with both PCIe and SATA based drives, this enclosure ensures compatibility with virtually any M.2 drive, supporting both M-Key (PCIe) and B+M-Key (SATA) drives sized 2230/2242/2260/2280.USB 3.2 Gen 2x1 10Gbps (also known as USB 3.1 Gen 2) is backward compatible with USB 3.1 Gen 1 5Gbps (also known as USB 3.0), USB 2.0, and USB 1.1.All-in-One M.2 and USB SolutionWith compatibility for both PCIe NVMe and SATA based M.2 drives, this enclosure solves the common challenge of identifying which enclosure is compatible with your M.2 drive. Regardless of whether your M.2 drive is SATA or PCIe NVMe based, you can rest assured that this enclosure will provide a high-performance solution for turning your M.2 drive into a portable external enclosure. For further compatibility the enclosure works with multiple drive heights supporting 2230, 2242, 2260 and 2280mm drives including Samsung (850, 860, 870, 950, 960, 970) Kingston, Seagate, Western Digital (WD), HP, and Intel SSD drives.For multiplatform support this enclosure, that features a USB-C host connection, includes two different host cables, a USB-C to USB-C cable (20 in. / 50 cm) and a USB-C to USB-A cable (10" / 25 cm). This combined with the backward compatibility of the USB protocol, ensures that this M.2 enclosure will work with virtually any computer, whether it's USB-A, USB-C or Thunderbolt 3.Unparalleled PerformanceLeverage the high speeds of your M.2 NVMe or SATA drive, with this external SSD enclosure. It delivers USB 3.2 Gen 2x1 maximum theoretical throughput of 10Gbps, which is twice the throughput of USB 3.2 Gen 1x1 at 5Gbps. The enclosure also supports PCIe 3.0 which when combined with an M.2 NVMe drive takes full advantage of the throughput available to USB 3.2 Gen 2x1.This fan-less aluminum enclosure features ventilation holes for maximum heat dissipation, ensuring your drive operates noiselessly at an optimal temperature to preserve performance and protect your drive from overheating damage.Durable and PortableThis slim, pocket-sized enclosure for PCIe NVMe or SATA based M.2 drives is specially designed for mobility, with a small form-factor design that fits easily into your laptop bag. Its lightweight, yet durable aluminum housing helps to ensure your drive won't be damaged while you're on the move.Hassle-Free Drive InstallationThe external M2 SATA or M.2 NVMe SSD enclosure case supports driverless plug-and-play installation and hassle free drive installation. A screwdriver is included ensuring no additional tools are required.SM2E1BMU31C is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage |
|
Storage |
|
Storage drive size |
M.2 |
|
Supported storage drive interfaces |
M.2 |
|
Number of storage drives supported |
1 |
|
Supported storage drive lengths |
30,42,60,80 mm |
|
Ports & interfaces |
|
USB connectivity |
Yes |
|
USB version |
3.2 Gen 2 (3.1 Gen 2) |
|
USB connector type |
USB Type-C |
|
USB connector gender |
Female |
|
USB ports quantity |
1 |
|
Integrated USB cable |
No |
|
Design |
|
Product type |
SSD enclosure |
|
Product colour |
Black |
|
Material |
Aluminium, Plastic |
|
LED indicators |
Activity, Power |
|
Performance |
|
Data transfer rate |
10 Gbit/s |
|
Chipset |
Realtek - RTL9210B |
|
UASP support |
Yes |
|
Mean time between failures (MTBF) |
112000 h |
|
Power |
|
Power source type |
USB |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-10 - 65 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Weight & dimensions |
|
Width |
128 mm |
|
Depth |
40 mm |
|
Height |
14 mm |
|
Weight |
81.6 g |
|
Package width |
154 mm |
|
Package depth |
106 mm |
|
Package height |
35 mm |
|
Package weight |
193.4 g |
|

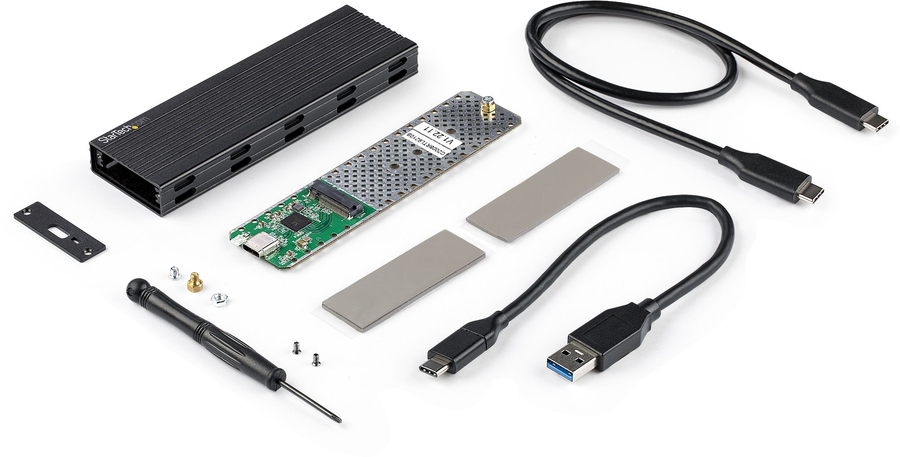

Packaging content |
|
Cables included |
USB Type-A to USB Type-C, USB Type-C to USB Type-C |
|
Screws included |
Yes |
|
Screwdriver included |
Yes |
|
Manual |
Yes |
|
Technical details |
|
Sustainability certificates |
CE, RoHS |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
Master (outer) case width |
385 mm |
|
Master (outer) case length |
485 mm |
|
Master (outer) case height |
260 mm |
|
Products per master (outer) case |
60 pc(s) |
|
