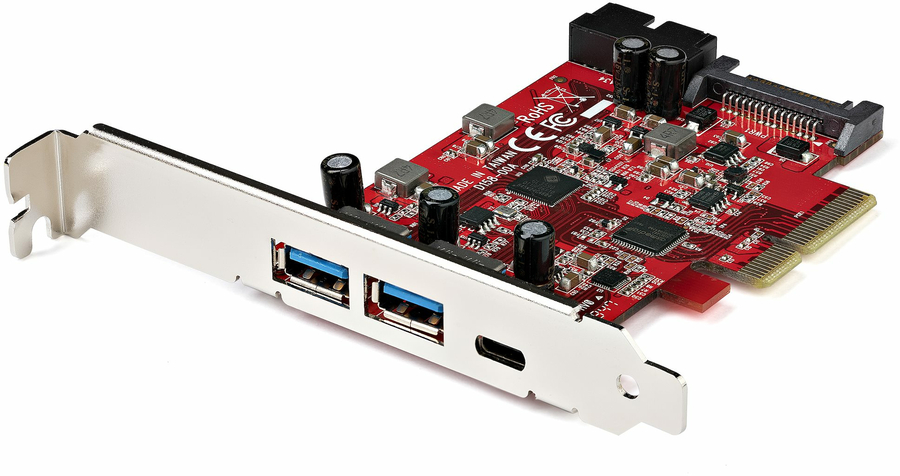

StarTech 5-Port USB PCIe Card - 10Gbps USB 3.1 Gen 2 PCIe Card w/ 1x USB-C & 2x USB-A - 1x 2 Port IDC (Internal 5Gbps USB Header Expansion) - USB C PCI Express Controller Card
|
|
Price: $95.00
Manufacturer:
StarTech
StarTech.com 5-Port USB PCIe Card - 10Gbps USB 3.1 Gen 2 PCIe Card w/ 1x USB-C & 2x USB-A - 1x 2 Port IDC (Internal 5Gbps USB Header Expansion) - USB C PCI Express Controller Card (PEXUSB312A1C1H)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
56992869
|
PEXUSB312A1C1H
|
65030888325 |
Active
|
Details
|
General Information |
|
Summary |
2x USB 3.2 Gen 2 (10Gbps) Type-A | 1x USB 3.2 Gen 2 (10Gbps) Type-C 2x1 | 2x USB 3.2 Gen 1 (5Gbps) IDC
This 5-port USB 3.2 Gen 2 (10Gbps) combo card makes it easy to add to the performance and connectivity of your computer. The USB 3.2 card offers a USB Type-C™ port (10Gbps), two traditional USB Type-A ports (10Gbps), and a motherboard header (USB 5Gbps).
By offering a range of USB port types, you can easily connect a variety of modern and legacy USB devices, both inside and outside your computer.
Because the card offers a 10Gbps USB ports, you can save time and avoid the performance bottlenecks that are often associated with other connectivity technologies.
USB 3.2 Gen 2 (USB 10Gbps) is also known as USB 3.1 (10Gbps). USB 3.2 Gen 1 (5Gbps) is also known as USB 3.0 (5Gbps).
Work faster and prepare for the future
This versatile PCI Express combo card leverages the performance potential of USB 3.2 Gen 2 (10Gbps) to help you work faster. The USB ports offer a data throughput of up to 10Gbps, so you can spend less time waiting for file transfers to complete or for access to your external peripherals.
Connect different types of USB devices

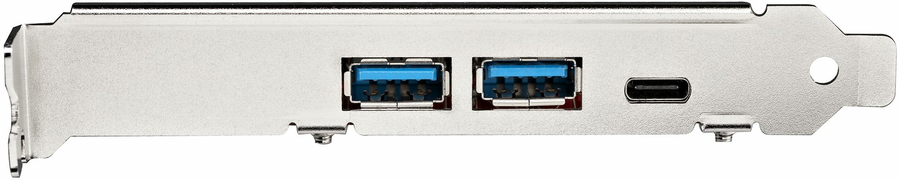

Now you can easily add a variety of types and speeds (generations) of USB ports to your desktop or server, using a single adapter card. The card features:
• One external USB-C port (10Gbps)
• Two external USB-A ports (10Gbps)
• One internal 20-pin IDC motherboard header port that can provide two internal USB-A ports (5Gbps)
With a range of port types, the card lets you bridge the gap between devices that use different connectors. You can simultaneously connect and access USB Type-A and USB Type-C devices, while using only a single PCI Express expansion slot.
By adding three types of USB ports in one combo card, you can free up space in your PC case, and eliminate the nuisance of having different cards for different USB devices.
Ideal for building or upgrading your computer
With two internal motherboard-style headers, this dynamic USB 3.2 card is perfect for upgrading or building your own computer. If your existing headers are occupied, or if you don't have any motherboard headers, you can connect front panel hubs or card readers using this versatile alternative to costly motherboard or computer upgrades.
Connect your older USB devices
Connecting your older peripherals isn't a problem. This 5-port USB 3.2 card is backward compatible with legacy USB 3.2 Gen 1, 2.0 and 1.1 devices, so you can eliminate the added expense and aggravation of purchasing new devices.
PEXUSB312A1C1H is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: The card does not support DP alt mode or USB Power Delivery.
The StarTech.com Advantage
|
|
Ports & interfaces |
|
Host interface |
PCIe |
|
Output interface |
USB 3.2 Gen 2 (3.1 Gen 2) |
|
Expansion card standard |
PCIe 3.0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
|
Internal SATA ports quantity |
1 |
|
Design |
|
Internal |
Yes |
|
Product colour |
Red |
|
Mean time between failures (MTBF) |
1677495 h |
|
Features |
|
Chipset |
ASMedia - ASM3142, Genesys Logic - GL3590 |
|
Data transfer rate (max) |
10 Gbit/s |
|
UASP support |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 70 °C |
|
Storage temperature (T-T) |
-20 - 80 °C |
|
Operating relative humidity (H-H) |
15 - 90% |
|
System requirements |
|
Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
|
Mac operating systems supported |
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
|
Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019 |
|
Technical details |
|
Compliance certificates |
CE, RoHS |
|
Weight & dimensions |
|
Width |
68.9 mm |
|
Depth |
102 mm |
|
Height |
14.4 mm |
|
Weight |
60 g |
|
Packaging data |
|
Mounting brackets included |
Yes |
|
Quick installation guide |
Yes |
|
Package width |
140 mm |
|
Package depth |
175 mm |
|
Package height |
30 mm |
|
Package weight |
125 g |
|
Logistics data |
|
Harmonized System (HS) code |
84733020 |
|
Products per master (outer) case |
60 pc(s) |
|
Master (outer) case width |
370 mm |
|
Master (outer) case length |
375 mm |
|
Master (outer) case height |
500 mm |
|
