General Information |
|
Summary |

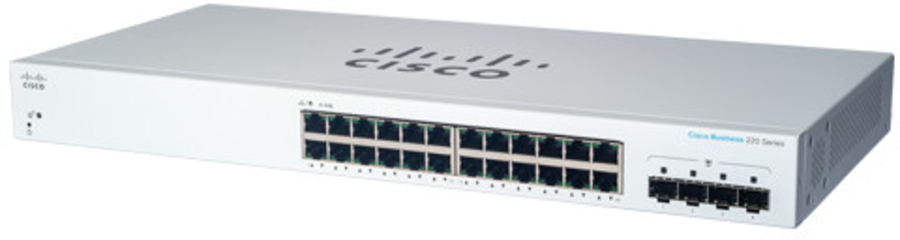

CBS220 Smart 24-port GE, 4x1G SFP |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Configuring Location Settings (CLI) |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
24 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
SFP module slots quantity |
4 |
|
Network |
|
Networking standards |
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|
10G support |
No |
|
Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
|
Head-of-line (HOL) blocking |
Yes |
|
VLAN support |
Yes |
|
Number of VLANs |
256 |
|
Data transmission |
|
MAC address table |
8192 entries |
|
Switching capacity |
56 Gbit/s |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9216 |
|
Packet buffer memory |
4.1 MB |
|
Security |
|
DHCP features |
DHCP client |
|
Access Control List (ACL) |
Yes |
|
IGMP snooping |
Yes |
|
Security algorithms |
SNMP, SNMPv2, SNMPv3 |
|
MAC address filtering |
Yes |
|
SSH/SSL support |
Yes |
|
BPDU filtering/protection |
Yes |
|
Queue scheduling algorithms |
Weighted Round Robin (WRR) |
|
Multicast features |
|
Multicast support |
Yes |
|
Multicast MAC address table |
8192 entries |
|
Design |
|
Rack mounting |
Yes |
|
LED indicators |
Yes |
|
Performance |
|
Firmware upgradeable |
Yes |
|
Power |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
10 - 90% |
|
Heat dissipation |
61.42 BTU/h |
|
Weight & dimensions |
|
Width |
440 mm |
|
Depth |
203 mm |
|
Height |
44 mm |
|
Weight |
2.75 kg |
