General Information |
|
Summary |

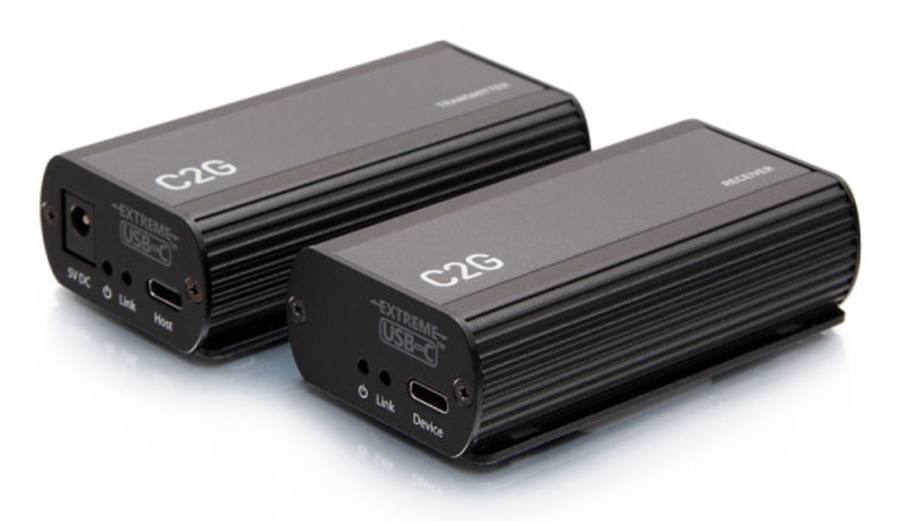

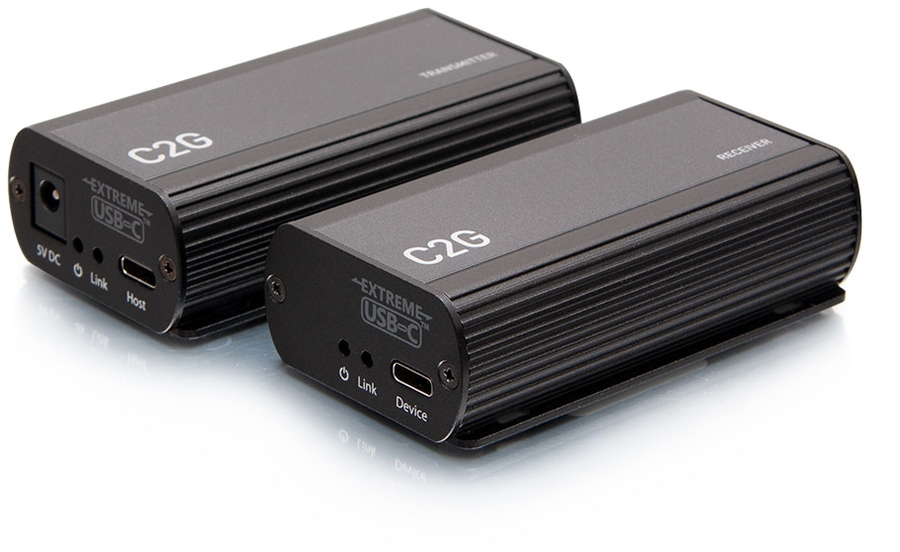

The 1-Port USB-C Extender Transmitter to Receiver Kit is a perfect solution for classrooms, conference rooms, and huddle spaces needing an innovatively simple yet powerful solution for extending USB signals beyond their native 5m length limitation.

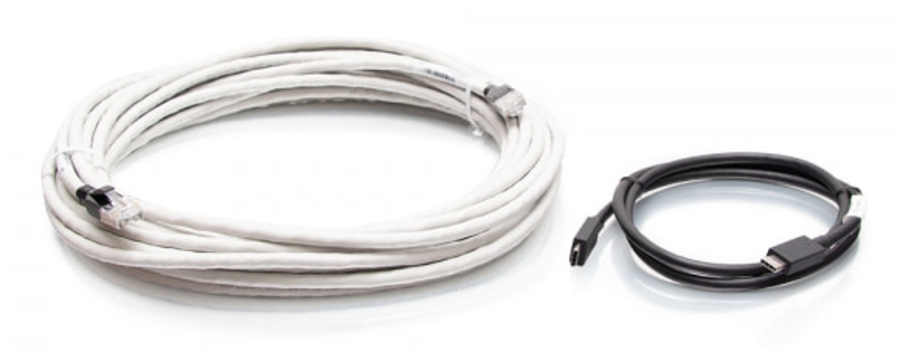

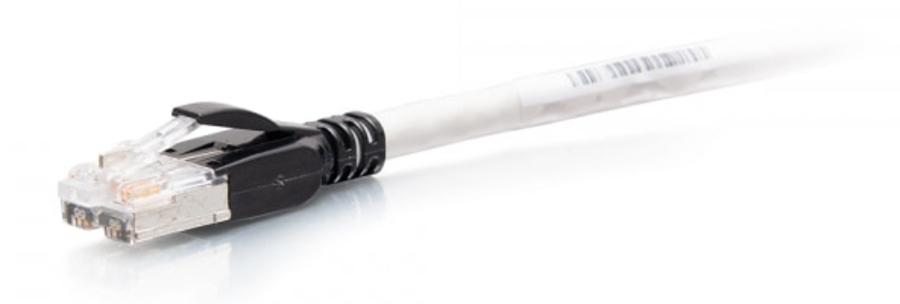

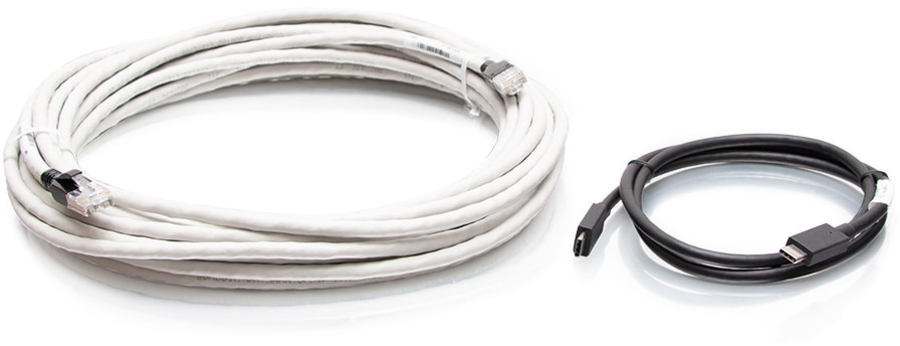

Using USB 3.2 Gen 1, this solution provides increased bandwidth and faster data transfer speeds, up to 5Gbps, at lengths up to 10m. The solution offers bus power with optional 5V 3A DC input (not included). Plug and play installation is quick and easy, with no software or drivers required. Reduce cable clutter by running the included 33ft link cable between connections. |
|
Performance |
|
Type |
Network transmitter & receiver |
|
Maximum transfer distance |
10 m |
|
Plug and Play |
Yes |
|

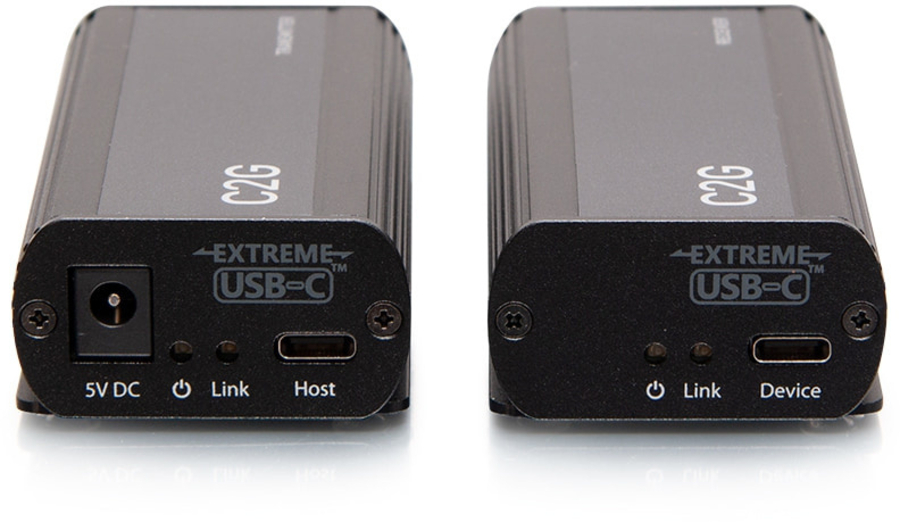

Ports & interfaces |
|

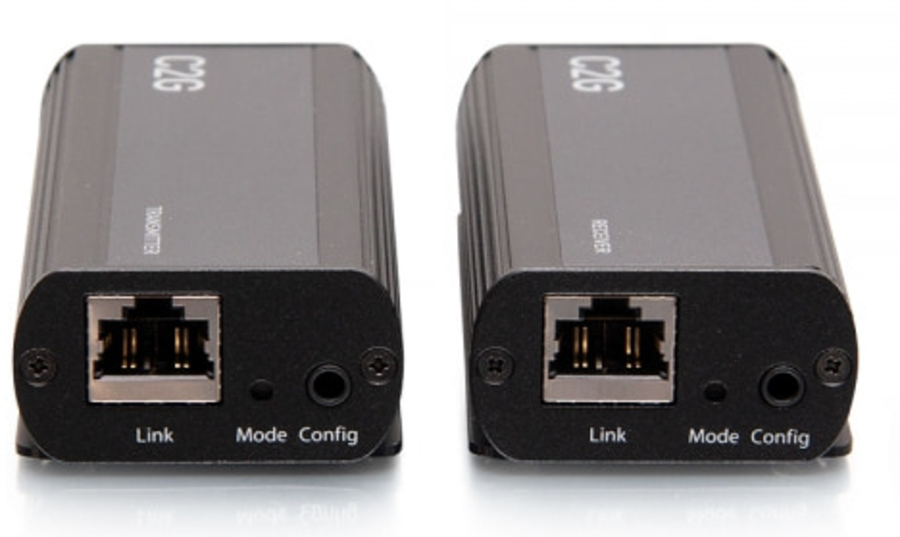

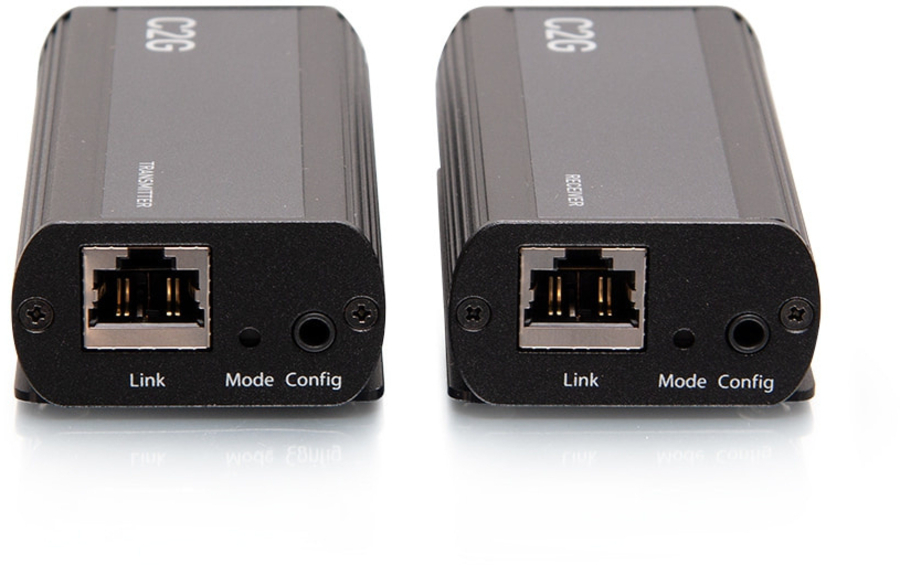

Ethernet LAN (RJ-45) ports |
2 |
|
RJ-45 ports quantity (transmitter) |
1 |
|
RJ-45 ports quantity (receiver) |
1 |
|

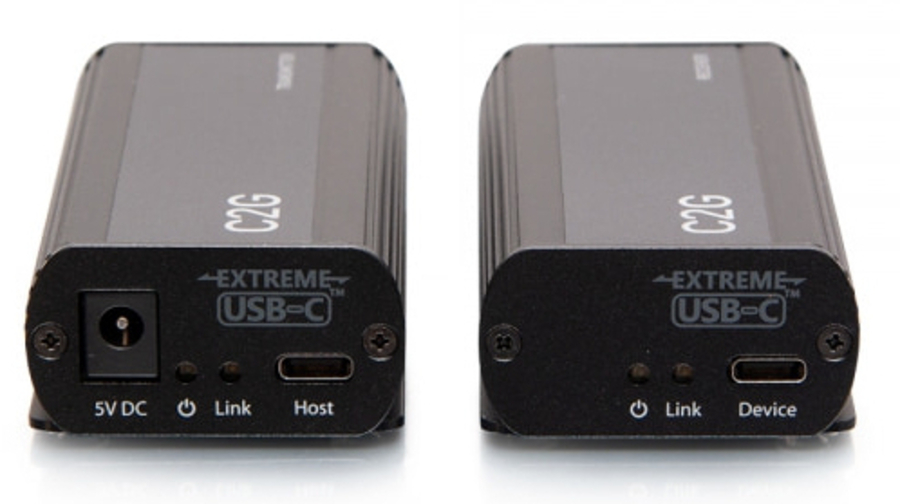

DC-in jack |
Yes |
|
Design |
|
Product colour |
Black |
|
Certification |
CE Marked, 2011/65/EU ROHS 2 |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
20 - 80% |
|
Storage relative humidity (H-H) |
10 - 90% |
|
Weight & dimensions |
|
Width |
86 mm |
|
Depth |
45 mm |
|
Height |
24 mm |
|
Weight |
1.01 kg |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
