C2G 1-Port USB-C Extender Transmitter to Receiver Kit - USB 3.2 Gen 1 (5Gbps) - Plenum Rated
|
|
Price: $939.00
Manufacturer:
C2G
1-Port USB-C Extender Transmitter to Receiver Kit - USB 3.2 Gen 1 (5Gbps) - Plenum Rated
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
57520813
|
C2G54279
|
757120542797 |
Active
|
Details
|
General Information |
|
Summary |

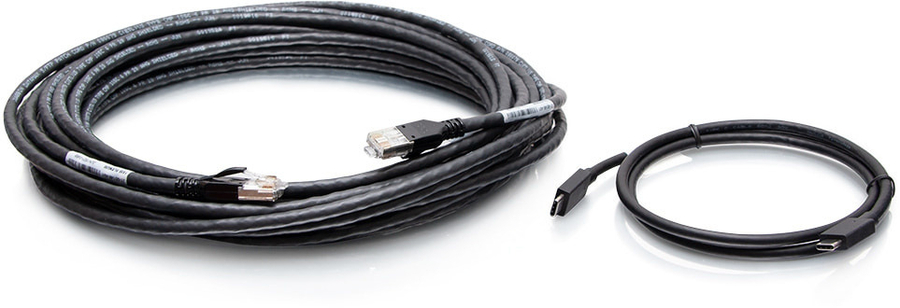

The 1-Port USB-C Extender Transmitter to Receiver Kit - Plenum-Rated is a perfect solution for classrooms, conference rooms, and huddle spaces needing an innovatively simple yet powerful solution for extending USB signals beyond their native 16.4-foot length limitation.Using USB 3.2 Gen 1, this solution provides increased bandwidth and faster data transfer speeds, up to 5Gbps, at lengths up to 33ft. The solution offers bus power with optional 5V 3A DC input (not included). Plug and play installation is quick and easy, with no software or drivers required. Reduce cable clutter by running the included 33ft Plenum-Rated link cable between connections.
**USB-C 3.2 Gen1 port is used for data only at a rate of 5Gbps (video not supported)**
USB Extender Mode Configuration
For most applications, both units of the extender should be set to Auto Mode via the DIP switch to ensure optimal plug-and-play performance. Some USB devices—such as video bars with integrated host computing—are dual-role, meaning they can function as either a USB host or device. In these cases, Auto Mode may not operate reliably. To ensure compatibility, set the extender to Device Mode at the USB device end (e.g., camera). Set the host end to Auto Mode. The host end in this case refers to the connected PC or laptop.
Recommendation: Use Auto Mode by default for the best out-of-box experience. Switch to Device Mode only when working with dual-role USB devices.
Signal Specifications
USB Speeds: SuperSpeed 5Gbps, High-Speed, Full-Speed, Low-Speed
USB Bandwidth: Up to 5Gbps
Max Number of USB Devices: 30, Including Hubs

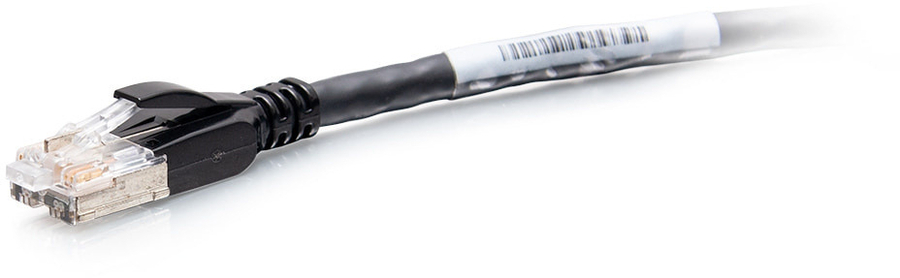

Point-to-Point Range: 32.8ft (10m) Plenum-Rated Link Cable
Physical Specifications
Operating Temperature: 0°C to 50°C; 20-80% RH (Non-Condensing)
Storage Temperature: -20°C to 70°C; 10-90% RH (Non-Condensing)
Physical Characteristics

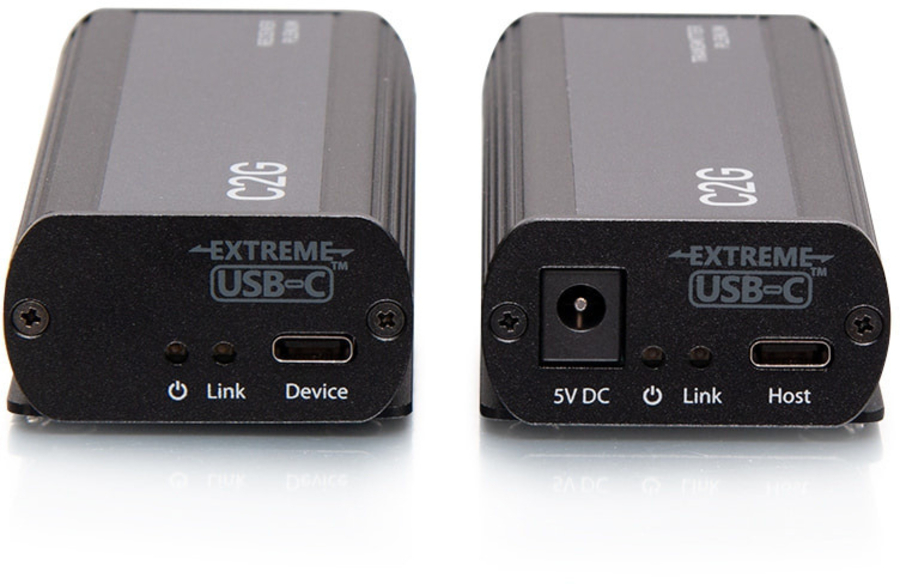

Transmitter/Receiver Port 1: 1x USB 3.2 Type-C Port

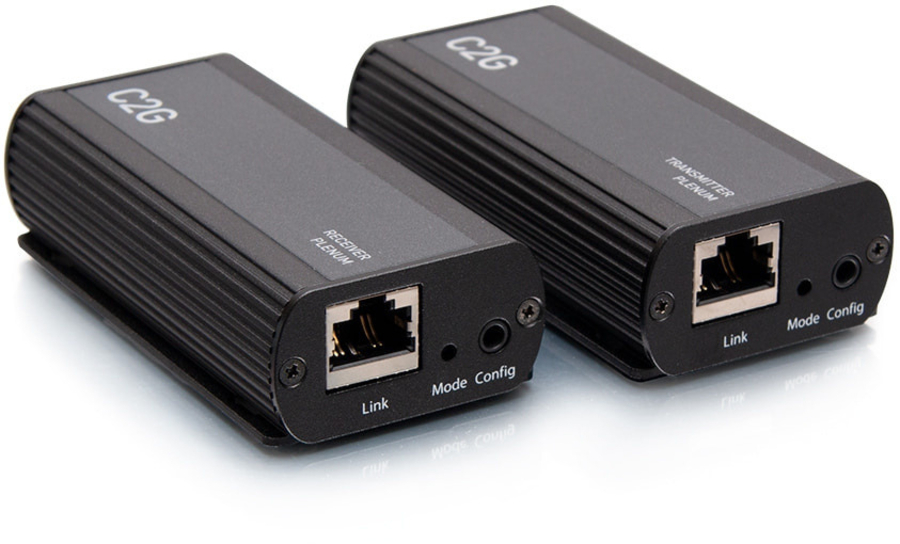

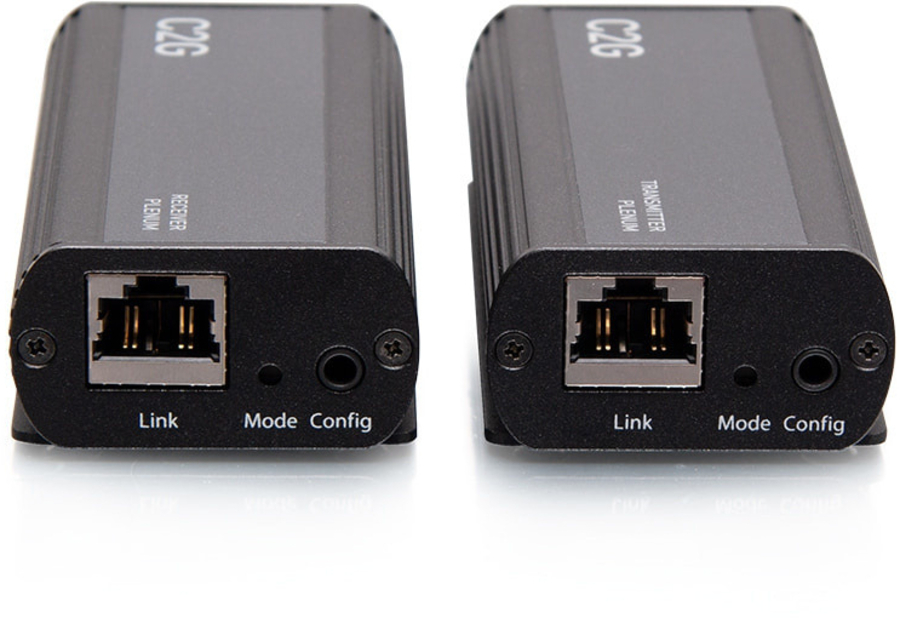

Transmitter/Receiver Port 2: 1x ARJ45 Link Port
Transmitter Power: Bus, 5V 3A DC Jack (Power Supply Sold Separately - C2G98019 & C2G98020)
Dimensions: 86.0 x 45.0 x 24.0mm
Product is CE Marked and Conforms to 2011/65/EU ROHS 2 |
|
