General Information |
|
Summary |
We always focus on how to improve the efficiency, stability and flexibility for users in any kinds of situations.

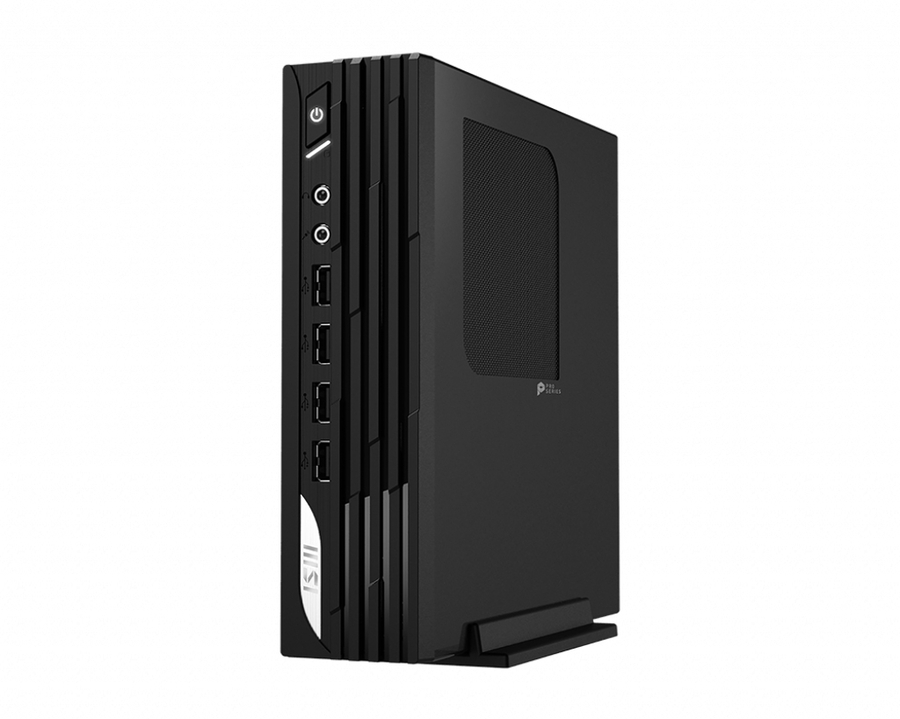

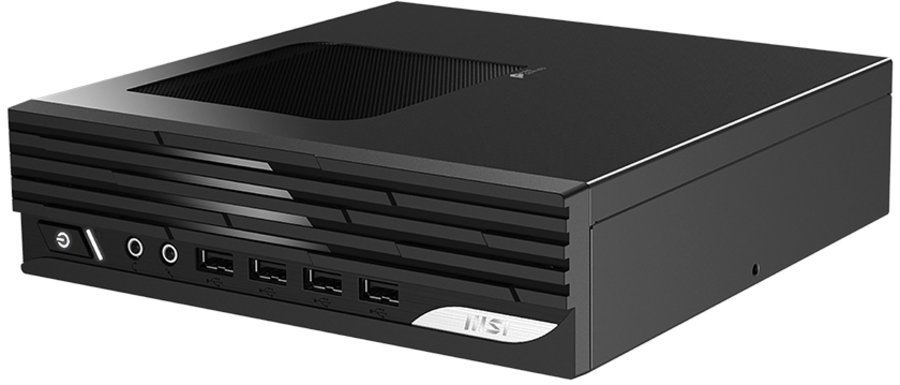

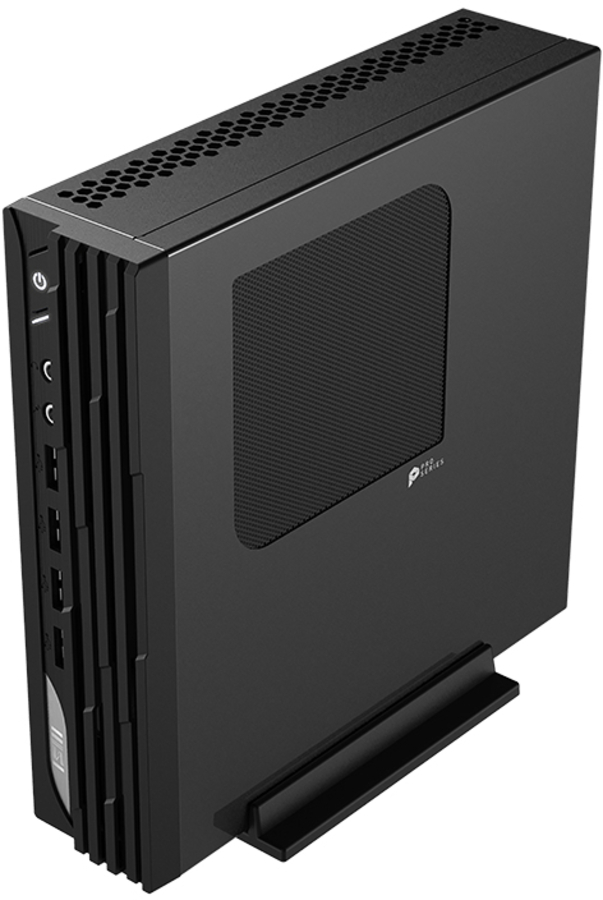

Tiny Yet Powerful
Take a huge leap in performance and experience a boosted and faster rendering for the applications in this tiny yet powerful business center that you work everyday.
Opportunity To The World for
Your E-Commerce / M-Commerce
It is indispensable to have a stable data & information platform for your growing E-commerce/ M-commerce.
Ready For
Various Scenarios
We always focus on how to improve the efficiency, stability and flexibility for users in any kinds of situations.

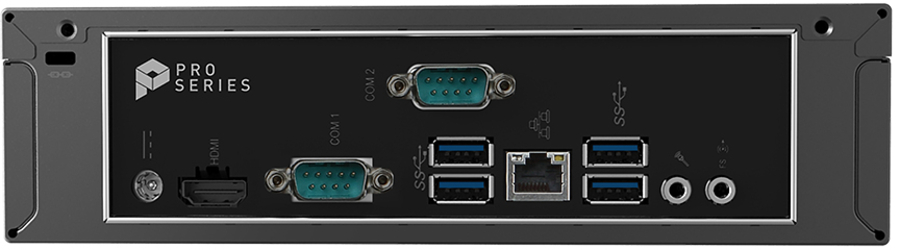

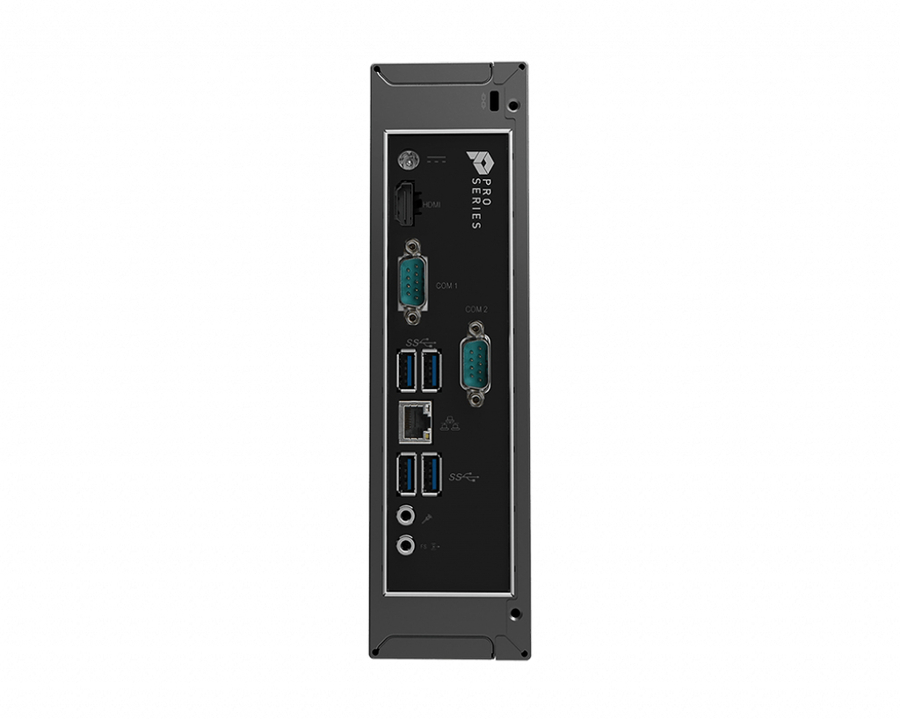

2 COM Ports Design
With multiple COM and USB ports it will let you fully connect to your POS devices such as barcode scanners, receipt printers and many more.
Its COM ports can also communicate with the programmable logic controllers (PLCs) or with other modules such as operator/HMI, motor controllers, a robot or vision system in the intelligent factory.
FW TPM SUPPORT
FW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data & passwords by encryption keys for advanced security.
Wi-Fi 6 Technology
Featuring the latest Wi-Fi 6 802.11ax with Bluetooth 5.2 version, and speed up to 2.4Gbps, which is 3x times faster than the Ethernet LAN. The latency is also 75% lower than the previous generation. With Wi-Fi 6 technology, the connectivity to the world will be unlimited.
MSI Center
The MSI Center takes optimization to the next level with A.I.; it helps to prioritize & allocate the resource on your hand to accelerate the performance of those software which you work with everyday.
It also helps you to find the photos or materials with Tag and brings the most efficient experience for your daily works.

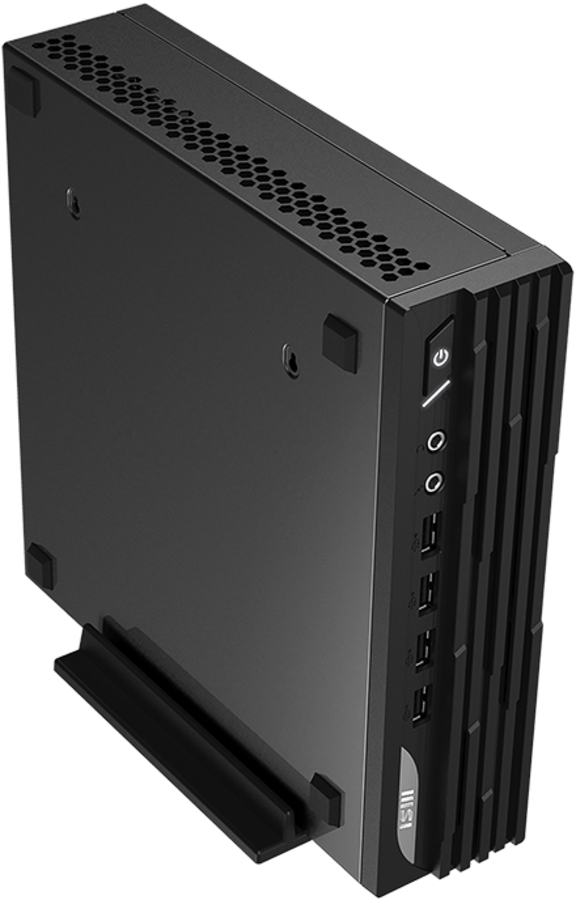

VESA Mountable Design
The VESA Mountable design allows you to hook up PRO DP21 anywhere you like that not only improves the flexibility while working with it but also let users have a good space management at home or in the office.
Easy Maintenance
Users can easily upgrade one M.2 SSD, two 2.5” HDD/SSD and two DIMMs of memory by disassembling the side covers.
Make PRO DP21 an even flexible desktop and also reduce the time wasting on upgrading.

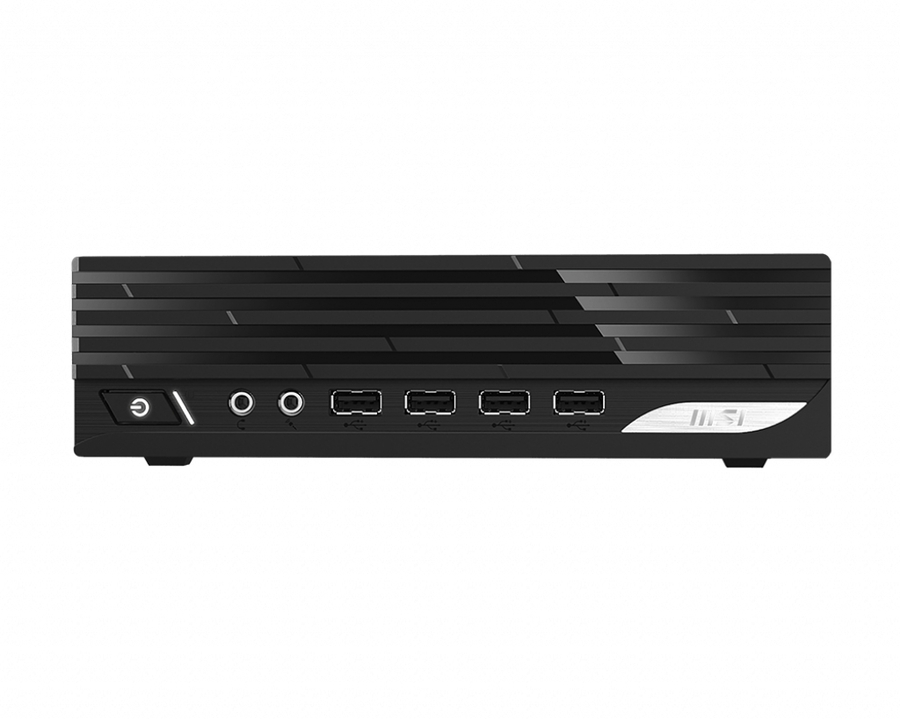

Various IO Ports
With a various array of I/O ports, it can connect all devices you need at the same time so you can multi-task with those devices to make you work more efficiently. |
|
Processor |
|
Processor family |
Intel® Pentium® Gold |
|
Processor manufacturer |
Intel |
|
Processor model |
G6405 |
|
Processor frequency |
4.1 GHz |
|
Processor cores |
2 |
|
Processor cache |
4 MB |
|
Memory |
|
Internal memory |
4 GB |
|
Maximum internal memory |
64 GB |
|
Internal memory type |
DDR4-SDRAM |
|
Memory clock speed |
3200 MHz |
|
Storage |
|
Total storage capacity |
120 GB |
|
Optical drive type |
No |
|
Storage media |
SSD |
|
Total SSDs capacity |
120 GB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
120 GB |
|
SSD form factor |
M.2 |
|
Card reader integrated |
No |
|
Graphics |
|
Discrete graphics card |
No |
|
On-board graphics card |
Yes |
|
Discrete graphics card model |
Not available |
|
On-board graphics card model |
Intel® UHD Graphics 610 |
|
On-board GPU manufacturer |
Intel |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
|
WLAN controller manufacturer |
Intel |
|
WLAN controller model |
Intel Dual Band Wireless-AC 9462 |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.1 |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
4 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
Thunderbolt 3 ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
HDMI version |
2.0 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Microphone in |
Yes |
|
Headphone outputs |
1 |
|
Line-out |
Yes |
|
Line-in |
Yes |
|
Design |
|
Chassis type |
Mini PC |
|
Product colour |
Black |
|
Volume |
2.3 L |
|
VESA mounting |
Yes |
|
Performance |
|
Product type |
Mini PC |
|
Motherboard chipset |
Intel H510 |
|
Software |
|
Operating system installed |
Windows 10 Pro |
|
Processor special features |
|
Intel 64 |
Yes |
|
Enhanced Intel SpeedStep Technology |
Yes |
|
Embedded options available |
No |
|
Intel Clear Video Technology |
Yes |
|
Intel VT-x with Extended Page Tables (EPT) |
Yes |
|
Idle States |
Yes |
|
Intel Stable Image Platform Program (SIPP) |
No |
|
Intel Trusted Execution Technology |
No |
|
Execute Disable Bit |
Yes |
|
Intel Software Guard Extensions (Intel SGX) |
Yes |
|
CPU configuration (max) |
1 |
|
Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
|
Intel Virtualization Technology (VT-x) |
Yes |
|
Power |
|
Power supply |
120 W |
|
Weight & dimensions |
|
Width |
204 mm |
|
Depth |
208 mm |
|
Height |
54.8 mm |
|
Weight |
1.27 kg |
|
Packaging content |
|
Cables included |
AC |
|
VESA mount included |
Yes |
|
Display |
|
Display included |
No |
