General Information |
|
Summary |

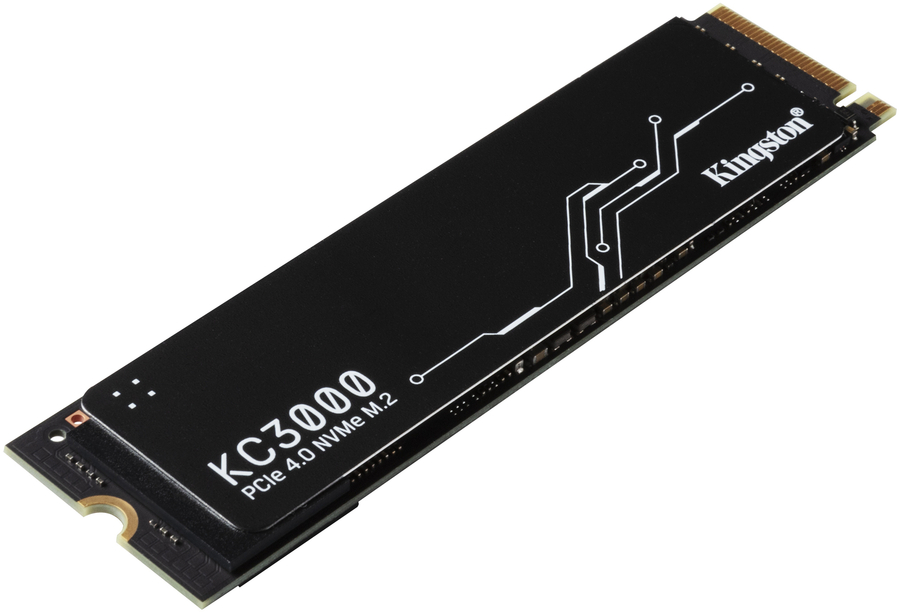

Kingston KC3000 PCIe 4.0 NVMe M.2 SSD delivers next-level performance using the latest Gen 4x4 NVMe controller and 3D TLC NAND. Upgrade the storage and reliability of your system to keep up with demanding workloads and experience better performance with software applications such as 3D rendering and 4K+ content creation. With formidable speeds up to 7,000MB/s* read/write, it ensures improved workflow in high-performance desktop and laptop PCs making it ideal for power users who require the fastest speeds on the market.
The compact M.2 2280 design fits seamlessly into motherboards and gives greater flexibility where high-power users appreciate responsiveness and superior loading times.
Full capacities available from 512GB–4096GB** to meet your data storage requirements.
PCIe 4.0 NVMe technology
Master intensive applications with speeds of up to 7,000/7,000MB/s* read/write.
Store more
Upgrade and manage storage with full capacities of up to 4096GB**.

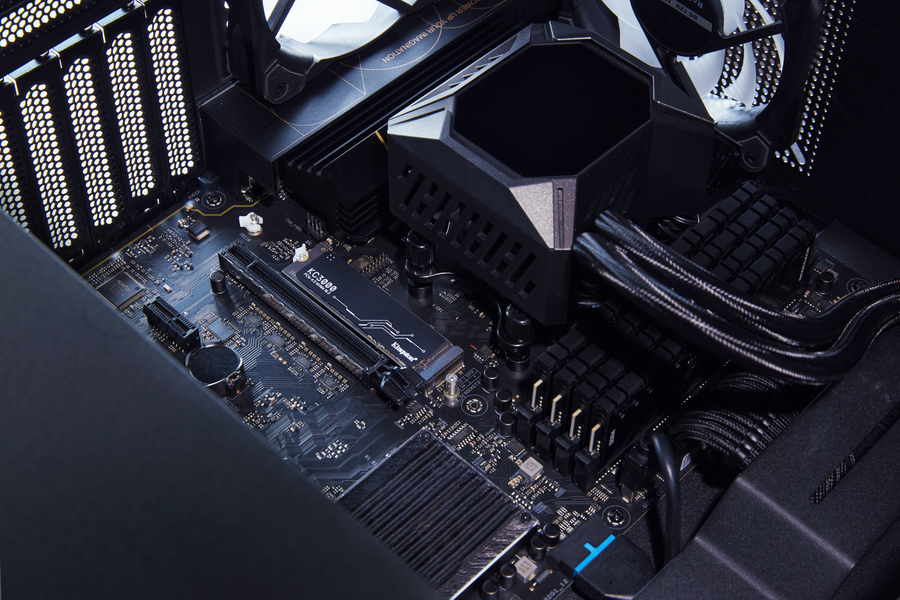

Greater flexibility
Compact M.2 design fits easily into small-form-factor (SFF) systems, desktops and laptop PCs.

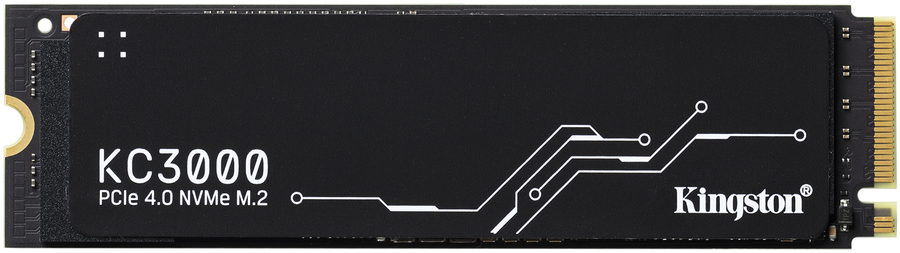

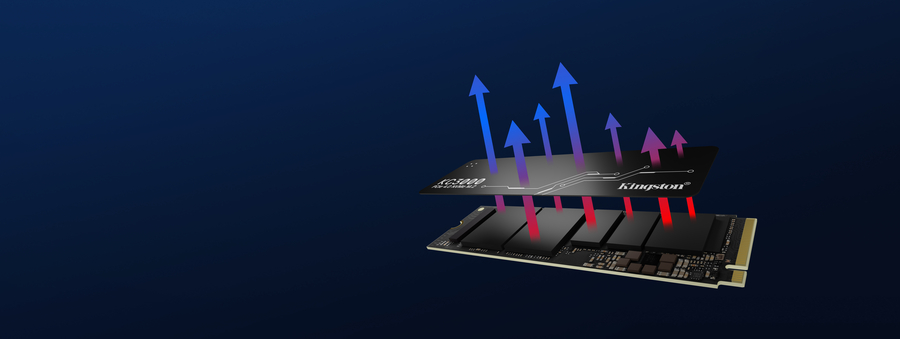

Low-profile graphene aluminium heat spreader
Exceptional thermal dissipation keeps your drive cool with maximum performance. |
|
Features |
|
SSD capacity |
2.05 TB |
|
SSD form factor |
M.2 |
|
Interface |
PCI Express 4.0 |
|
NVMe |
Yes |
|
Memory type |
3D TLC |
|
Component for |
PC/Laptop |
|
M.2 SSD size |
2280 (22 x 80 mm) |
|
Read speed |
7000 MB/s |
|
Write speed |
7000 MB/s |
|
Random read (4KB) |
1000000 IOPS |
|
Random write (4KB) |
1000000 IOPS |
|
Controller type |
Phison E18 |
|
Mean time between failures (MTBF) |
1800000 h |
|
TBW rating |
1600 |
|
Power |
|
Power consumption (read) |
2.8 W |
|
Power consumption (write) |
9.9 W |
|
Power consumption (average) |
0.36 W |
|
Power consumption (idle) |
0.005 W |
|
Weight & dimensions |
|
Width |
80 mm |
|
Depth |
22 mm |
|
Height |
3.5 mm |
|
Weight |
9.7 g |
|
Packaging data |
|
Package width |
129.5 mm |
|
Package depth |
8.38 mm |
|
Package height |
184.2 mm |
|
Package weight |
34.03 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 70 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Other features |
|
Cooling type |
Heatsink |
|
Logistics data |
|
Country of origin |
China, Taiwan |
|
Master (outer) case width |
135.9 mm |
|
Master (outer) case length |
203.2 mm |
|
Harmonized System (HS) code |
84717070 |
|
Master (outer) case height |
69.8 mm |
|
Master (outer) case gross weight |
418.29 g |
|
Products per master (outer) case |
10 pc(s) |
