ALOGIC Thunderbolt 4 BLAZE Hub

Home :: I/O Devices ::


Regularly: $202.00
On Sale: $193.92    Sale Ends: April 12th, 2024

Manufacturer: ALOGIC

Thunderbolt 4 BLAZE Hub

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
57584961 TB4H3TB 9350784023896 Active

Details

General Information
Summary Thunderbolt 4 Blazing Performance

Designed for when speed and performance matter, the hub provides a massive 40Gbps bandwidth for connecting external displays and high-speed peripherals such as external hard drives. Unlike existing Thunderbolt devices which only provide a single Thunderbolt downstream port, the ALOGIC BLAZE hub can connect up to 3x downstream Thunderbolt 4 / USB4.0 peripherals and offers unparalleled productivity for creative professionals.

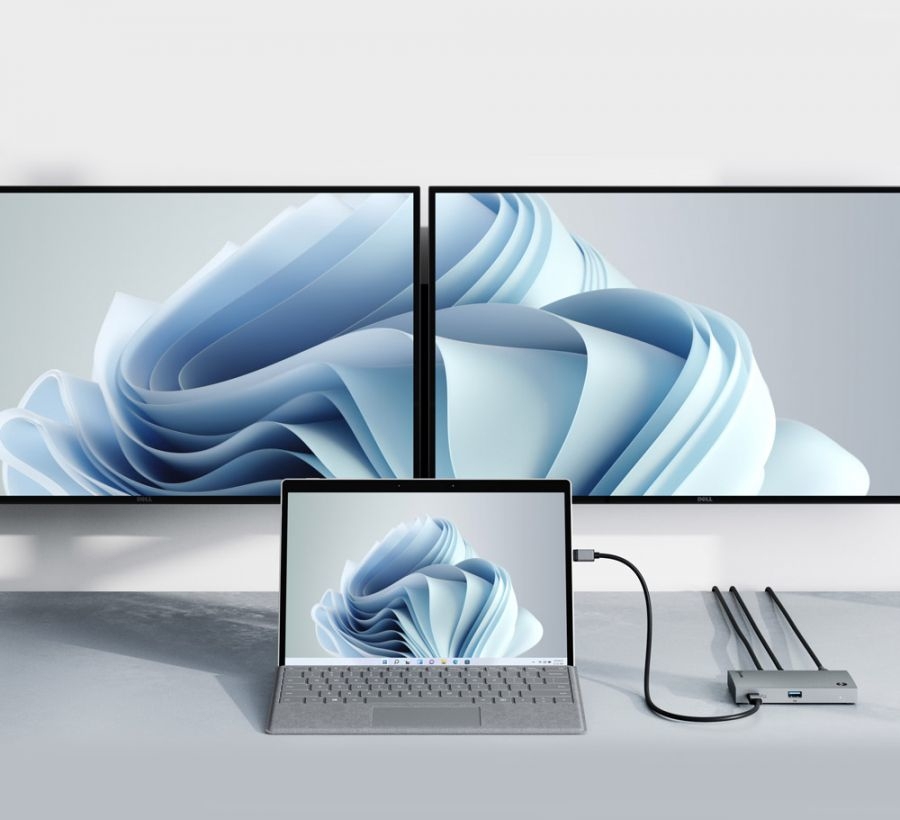

Dual Ultra-High Definition Display: 4K@60Hz

The BLAZE hub provides dual monitor support for Thunderbolt equipped host computers and single monitor support for hosts connected using USB as follows:
- Thunderbolt 3 or 4:Dual 4K monitors at 60Hz*
- USB-C USB 3.x:Single 4K monitor at up to 60Hz†

The Thunderbolt/USB-C ports on the rear of the hub provide the video outputs and are designed to connect directly to late model monitors equipped with a USB-C video input. The hub can also be connected to monitors with legacy HDMI and DisplayPort inputs using USB-C video adapters or video cables (available separately).

Single Cable Simplicity –60W Charging

This hub truly does it all –and all over a single cable.In addition to transferring data and video over a single connection to the computer, the hub can also provide up to 60W of power to charge laptops using USB Power Delivery technology. This is sufficient to power the majority of mainstream laptops.
Ports & interfaces
Ports quantity 4
Host interface Thunderbolt 4
Hub interfaces Thunderbolt 4, USB 3.2 Gen 2 (3.1 Gen 2) Type-A
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
Thunderbolt 4 ports quantity 3
DC-in jack Yes
Features
Data transfer rate 40000 Mbit/s
Maximum refresh rate 60 Hz
Supported graphics resolutions 3840 x 2160
Product colour Black, Grey
Housing material Acrylonitrile butadiene styrene (ABS), Aluminium
HD type 4K Ultra HD
LED indicators Yes
Plug and Play Yes
Power
Power supply type AC
Power consumption (max) 60 W
Power supply 110 W
Output current 1.5 A
Weight & dimensions
Width 73 mm
Depth 118 mm
Height 17.4 mm
Packaging data
Quantity per pack 1 pc(s)
Packaging content
AC adapter included Yes
Included power plug types AU, EU, UK, US
Cables included AC
Manual Yes

Multimedia

Multimedia Items
leaflet (leaflet)
