General Information |
|
Summary |
Ultracompact mini PC with 10th Gen Intel® Core processors, up to 64GB DDR4 RAM, M.2 SSD, Thunderbolt 3, Wi-Fi 6, Windows 10 and USB 3.1 Gen 2 Type-C
Easy modification, maximum possibilities

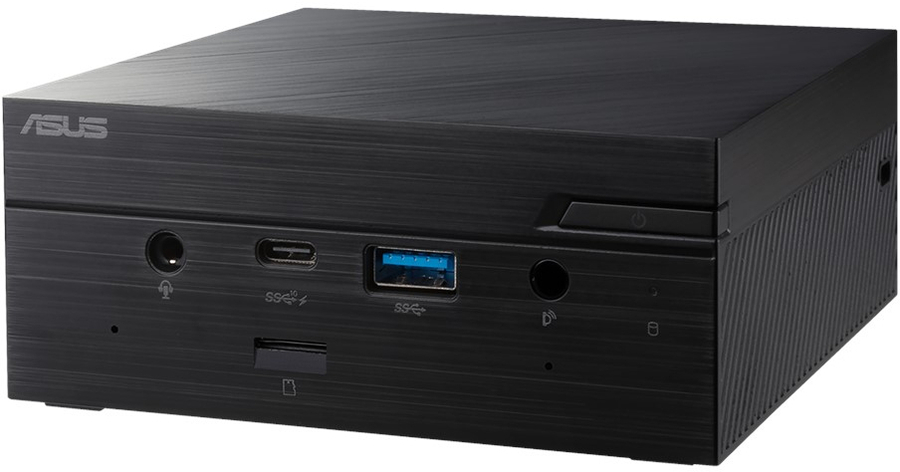

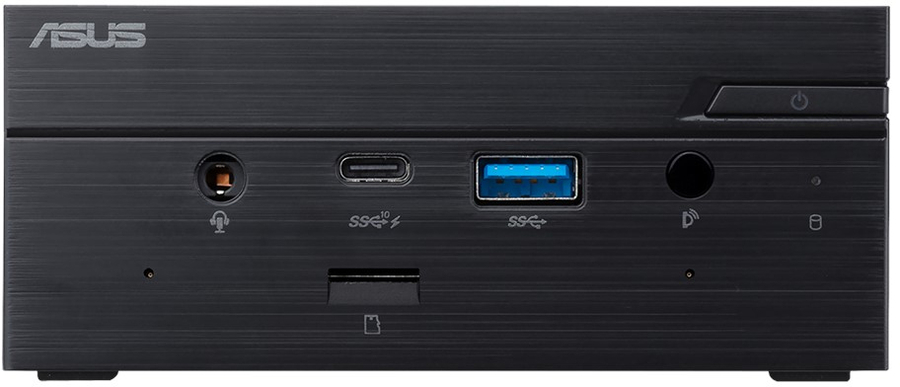

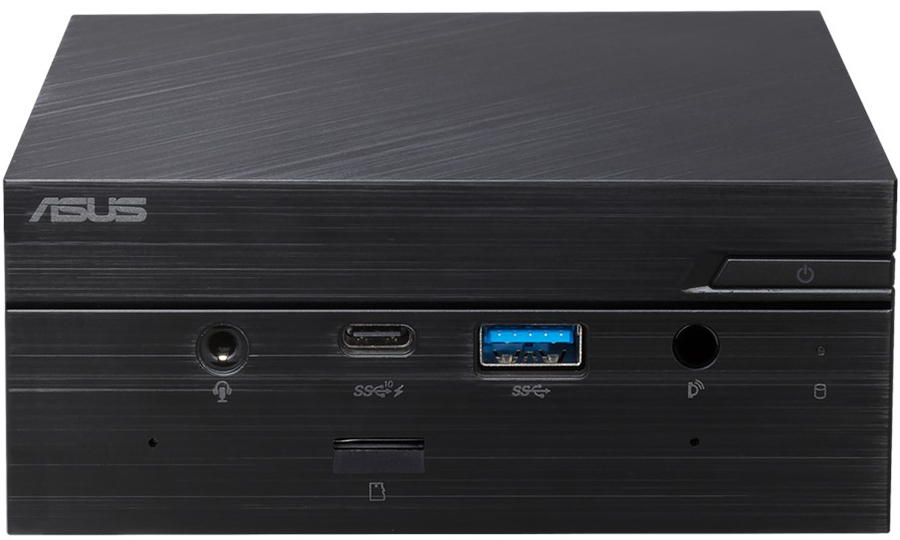

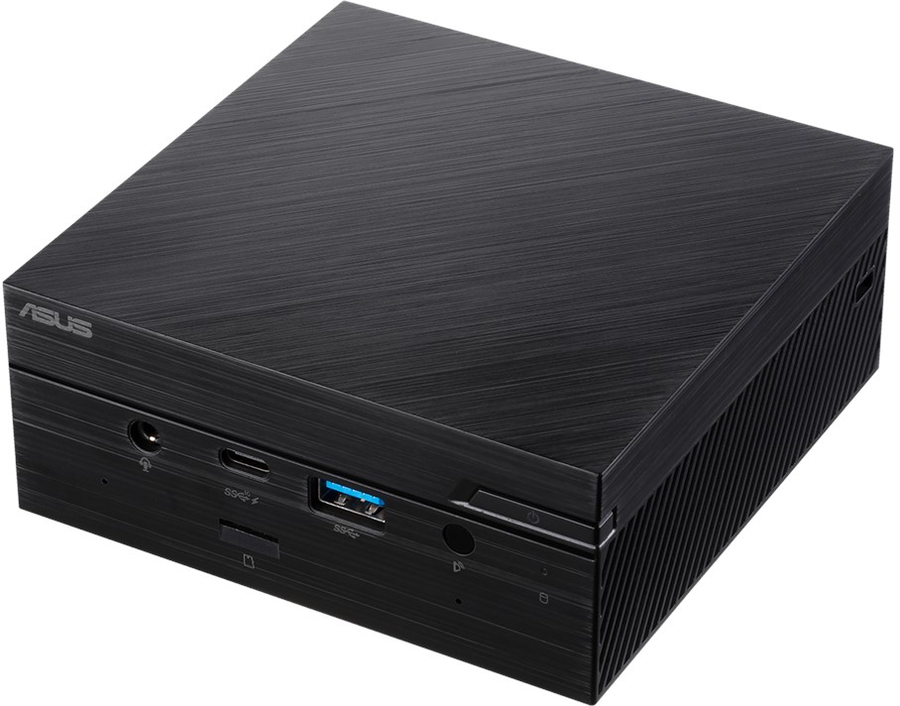

ASUS Mini PC PN62 is an ultracompact computer that delivers powerful performance for a wide variety of home and business applications. Featuring the latest 10th Generation Intel® Core™ processors and support for high-speed 2666 MHz DDR4 memory, Mini PC PN62 is ready to take on demanding workloads, yet its diminutive size takes up minimal space on a desk and makes it suited for applications where traditional PCs won't fit, such as for digital signage or in a home theater. Wi-Fi 6 (802.11ax) networking ensures stable, high-speed data transfers, even in crowded networking environments, and a USB-C port with Power Delivery (PD) supports data transfer, power and DisplayPort functionality over a single cable. Mini PC PN62 also supports Microsoft Cortana via dual-array front microphones for convenient voice control and features an infrared (IR) sensor, letting you control applications via remote control.
Upgrade-friendly

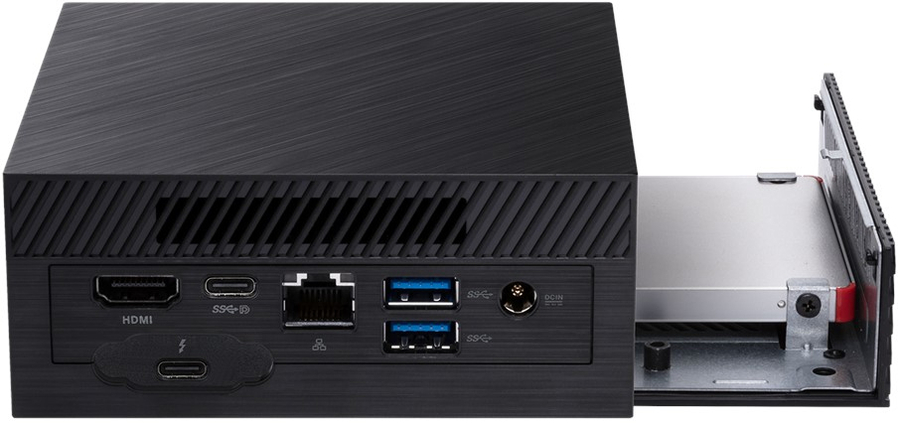

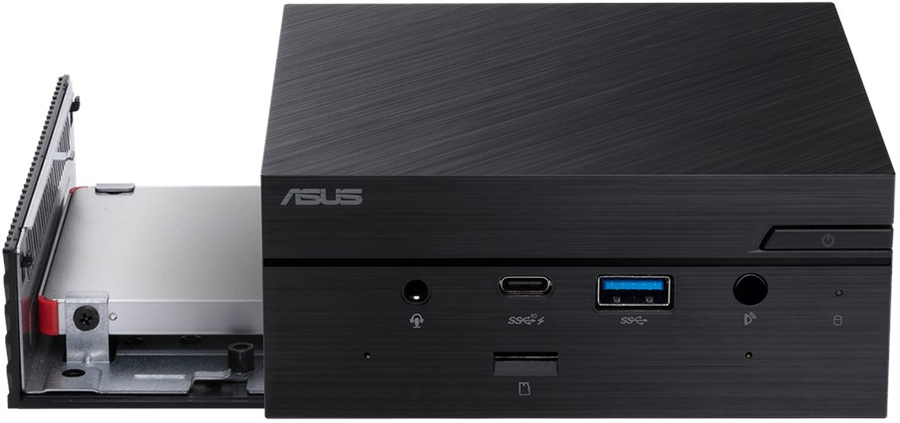

A convenient sliding chassis design lets you add or upgrade an M.2 SSD, 2.5-inch HDD or SSD, or memory in two easy steps using just a screwdriver. A bare-bones* option is also available, giving you maximum flexibility to customize your system.
Dual storage design
ASUS Mini PC PN62 fits one Intel® Optane™ Memory or M.2 SSD, and a 2.5-inch HDD, letting you create your own custom storage solution with the balance of speed and capacity to fit your needs.
Modern, space-saving design

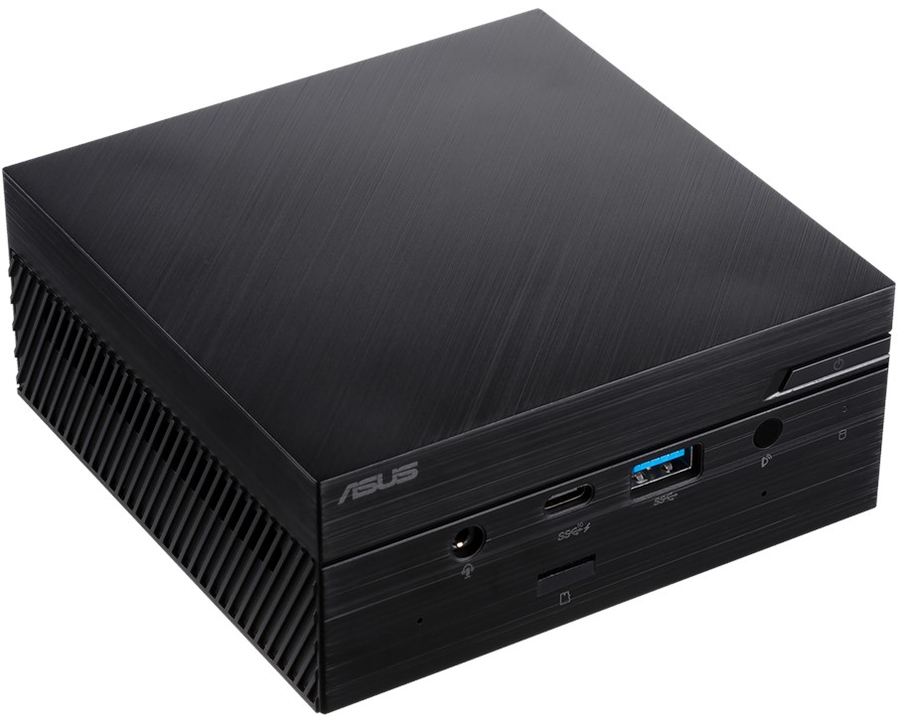

With a modern design featuring sleek lines and a stylish, brushed finish, ASUS Mini PC PN62 easily blends into home, office and retail environments. Compact and lightweight at 115mm x 115mm x 49mm with a 0.62-liter volume, it can be placed almost anywhere and even attached to the back of a display with a VESA mount for a space-saving, all-in-one solution. |
|
Processor |
|
Processor family |
Intel® Core™ i7 |
|
Processor manufacturer |
Intel |
|
Processor model |
i7-10710U |
|
Processor frequency |
1.1 GHz |
|
Processor generation |
10th gen Intel® Core™ i7 |
|
Processor cores |
6 |
|
Processor boost frequency |
4.7 GHz |
|
Processor cache |
12 MB |
|
Configurable TDP-up frequency |
1.6 GHz |
|
Configurable TDP-up |
25 W |
|
Configurable TDP-down |
12.5 W |
|
Configurable TDP-down frequency |
0.8 GHz |
|
Memory |
|
Internal memory |
16 GB |
|
Maximum internal memory |
64 GB |
|
Internal memory type |
DDR4-SDRAM |
|
Memory slots |
2x SO-DIMM |
|
Memory clock speed |
2666 MHz |
|
Storage |
|
Total storage capacity |
512 GB |
|
Optical drive type |
No |
|
Storage media |
SSD |
|
Total SSDs capacity |
512 GB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
512 GB |
|
Graphics |
|
Discrete graphics card |
No |
|
On-board graphics card |
Yes |
|
Discrete graphics card model |
Not available |
|
On-board graphics card model |
Intel® UHD Graphics |
|
On-board GPU manufacturer |
Intel |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Cabling technology |
10/100/1000Base-T(X) |
|
Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
|
Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
|
WLAN controller manufacturer |
Intel |
|
Antenna type |
2x2 |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.0 |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
|
Thunderbolt 3 ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Headphone outputs |
1 |
|
DC-in jack |
Yes |
|
Design |
|
Chassis type |
Mini PC |
|
Product colour |
Black |
|
Placement supported |
Horizontal |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Performance |
|
Product type |
Mini PC |
|
Audio chip |
Realtek ALC3236-VB2 |
|
Software |
|
Operating system installed |
Windows 10 Pro |
|
Operating system architecture |
64-bit |
|
Processor special features |
|
Intel 64 |
Yes |
|
Enhanced Intel SpeedStep Technology |
Yes |
|
Embedded options available |
No |
|
Intel Clear Video Technology |
Yes |
|
Intel VT-x with Extended Page Tables (EPT) |
Yes |
|
Intel TSX-NI |
No |
|
Idle States |
Yes |
|
Intel Stable Image Platform Program (SIPP) |
No |
|
Intel Trusted Execution Technology |
No |
|
Execute Disable Bit |
Yes |
|
Intel Flex Memory Access |
Yes |
|
Intel Software Guard Extensions (Intel SGX) |
Yes |
|
CPU configuration (max) |
1 |
|
Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
|
Intel Virtualization Technology (VT-x) |
Yes |
|
Power |
|
Power supply input voltage |
19 V |
|
Certificates |
|
Certification |
BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
|
Weight & dimensions |
|
Width |
115 mm |
|
Depth |
115 mm |
|
Height |
49 mm |
|
Weight |
700 g |
|
Display |
|
Display included |
No |
