General Information |
|
Summary |

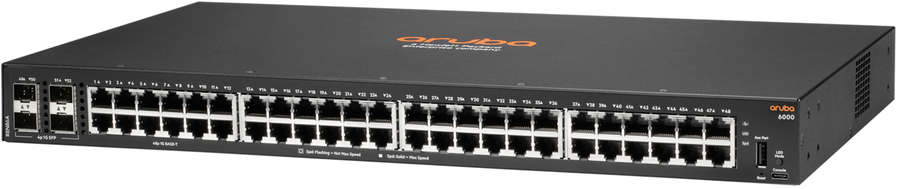

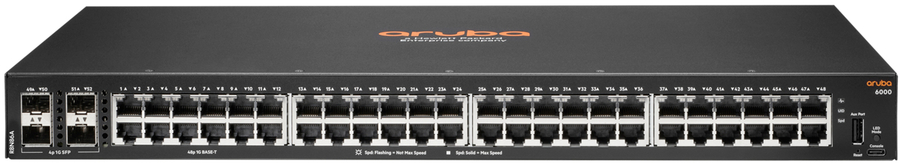

Aruba 6000 48G 4SFP Swch |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L3 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Cloud-managed |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
48 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
SFP module slots quantity |
4 |
|
Console port |
USB |
|
Network |
|
Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
|
10G support |
No |
|
Port mirroring |
Yes |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Spanning tree protocol |
Yes |
|
VLAN support |
Yes |
|
Data transmission |
|
MAC address table |
8192 entries |
|
Switching capacity |
104 Gbit/s |
|
Throughput |
77.3 Mpps |
|
Latency (1 Gbps) |
1.9 µs |
|
Jumbo frames support |
Yes |
|
Packet buffer memory |
12.38 MB |
|
Security |
|
DHCP features |
DHCP client |
|
Access Control List (ACL) |
Yes |
|
IGMP snooping |
Yes |
|
Authentication |
MAC-based authentication |
|
Multicast features |
|
Multicast support |
Yes |
|
Protocols |
|
IPv4 & IPv6 features |
IPv4/IPv6 access-control list (ACL) |
|
IPv4 FIB entries |
256 |
|
IPv6 FIB entries |
128 |
|
Design |
|
Rack mounting |
Yes |
|
Stackable |
No |
|
Form factor |
1U |
|
Performance |
|
Built-in processor |
Yes |
|
Processor model |
ARM Cortex-A9 |
|
Processor frequency |
1016 MHz |
|
Memory type |
DDR3-SDRAM |
|
Internal memory |
8192 MB |
|
Flash memory |
16384 MB |
|
Power |
|
Power source |
AC |
|
Power supply included |
Yes |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Power consumption (max) |
44.2 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
No |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 45 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating relative humidity (H-H) |
15 - 95% |
|
Storage relative humidity (H-H) |
15 - 90% |
|
Weight & dimensions |
|
Width |
442 mm |
|
Depth |
247 mm |
|
Height |
44 mm |
|
Weight |
3.4 kg |
