General Information |
|
Summary |

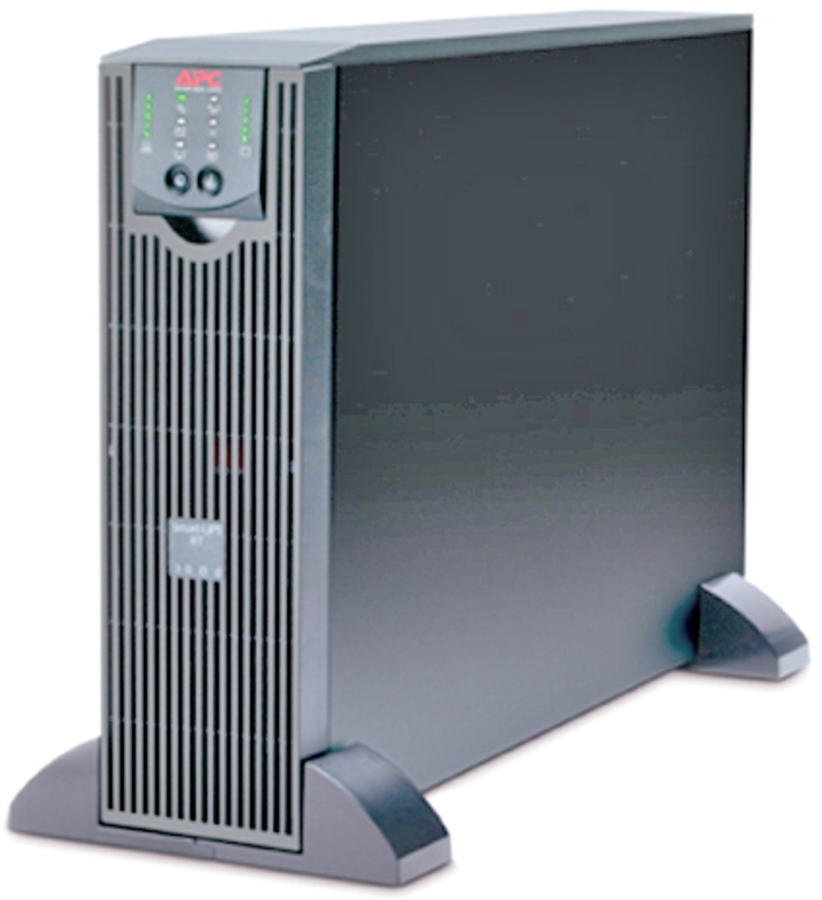

APC Smart-UPS RT, 2100 Watts / 3000 VA,Input 120V / Output 120V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model, Rack Height 3 U.
Includes: CD with software, Smart UPS signalling RS-232 cable, User Manual. |
|
Features |
|
Output power capacity |
3 kVA |
|
Output power |
2100 W |
|
Input frequency |
50/60 Hz |
|
Surge energy rating |
480 J |
|
Emergency Power Off (EPO) |
Yes |
|
Noise level |
55 dB |
|
Audible alarm(s) |
Yes |
|
Ports & interfaces |
|
AC outlet types |
NEMA 5-15R, NEMA 5–20R |
|
Battery |
|
Battery technology |
Sealed Lead Acid (VRLA) |
|
Typical backup time at full load |
14.1 min |
|
Typical backup time at half load |
33.9 min |
|
Battery recharge time |
2.5 h |
|
Design |
|
Product colour |
Black |
|
Cable length |
3.05 m |
|
LED indicators |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-15 - 45 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 15000 m |
|
Certificates |
|
Certification |
CSA,FCC Part 15 Class A,UL 1778 |
|
Weight & dimensions |
|
Weight |
54.5 kg |
|
Packaging data |
|
Package weight |
63.6 kg |
|
Logistics data |
|
Harmonized System (HS) code |
85078000 |
|
Other features |
|
Interface |
DB-9 RS-232, Smart-Slot |
|

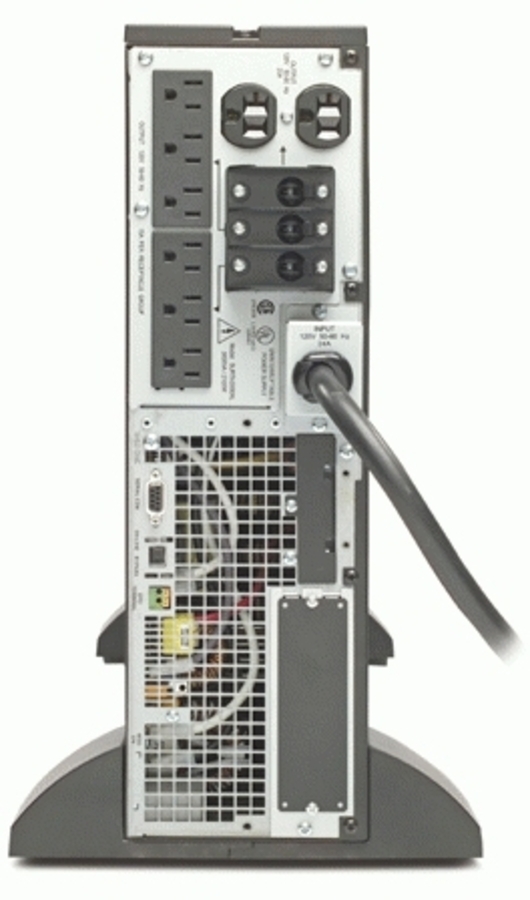

Output connections |
(6) NEMA 5-15R,
(2) NEMA 5-20R |
|
Input connection type |
NEMA L5-30P |
|
Dimensions (WxDxH) |
130 x 660 x 432 mm |
|
Nominal output voltage |
120 V |
|
Nominal input voltage |
120 V |
|
Package dimensions (WxDxH) |
603 x 980 x 347 mm |
