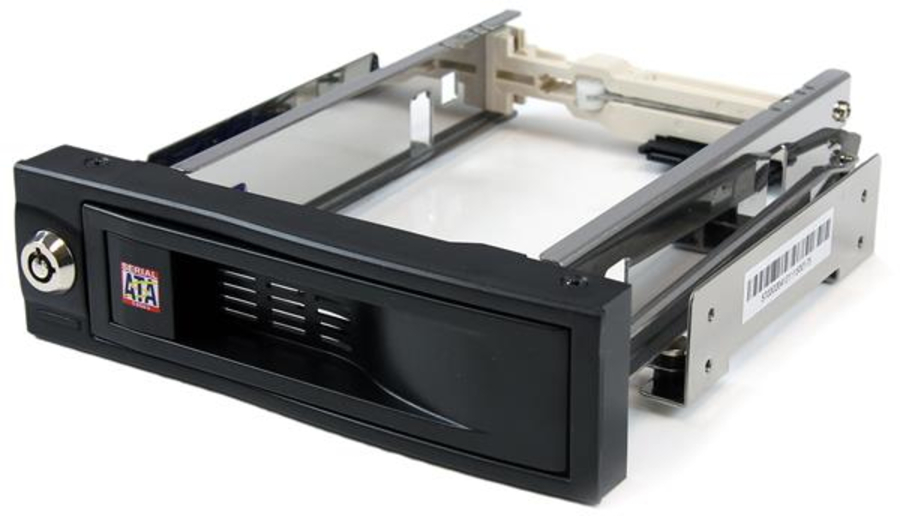

StarTech 5.25" Tray-Less SATA Hot-Swap Bay
|
|
Price: $33.00
Manufacturer:
StarTech
StarTech 5.25in Trayless Hot Swap Mobile Rack for 3.5in Hard Drive - Internal SATA Backplane Enclosure - Lockable drive bay , TAA (HSB100SATBK)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58119530
|
HSB100SATBK
|
65030821360 |
Active
|
Details
|
General Information |
|
Summary |
Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay

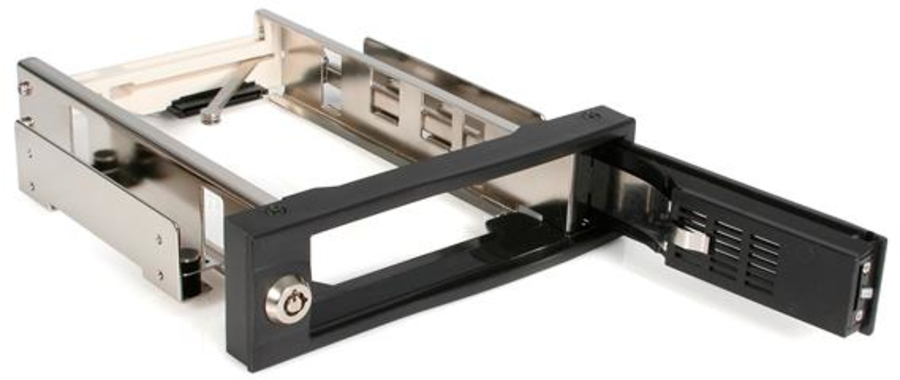

This 3.5in SATA hard drive hot-swap bay allows you to install a 3.5in SATA drive in an available/unused 5.25in drive bay. To remove the drive, it's as simple as opening the front panel door; to re-insert a drive, simply insert the drive (connector first) until the door closes.

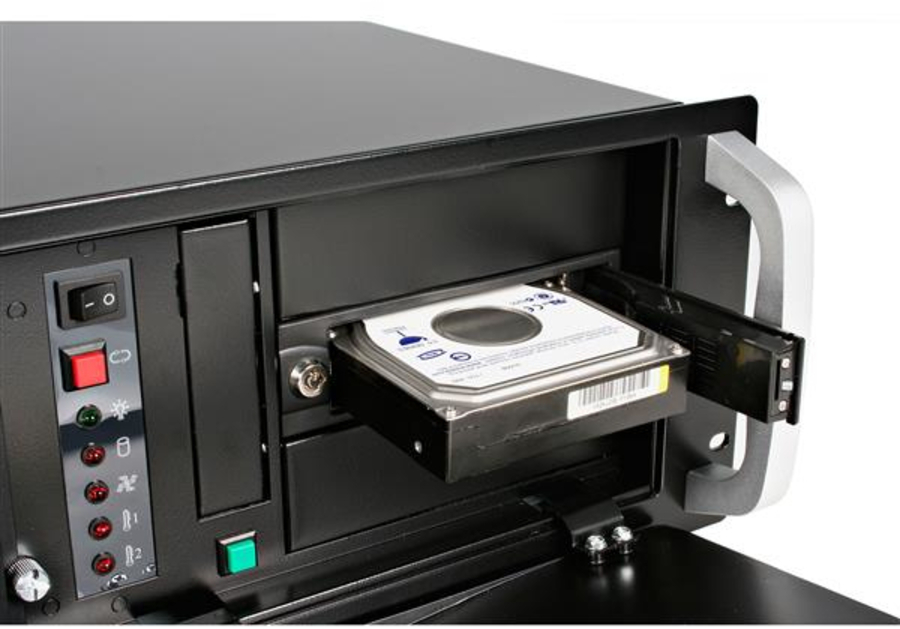

The hot swap bay offers a trayless design that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.
With support for SATA HDD speeds up to 6.0 Gbps, the mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.
Designed to provide a durable and reliable operating experience, the mobile rack features a 50,000+ insertion rating and is backed by StarTech.com's 2-year warranty. |
|
Features |
|
Size (imperial) |
13.3 cm (5.25") |
|
Type |
Bezel panel |
|
Product colour |
Black |
|
Number of HDDs supported |
1 |
|
HDD size |
3.5" |
|
HDD interface |
Serial ATA, Serial ATA II, Serial ATA III |
|
Material |
Aluminium, PU plastic |
|
Number of cycles |
50000 |
|
LED indicators |
Activity, Power |
|
Key lock |
Yes |
|
Certification |
CE, FCC, REACH |
|
Weight & dimensions |
|
Width |
149 mm |
|
Depth |
184 mm |
|
Height |
42 mm |
|
Weight |
261 g |
|
Packaging data |
|
Package width |
209 mm |
|
Package depth |
160 mm |
|
Package height |
55 mm |
|
Package weight |
366 g |
|
Packaging content |
|
Screws included |
Yes |
|
Manual |
Yes |
|
Number of lock keys included |
2 pc(s) |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Operating relative humidity (H-H) |
5 - 85% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Technical details |
|
Compliance certificates |
RoHS |
|
Logistics data |
|
Products per master (outer) case |
20 pc(s) |
|
Master (outer) case width |
443 mm |
|
Master (outer) case length |
341 mm |
|
Master (outer) case height |
295 mm |
|
Harmonized System (HS) code |
84733080 |
|
