General Information |
|
Summary |

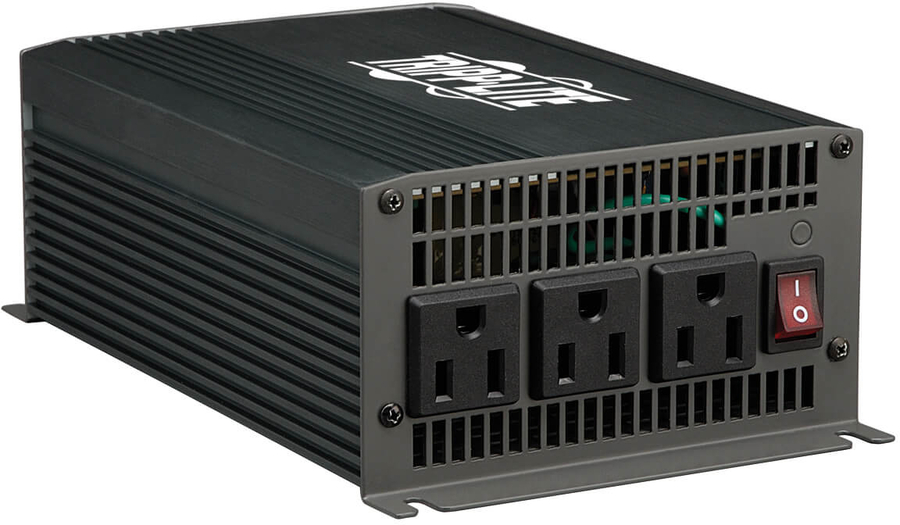

Harness your vehicle's battery to efficiently power appliances, small electronics and office equipment on the road. Continuously supplies up to 700W of 120V AC power to 3 AC outlets from any 12V battery. Featuring an ultra-compact, lightweight design with metal housing, the PV700HF is among the smallest, most rugged inverters available. |
|
Features |
|
Input voltage |
12 V |
|
Output power |
700 W |
|
Output voltage |
120 V |
|
Country of origin |
China |
|
Design |
|
LED indicators |
Yes |
|
Weight & dimensions |
|
Width |
207.5 mm |
|
Depth |
126 mm |
|
Height |
70.1 mm |
|
Weight |
1.27 kg |
|
Packaging data |
|
Package width |
256.5 mm |
|
Package depth |
160 mm |
|
Package height |
94 mm |
|
Package weight |
1.59 kg |
|
Logistics data |
|
Harmonized System (HS) code |
8504.40.9570 |
|
Master (outer) case width |
264.2 mm |
|
Master (outer) case length |
170.2 mm |
|
Master (outer) case height |
332.7 mm |
|
Master (outer) case gross weight |
4.94 kg |
|
Products per master (outer) case |
3 pc(s) |
|
Master (outer) case GTIN (EAN/UPC) |
10037332137996 |
|
Other features |
|
Dimensions (WxDxH) |
127 x 210 x 70 mm |
|
I/O ports |
3 x NEMA 5-15R |
|
Weight (imperial) |
1.27 kg (2.8 lbs) |
|
Package dimensions (W x D x H) |
158.8 x 260.4 x 101.6 mm (6.25 x 10.2 x 4") |
|
Package weight (imperial) |
1.59 kg (3.5 lbs) |
