General Information |
|
Summary |
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

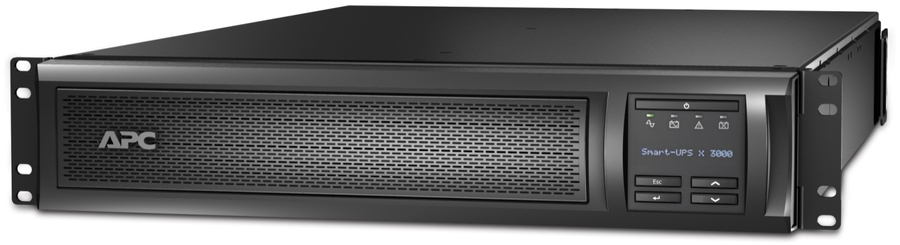

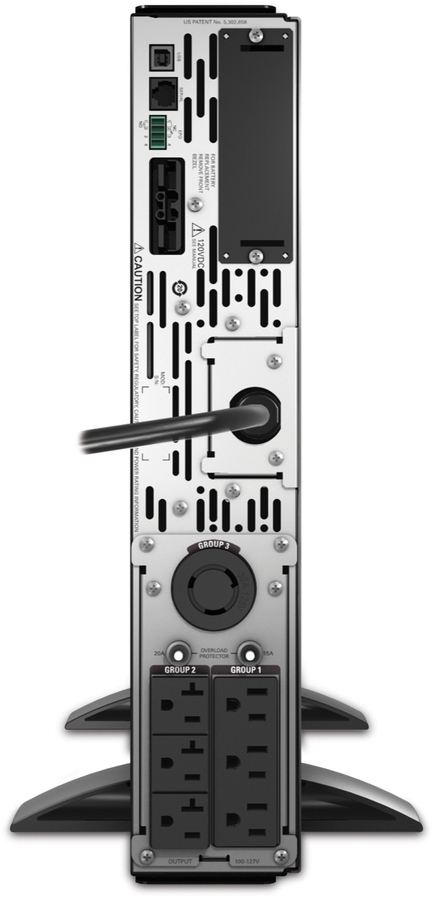

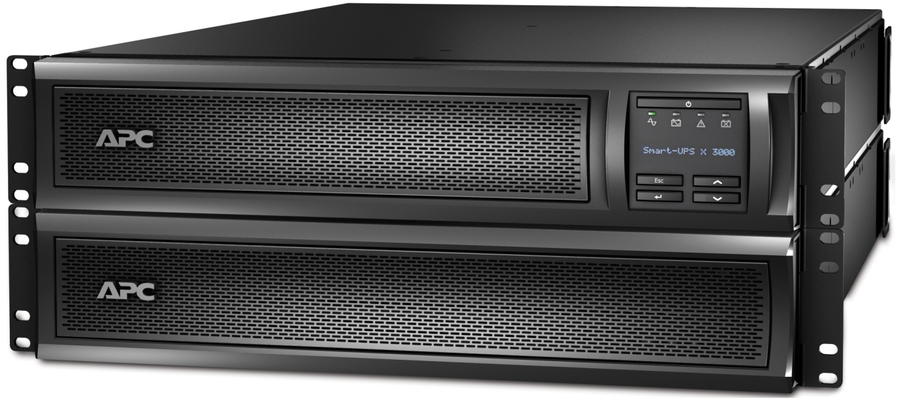

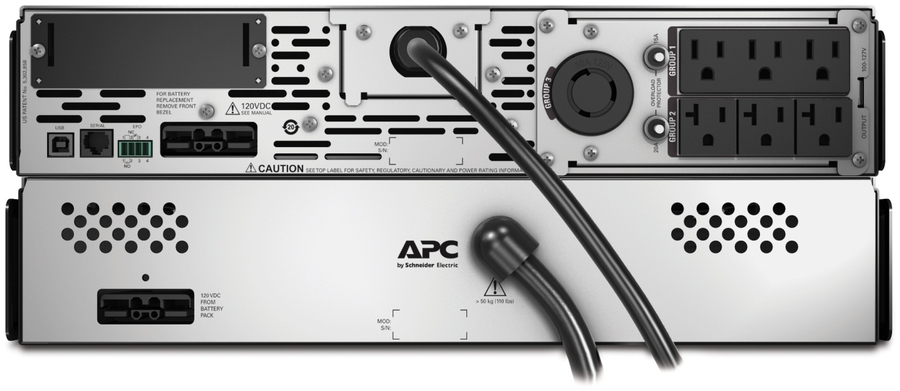

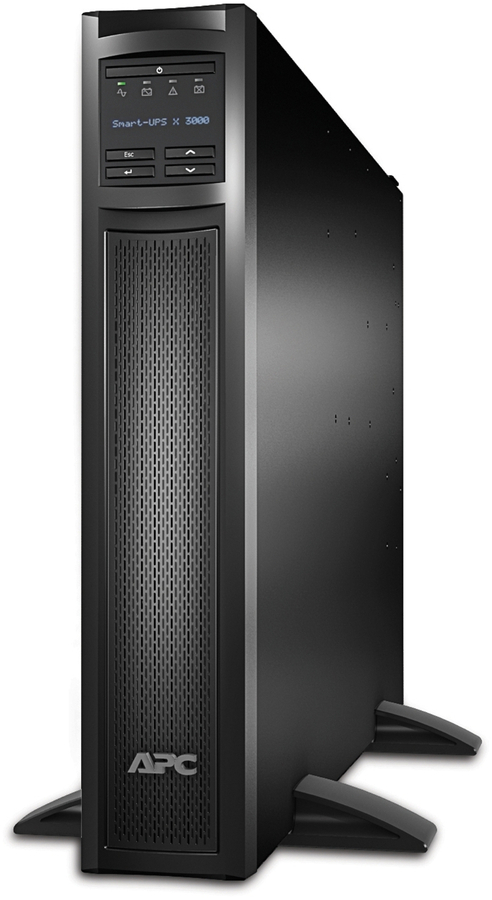

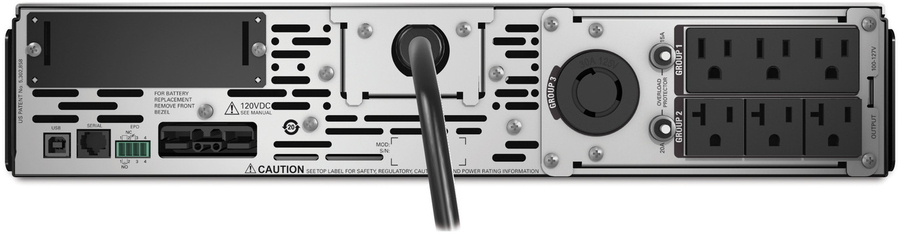

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2880VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. |
|
Features |
|
UPS topology |
Line-Interactive |
|
Output power capacity |
3 kVA |
|
Output power |
2700 W |
|
Waveform |
Sine |
|
Input operation voltage (min) |
100 V |
|
Input operation voltage (max) |
127 V |
|
Input frequency |
50/60 Hz |
|
Output operation voltage (min) |
100 V |
|
Output operation voltage (max) |
127 V |
|
Output frequency |
50/60 Hz |
|
Surge energy rating |
540 J |
|
Heat dissipation |
276 BTU/h |
|
Number of output phases |
1 |
|
Efficiency |
98% |
|
Output voltage Total Harmonic Distortion (THD) |
5% |
|
Noise level |
55 dB |
|
Surge protection |
Yes |
|
Surge protection features |
Network |
|
Audible alarm(s) |
Yes |
|
Audible alarm modes |
Alarm when on battery, Low battery alarm |
|
Ports & interfaces |
|
AC outlet types |
NEMA 5–15R, NEMA 5–20R, NEMA L5-30R |
|
AC outlets quantity |
7 AC outlet(s) |
|
USB port |
Yes |
|
Serial interface |
Yes |
|
Ethernet LAN (RJ-45) ports |
1 |
|
SmartSlot |
Yes |
|
Battery |
|
Battery technology |
Lead-Acid |
|
Typical backup time at full load |
6.15 min |
|
Battery recharge time |
3 h |
|
Design |
|
Form factor |
Rackmount/Tower |
|
Product colour |
Black |
|
Rack capacity |
2U |
|
Cable length |
2.4 m |
|
Control type |
Buttons |
|
LED indicators |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-15 - 45 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 15240 m |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Certification |
BSMI,CSA,EN 50091-2,EN 55022 A,FCC 15 A,NOM,TUV,UL 1778,VCCI A |
|
Weight & dimensions |
|
Width |
432 mm |
|
Depth |
667 mm |
|
Height |
85 mm |
|
Weight |
38.5 kg |
|
Packaging data |
|
Package width |
869 mm |
|
Package depth |
596 mm |
|
Package height |
243 mm |
|
Package weight |
45.4 kg |
|
Logistics data |
|
Export Control Classification Number (ECCN) |
EAR99 |
|
Harmonized System (HS) code |
8504.40 |
|
Other features |
|
Battery type |
RBC117 |
