General Information |
|
Summary |

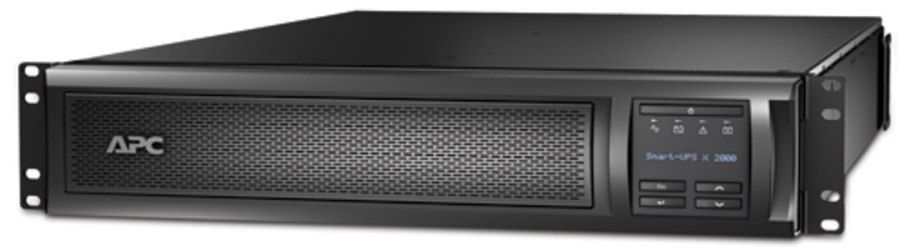

Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Outlet group control
Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).
Sequenced shutdown and restart
Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).
Load shedding
Turn off select outlet groups in a pre-determined sequence to shed less critical equipment and conserve runtime (UPSs with switched outlet groups).
APC USB communications
Enables communication with Smart-UPS RTD, SMX and SMT using the APC's historical proprietary USB usages
InfraStruXure Central compatible
Enables centralized management via APC InfraStruXure® Central. |
|
Features |
|
Output power capacity |
1.92 kVA |
|
Output power |
1800 W |
|
Input operation voltage (min) |
75 V |
|
Input operation voltage (max) |
154 V |
|
Input frequency |
50/60 Hz |
|
Output operation voltage (min) |
120 V |
|
Output operation voltage (max) |
120 V |
|
Surge energy rating |
540 J |
|
Efficiency |
98% |
|
Output voltage Total Harmonic Distortion (THD) |
5% |
|
Noise level |
55 dB |
|
Audible alarm(s) |
Yes |
|
Ports & interfaces |
|

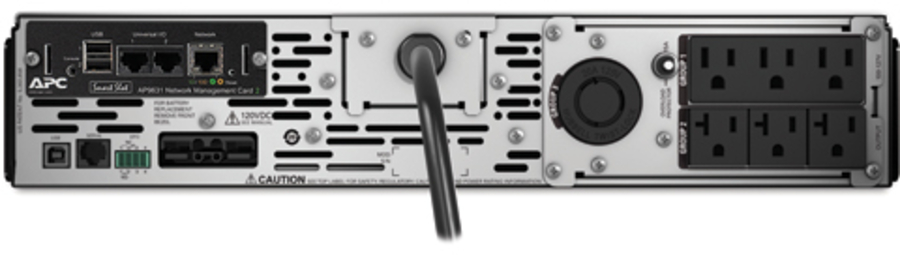

AC outlet types |
NEMA 5–15R, NEMA 5–20R |
|
AC outlets quantity |
7 AC outlet(s) |
|
Battery |
|
Battery technology |
Sealed Lead Acid (VRLA) |
|
Battery recharge time |
3 h |
|
Design |
|
Form factor |
Rackmount/Tower |
|
Product colour |
Black |
|
Rack capacity |
2U |
|
Cable length |
2.44 m |
|
LED indicators |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-15 - 45 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 15000 m |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Certification |
BSMI,CSA,EN 50091-2,EN 55022 A,FCC 15 A,NOM,TUV,UL 1778,VCCI A |
|
Weight & dimensions |
|
Width |
432 mm |
|
Depth |
667 mm |
|
Height |
85 mm |
|
Weight |
38.5 kg |
|
Packaging data |
|
Package weight |
45.4 kg |
|
Other features |
|
Battery type |
APCRBC117 |
|
Interface |
RJ-45 Serial, USB |
|
Nominal output voltage |
120 V |
|
Nominal input voltage |
120 V |
|
Package dimensions (WxDxH) |
596 x 869 x 243 mm |
