General Information |
|
Summary |
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Power-saving outlets
Automatically cuts power to idle equipment to conserve electricity.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
Extendable Run Time
Additional batteries can be added to provide power to the load for an extended period of time in the event of utility supply failure.
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment
Cold-start capable
Provides temporary battery power when the utility power is out.
Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Dataline Surge Protection
Provides protection of connected equipment from power surges on the data lines.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation. |
|
Features |
|
UPS topology |
Line-Interactive |
|
Output power capacity |
1.5 kVA |
|
Output power |
865 W |
|
Waveform |
Sine |
|
Input operation voltage (min) |
156 V |
|
Input operation voltage (max) |
300 V |
|
Input frequency |
50/60 Hz |
|
Output frequency regulation |
50/60 Hz |
|
Automatic Voltage Regulation (AVR) |
Yes |
|
Surge energy rating |
441 J |
|
Hold time (min) |
10 ms |
|
Hold time (max) |
12 ms |
|
Efficiency |
98.9% |
|
Crest factor |
3:1 |
|
Noise level |
45 dB |
|
Surge protection |
Yes |
|
Surge protection features |
Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone |
|
Audible alarm(s) |
Yes |
|
Audible alarm modes |
Low battery alarm, Overload alarm |
|
Ports & interfaces |
|

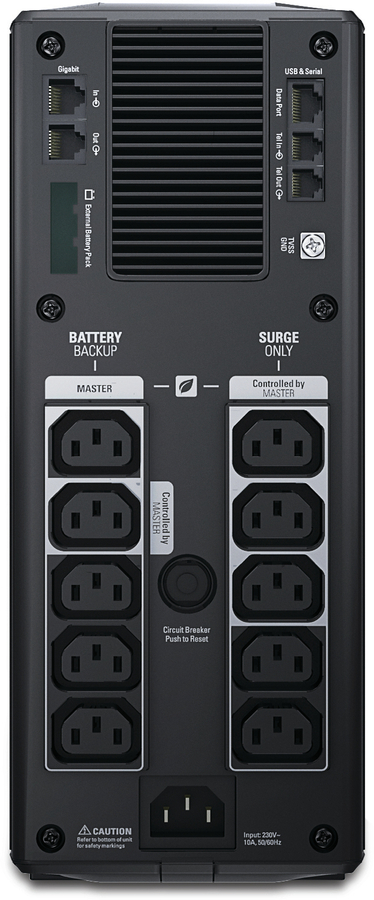

AC outlet types |
C13 coupler |
|
Power plug |
C14 coupler |
|
AC outlets quantity |
10 AC outlet(s) |
|
Number of output IEC jumpers |
2 |
|
USB port |
Yes |
|
Battery |
|
Battery technology |
Sealed Lead Acid (VRLA) |
|
Battery capacity |
187 VAh |
|

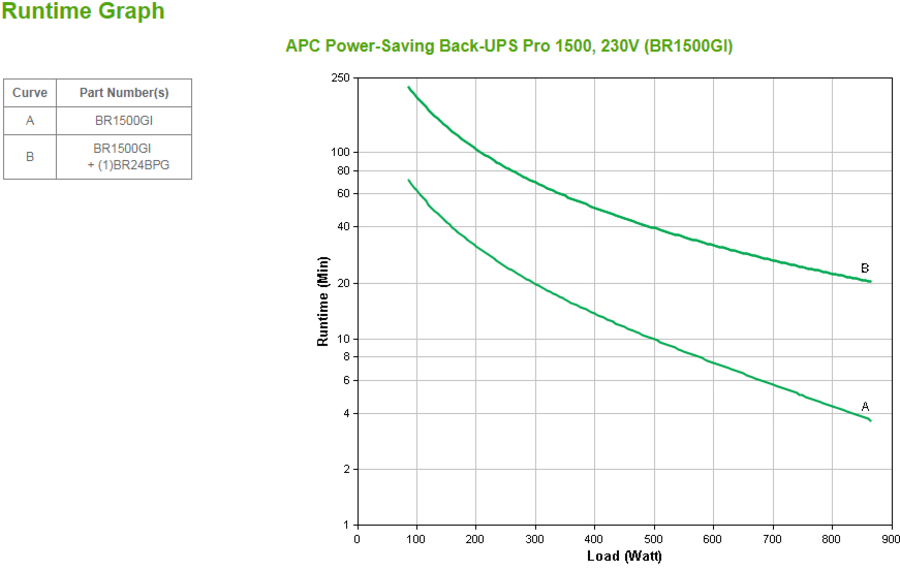

Typical backup time at full load |
3.7 min |
|
Typical backup time at half load |
12.4 min |
|
Battery life (max) |
5 year(s) |
|
Battery recharge time |
8 h |
|
Hot-swap battery |
Yes |
|
Automatic battery test |
Yes |
|
Cold start |
Yes |
|
Replacement battery cartridge |
APCRBC124 |
|
Design |
|
Product colour |
Black |
|

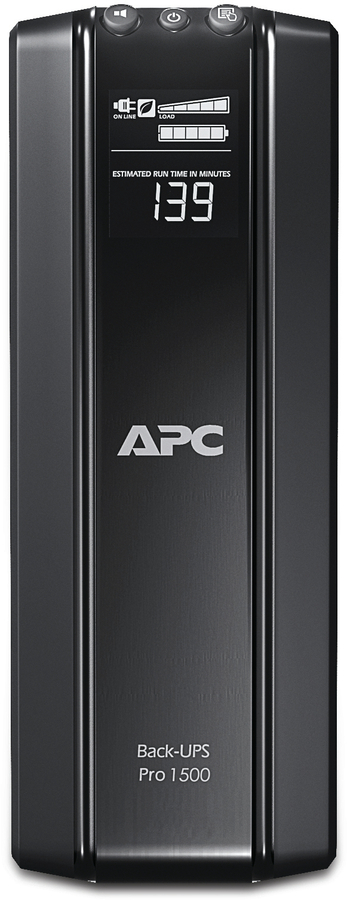

Display type |
LCD |
|
Certification |
A-tick, C-tick, CE, GOST, GS Mark, Telepermit, TUV, REACH, PEP, EOLI, NEMKO-GS |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-15 - 40 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 9000 m |
|
Non-operating altitude |
0 - 15000 m |
|
Technical details |
|
Sustainability certificates |
RoHS, ENERGY STAR |
|
Weight & dimensions |
|
Width |
112 mm |
|
Depth |
380 mm |
|
Height |
301 mm |
|
Weight |
12.7 kg |
|
Package width |
238 mm |
|
Package depth |
488 mm |
|
Package height |
387 mm |
|
Package weight |
14.3 kg |
|
Packaging data |
|
Cables included |
Phone (RJ-11), USB cable |
|
Manual |
Yes |
|
Warranty card |
Yes |
|
Software CD |
Yes |
|
Bundled software |
PowerChute Personal Edition |
|
Logistics data |
|
Products per pallet |
20 pc(s) |
|
Harmonized System (HS) code |
85078000 |
|
Products per master (outer) case |
1 pc(s) |
|
Other features |
|
Nominal output voltage |
230 V |
|
Nominal input voltage |
230 V |
|
Packaging content |
1x Detachable IEC Power Cord |
