General Information |
|
Summary |
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the
UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Sequenced shutdown and restart
Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. |
|
Features |
|
UPS topology |
Line-Interactive |
|
Output power capacity |
3 kVA |
|
Output power |
2700 W |
|
Waveform |
Sine |
|
Input operation voltage (min) |
151 V |
|
Input operation voltage (max) |
302 V |
|
Input frequency |
50/60 Hz |
|
Automatic Voltage Regulation (AVR) |
Yes |
|
Surge energy rating |
365 J |
|
Hold time (max) |
2 ms |
|
Efficiency |
98.1% |
|
Emergency Power Off (EPO) |
Yes |
|
Noise level |
53 dB |
|
Surge protection |
Yes |
|
Audible alarm(s) |
Yes |
|
Auto-restart |
Yes |
|

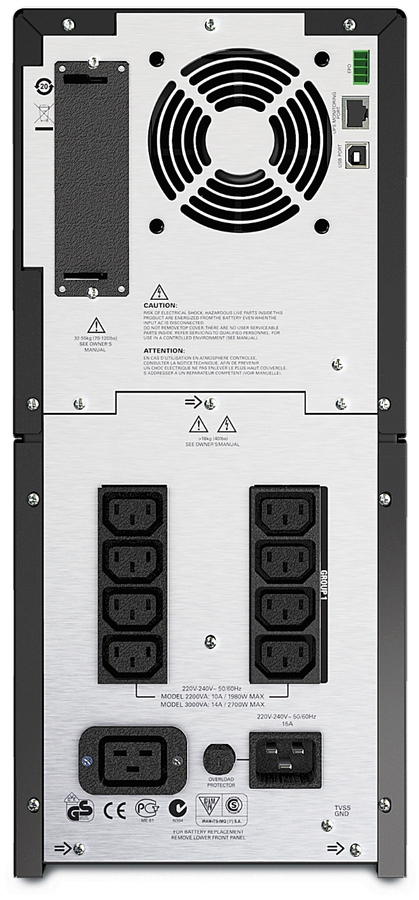

Ports & interfaces |
|
AC outlet types |
C13 coupler, C19 coupler |
|
Power plug |
C20 coupler |
|
AC outlets quantity |
9 AC outlet(s) |
|
Number of output IEC jumpers |
2 |
|
USB port |
Yes |
|
SmartSlot |
Yes |
|
Battery |
|
Battery technology |
Sealed Lead Acid (VRLA) |
|
Battery capacity |
816 VAh |
|

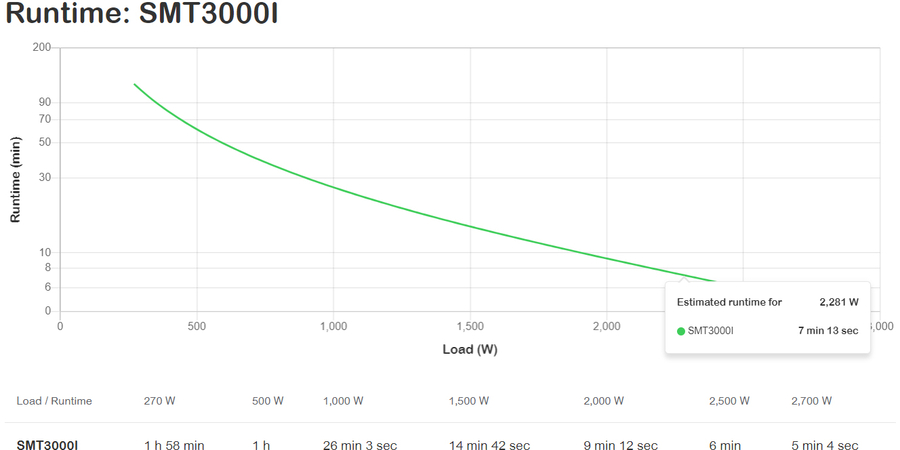

Typical backup time at full load |
5.1 min |
|
Typical backup time at half load |
17.2 min |
|
Battery life (max) |
5 year(s) |
|
Battery recharge time |
3 h |
|
Hot-swap battery |
Yes |
|
Automatic battery test |
Yes |
|
Cold start |
Yes |
|
Design |
|
Form factor |
Tower |
|
Product colour |
Black |
|
Cable length |
1.83 m |
|
Display type |
LCD |
|
LED indicators |
Status |
|
Certification |
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-15 - 45 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 15000 m |
|
Technical details |
|
Sustainability certificates |
Green Premium, RoHS |
|
Weight & dimensions |
|
Width |
197 mm |
|
Depth |
544 mm |
|
Height |
435 mm |
|
Weight |
52.5 kg |
|
Package width |
381 mm |
|
Package depth |
762 mm |
|
Package height |
699 mm |
|
Package weight |
63.7 kg |
|
Packaging data |
|
Cables included |
RS-232, USB cable |
|
Quick installation guide |
Yes |
|
Software CD |
Yes |
|
Logistics data |
|
Products per pallet |
9 pc(s) |
|
Other features |
|
Nominal output voltage |
230 V |
|
Nominal input voltage |
230 V |
