General Information |
|
Summary |
Provides a high-speed, crystal-clear connection to your DVI digital devices

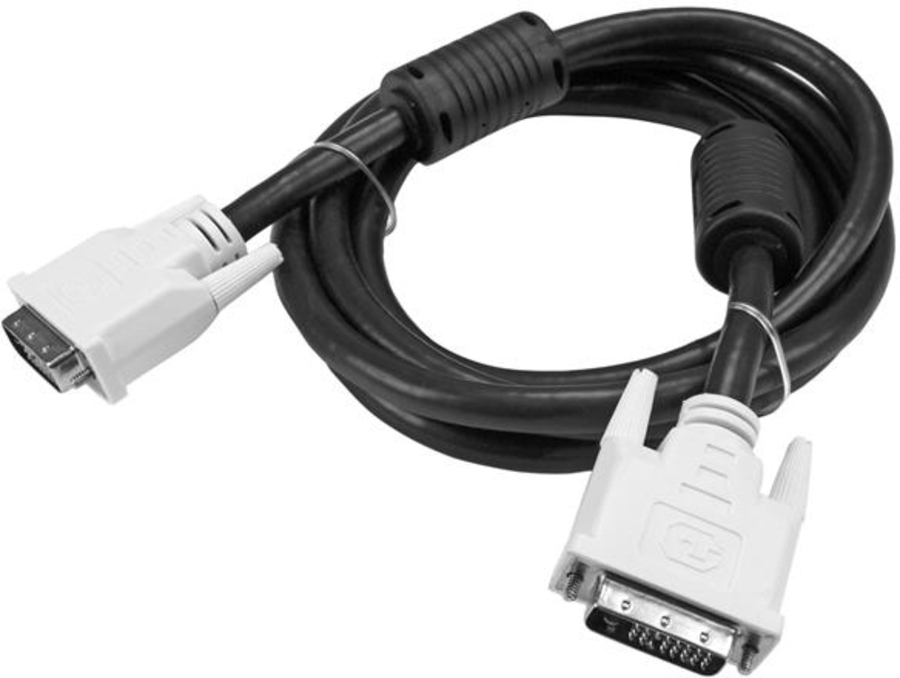

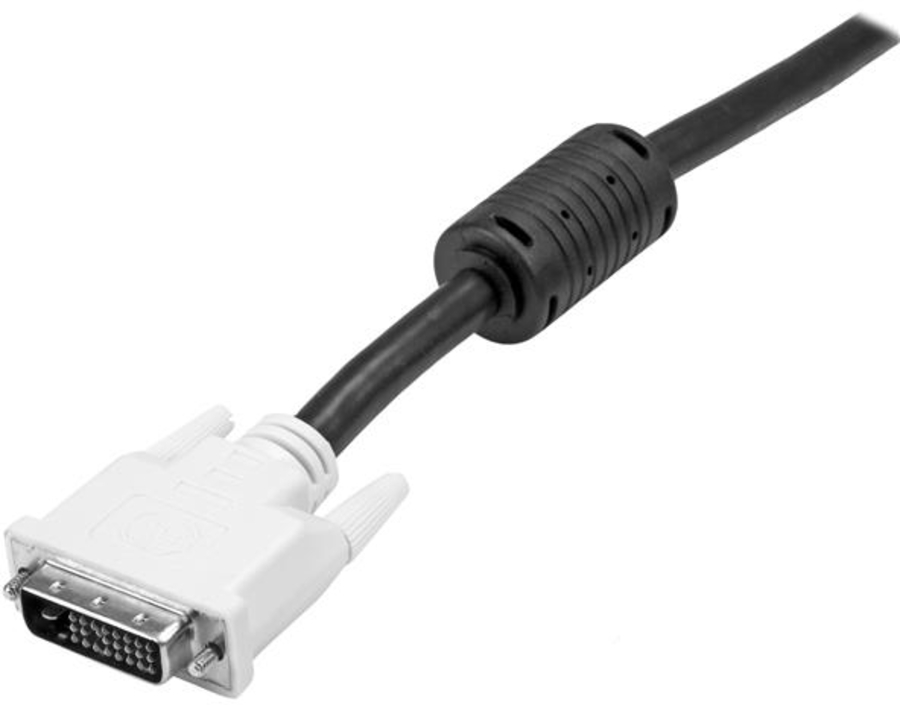

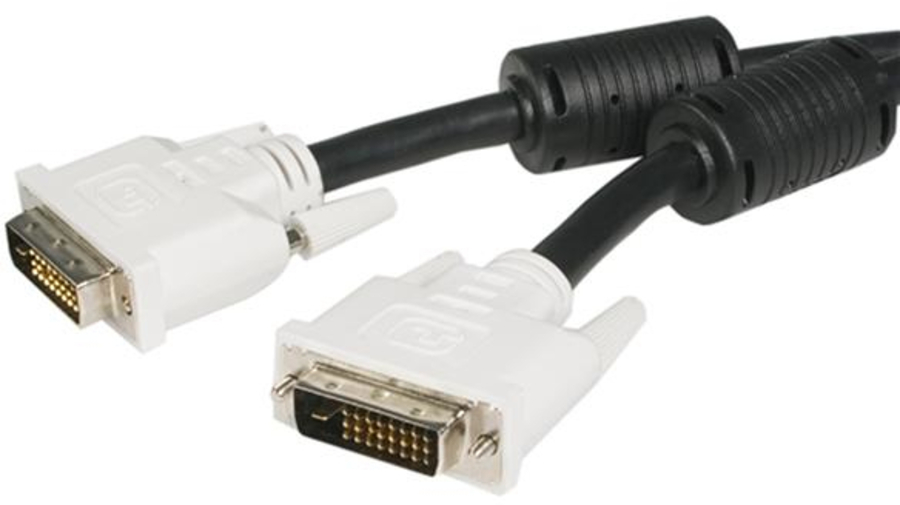

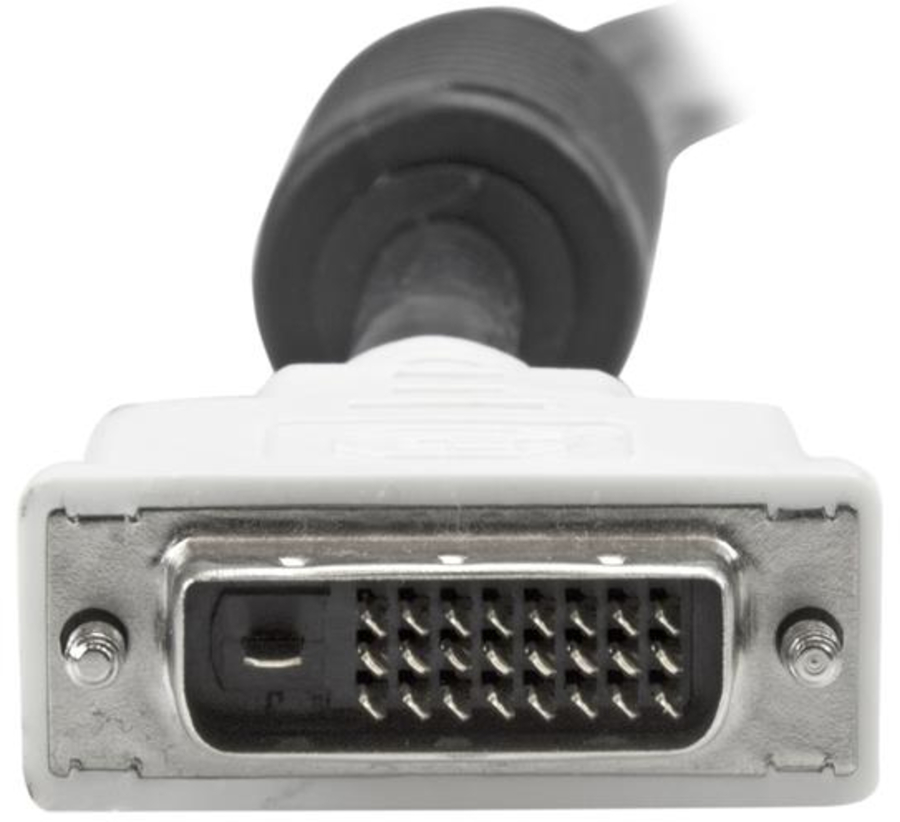

The DVIDDMM6 6ft DVI-D Dual Link cable features 2 male DVI (25-pin) connectors and provides a reliable, purely digital connection between your desktop or laptop computer and a DVI-D monitor or projector.
The 6 ft DVI-D digital monitor cable supports resolutions of up to 2560x1600 and transmission rates of up to 9.9 Gbits/sec and is fully compliant with DVI DDWG standards.
Designed and constructed for maximum durability, this high quality digital video cable is backed by StarTech.com's Lifetime Warranty. |
|
Features |
|
Cable length |
1.8 m |
|
Connector 1 |
DVI-D |
|
Connector 2 |
DVI-D |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Product colour |
Black |
|
Connector contacts plating |
Nickel |
|
Connector 1 pinout |
24+1 |
|
Connector 2 pinout |
24+1 |
|
Dual Link DVI |
Yes |
|
Data transfer rate |
9.9 Gbit/s |
|
Maximum resolution |
2560 x 1600 pixels |
|
AWG wire size |
28 |
|
Cable jacket material |
Polyvinyl chloride (PVC) |
|
Ferrite bead |
Yes |
|
Plug and Play |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Certification |
CE, REACH |
|
Weight & dimensions |
|
Weight |
274 g |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Package width |
196 mm |
|
Package depth |
204 mm |
|
Package height |
36 mm |
|
Package weight |
284 g |
|
Logistics data |
|
Master (outer) case width |
427 mm |
|
Master (outer) case length |
378 mm |
|
Master (outer) case height |
284 mm |
|
Products per master (outer) case |
50 pc(s) |
