General Information |
|
Summary |

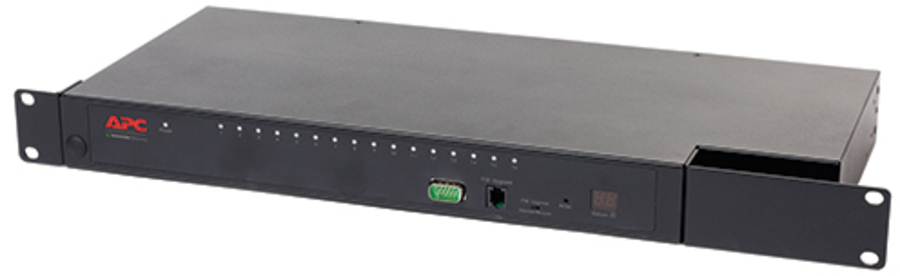

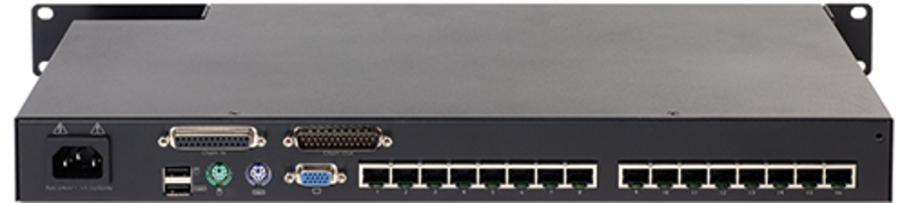

The APC KVM 2G Analog Switch supports one local user and sixteen ports. It is a 1U rack-mountable device. It includes a CD with software, installation guide, and rack mounting brackets. The switch supports multiple platforms and hot-pluggable operation. |
|
Ports & interfaces |
|
Number of computers controlled |
16 |
|
Keyboard port type |
PS/2 |
|
Mouse port type |
PS/2 |
|
Video port type |
VGA |
|
VGA (D-Sub) ports quantity |
1 |
|
USB 2.0 ports quantity |
2 |
|
PS/2 ports quantity |
2 |
|
Console port |
RS-232 |
|
Performance |
|
Maximum resolution |
1600 x 1200 pixels |
|
Number of users |
1 user(s) |
|
Design |
|
Rack mounting |
Yes |
|
Product colour |
Black |
|
Rack capacity |
1U |
|
LED indicators |
Yes |
|
Certification |
cUL listed; C-Tick; CE; EAC; TAA compliance; UL-AR; VCCI class A; VDE |
|
Display |
|
Built-in display |
No |
|
Certificates |
|
Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
|
Sustainability |
|
Compliance certificates |
RoHS, REACH, WEEE |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Storage relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Width |
424 mm |
|
Depth |
188 mm |
|
Height |
43 mm |
|
Weight |
2.4 kg |
|
Packaging data |
|
Package width |
619 mm |
|
Package depth |
330 mm |
|
Package height |
146 mm |
|
Package weight |
3.9 kg |
|
Packaging content |
|
Manual |
Yes |
|
Other features |
|
Connectivity technology |
Wired |
|
Ports quantity |
16 |
|
Technical details |
|
Mounting |
front |
|
Sustainable packaging |
No |
|
Logistics data |
|
Harmonized System (HS) code |
85176200 |
|
Customs product code (TARIC) |
8471800000 |
|
Country of origin |
Taiwan |
