General Information |
|
Summary |
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Outlet group control
Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).
Sequenced shutdown and restart
Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Sine wave output
Eliminates humming and heat generated when powering tubelights and fans.
StruxureWare Central compatible
Enables centralized management via StruxureWare Central.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Audible alarms
Provides notification of changing utility power and UPS conditions
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Serial Connectivity
Provides management of the UPS via a serial port.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Network manageable
Provides remote management of the UPS over the network.
Predicitive failure notification
Provides early-warning fault analysis ensuring proactive component replacement. |
|
Features |
|
Output power capacity |
2.88 kVA |
|
Output power |
2700 W |
|
Waveform |
Sine |
|
Input operation voltage (min) |
75 V |
|
Input operation voltage (max) |
154 V |
|
Input frequency |
50/60 Hz |
|
Surge energy rating |
459 J |
|
Efficiency |
98% |
|
Output voltage Total Harmonic Distortion (THD) |
5% |
|
Noise level |
55 dB |
|
Audible alarm(s) |
Yes |
|
Audible alarm modes |
Battery replacement |
|

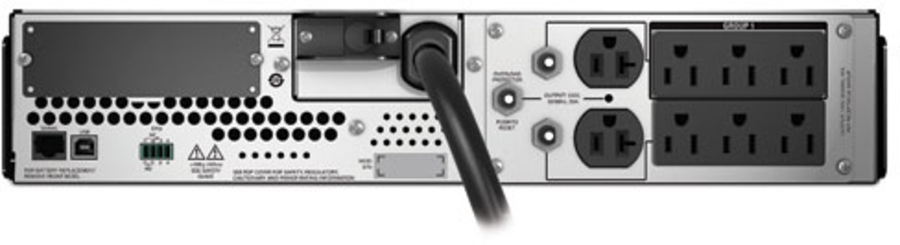

Ports & interfaces |
|
AC outlet types |
NEMA 5–15R, NEMA 5–20R |
|
Power plug |
NEMA L5-30P |
|
AC outlets quantity |
8 AC outlet(s) |
|
USB 2.0 ports quantity |
1 |
|
Battery |
|
Battery technology |
Sealed Lead Acid (VRLA) |
|
Typical backup time at full load |
3.4 min |
|
Typical backup time at half load |
7.2 min |
|
Battery recharge time |
3 h |
|
Replacement battery cartridge |
RBC43 |
|
Design |
|
Form factor |
Rackmount |
|
Product colour |
Grey |
|
Rack capacity |
2U |
|
Cable length |
2.44 m |
|
Display type |
LCD |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-15 - 45 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 15000 m |
|
Technical details |
|
Sustainability certificates |
RoHS, ENERGY STAR |
|
Weight & dimensions |
|
Width |
480 mm |
|
Depth |
683 mm |
|
Height |
86 mm |
|
Weight |
44.3 kg |
|
Package weight |
51.7 kg |
|
Other features |
|
Nominal output voltage |
120 V |
|
Nominal input voltage |
120 V |
|
Output connection type |
6 x NEMA 5-15R & 2 x NEMA 5-20R |
|
Package dimensions (WxDxH) |
600 x 980 x 254 mm |
