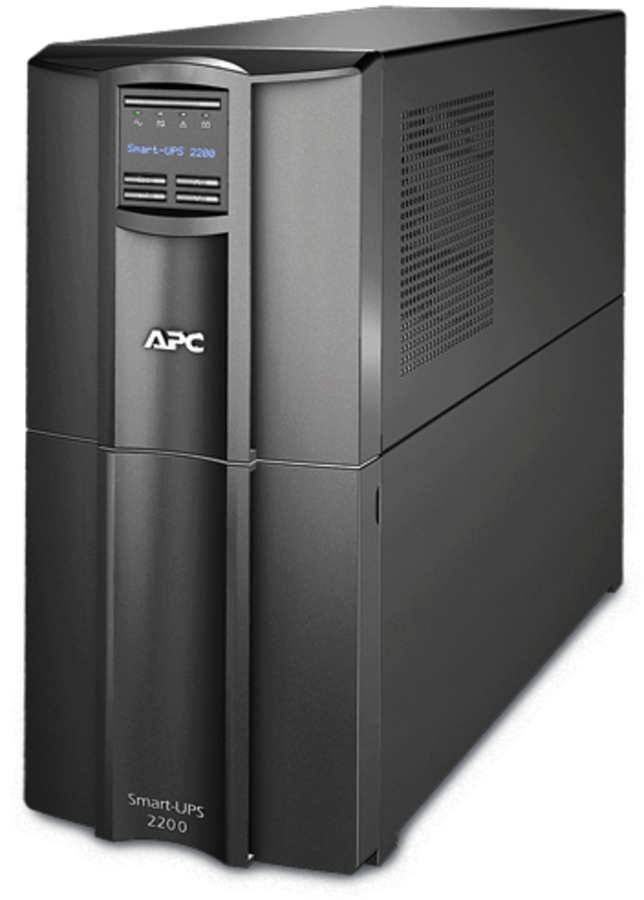

APC Smart-UPS 2200VA LCD 120V

Home :: Power Equipment ::


Regularly: $1991.00
On Sale: $1911.36    Sale Ends: April 12th, 2024

Manufacturer: APC

1920W, 1920VA, 120V, SmartSlot, 8 x NEMA 5-15R & 2 x NEMA 5-20R Out, NEMA 5-20P In, LCD

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
58119806 SMT2200US 731304305620 Active

Details

General Information
Summary Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Predictive replace battery date

Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Energy meter

Provides actual kilowatt hours of usage for energy conscious users.

Sequenced shutdown and restart

Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Single switched outlet group

Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

StruxureWare Central compatible

Enables centralized management via StruxureWare Central.

High online efficiency

Reduces utlility costs, generates less heat.

SmartSlot

Customize UPS capabilities with management cards.

Cold-start capable

Provides temporary battery power when the utility power is out.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.
Features
Output power capacity 1.92 kVA
Output power 1920 W
Waveform Sine
Input operation voltage (min) 75 V
Input operation voltage (max) 154 V
Input frequency 50/60 Hz
Surge energy rating 530 J
Efficiency 98%
Emergency Power Off (EPO) Yes
Output voltage Total Harmonic Distortion (THD) 5%
Noise level 45 dB
Audible alarm(s) Yes
Audible alarm modes Battery replacement
Ports & interfaces
AC outlet types NEMA 5–15R, NEMA 5–20R
Power plug NEMA 5-20P
AC outlets quantity 10 AC outlet(s)
USB 2.0 ports quantity 1
Battery
Battery technology Sealed Lead Acid (VRLA)
Typical backup time at full load 7.5 min
Typical backup time at half load 22.5 min
Battery recharge time 3 h
Replacement battery cartridge RBC55
Design
Form factor Tower
Product colour Black
Cable length 1.83 m
Display type LCD
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 45 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 15000 m
Technical details
Sustainability certificates RoHS, ENERGY STAR
Weight & dimensions
Width 196 mm
Depth 544 mm
Height 432 mm
Weight 50.9 kg
Package weight 60.9 kg
Other features
Nominal output voltage 120 V
Nominal input voltage 120 V
Output connection type 8 x NEMA 5-15R & 2 x NEMA 5-20R
Package dimensions (WxDxH) 381 x 762 x 559 mm
