Summary |

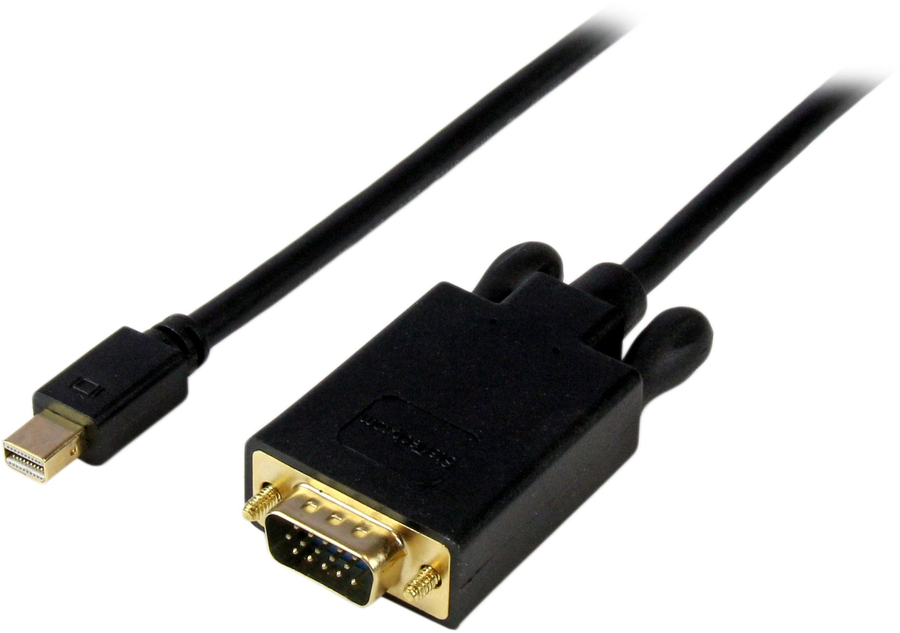

Connect a Mini DisplayPort-equipped PC or Mac® to a VGA monitor/projector, with a 6ft black cable
The MDP2VGAMM6B 6ft active Mini DisplayPort to VGA converter cable lets you connect your Mini DisplayPort-equipped device (such as a Macbook® or any Microsoft® Surface™ Pro devices with mDP) directly to a VGA monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your Mini DisplayPort computer to work with a VGA monitor or projector.
The adapter cable is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port. Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.
The MDP2VGAMM6B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
|
|
Features |
|
Cable length |
1.83 m |
|
Connector 1 |
mini DisplayPort |
|
Connector 2 |
VGA (D-Sub) |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
HDCP |
Yes |
|
HDCP version |
1.4 |
|
DisplayPort version |
1.2 |
|
DisplayPort Content Protection (DPCP) |
Yes |
|
Maximum resolution |
1920 x 1200 pixels |
|
Supported video modes |
1080p |
|
HBR2 support |
Yes |
|
Product colour |
Black |
|
Chipset |
Analogix - 9832 |
|
Plug and Play |
Yes |
|
Converter type |
Active video converter |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 60 °C |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Operating relative humidity (H-H) |
40 - 85% |
|
Certificates |
|
Compliance certificates |
CE, RoHS |
|
Weight & dimensions |
|
Weight |
101.3 g |
|
Width |
37 mm |
|
Depth |
1830 mm |
|
Height |
19 mm |
|
Packaging data |
|
Package width |
197 mm |
|
Package depth |
222 mm |
|
Package height |
20 mm |
|
Package weight |
123 g |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
Master (outer) case width |
420 mm |
|
Master (outer) case length |
415 mm |
|
Master (outer) case height |
435 mm |
|
Products per master (outer) case |
150 pc(s) |
