General Information |
|
Summary |

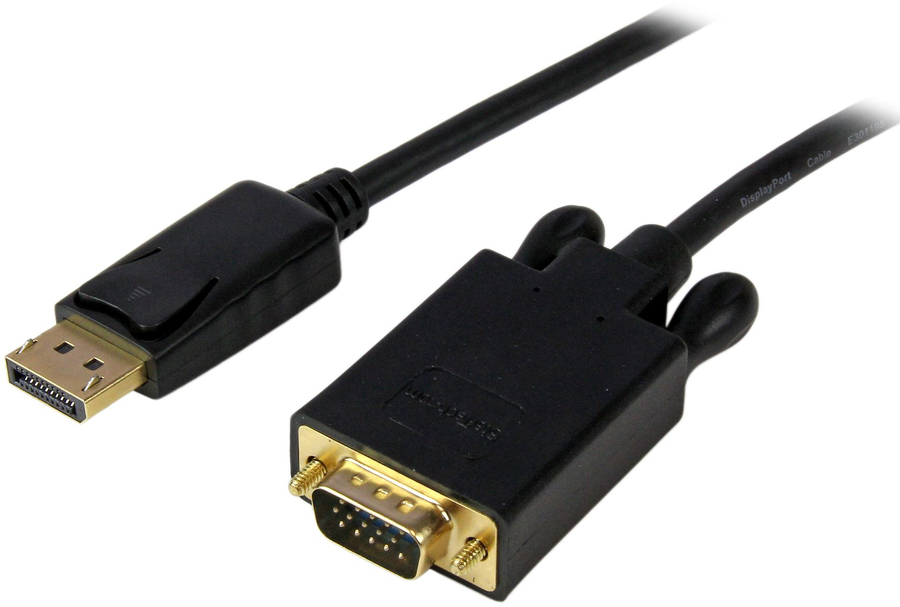

Connect a DisplayPort-equipped PC to a VGA monitor/projector, with a 6ft cableThe DP2VGAMM6B 6ft active DisplayPort to VGA converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a VGA monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your new DisplayPort computer to work with an older VGA monitor or projector.Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.The DP2VGAMM6B is backed by a 3-year StarTech.com warranty and free lifetime technical support.The StarTech.com Advantage |
|
Features |
|
Cable length |
1.8 m |
|
Connector 1 |

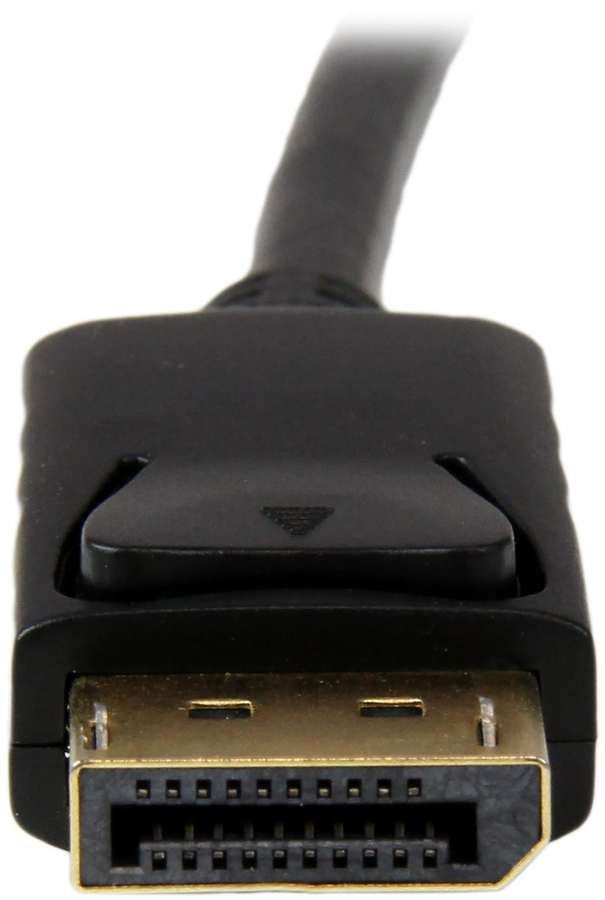

DisplayPort |
|
Connector 2 |

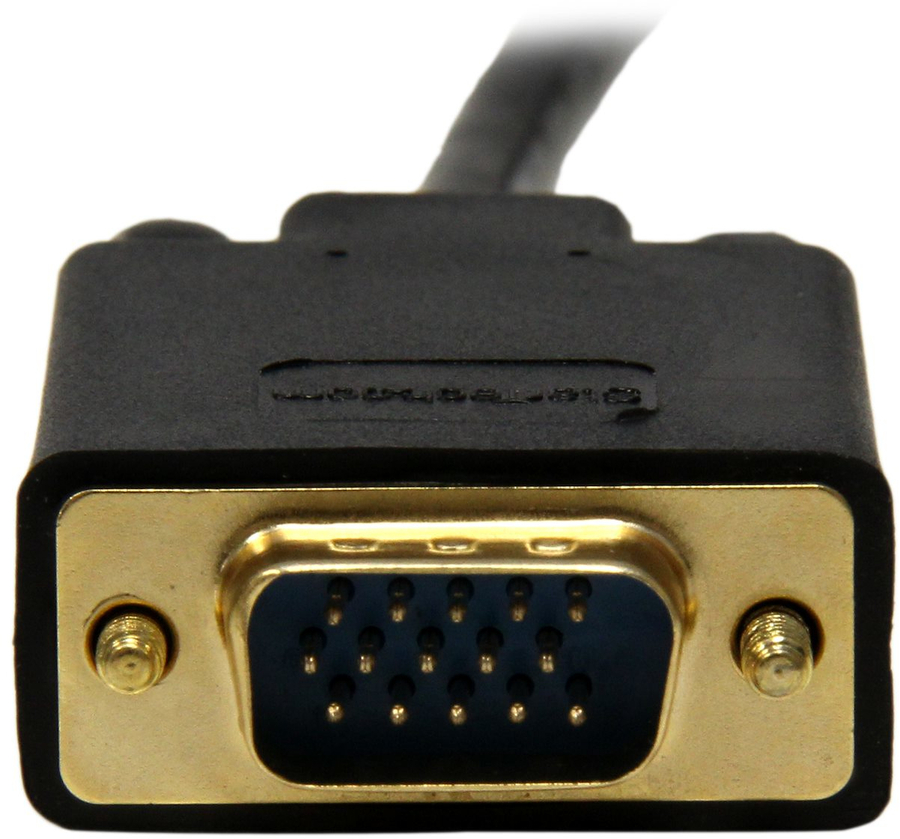

VGA (D-Sub) |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
DisplayPort version |
1.2 |
|
Maximum resolution |
2048 x 1280 pixels |
|
Supported graphics resolutions |
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280 |
|
Supported video modes |
1080p |
|
Maximum refresh rate |
60 Hz |
|
HBR2 support |
Yes |
|
Product colour |
Black |
|
Chipset |
Analogix - 9832 |
|
Plug and Play |
Yes |
|
Converter type |
Active video converter |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 60 °C |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Operating relative humidity (H-H) |
40 - 85% |
|
Sustainability |
|
Sustainability certificates |
CE, RoHS |
|
Weight & dimensions |
|
Weight |
103.67 g |
|
Width |
35 mm |
|
Depth |
1840 mm |
|
Height |
15 mm |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Package width |
195 mm |
|
Package depth |
220 mm |
|
Package height |
20 mm |
|
Package weight |
128 g |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
Master (outer) case width |
420 mm |
|
Master (outer) case length |
415 mm |
|
Master (outer) case height |
435 mm |
|
Products per master (outer) case |
120 pc(s) |
