General Information |
|
Summary |

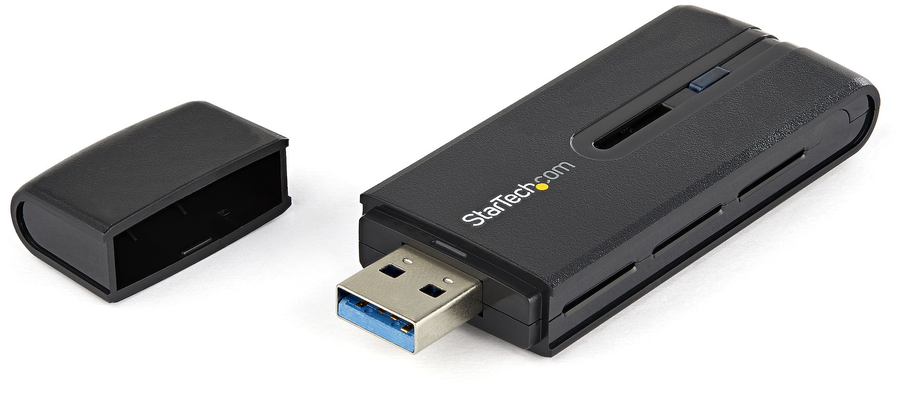

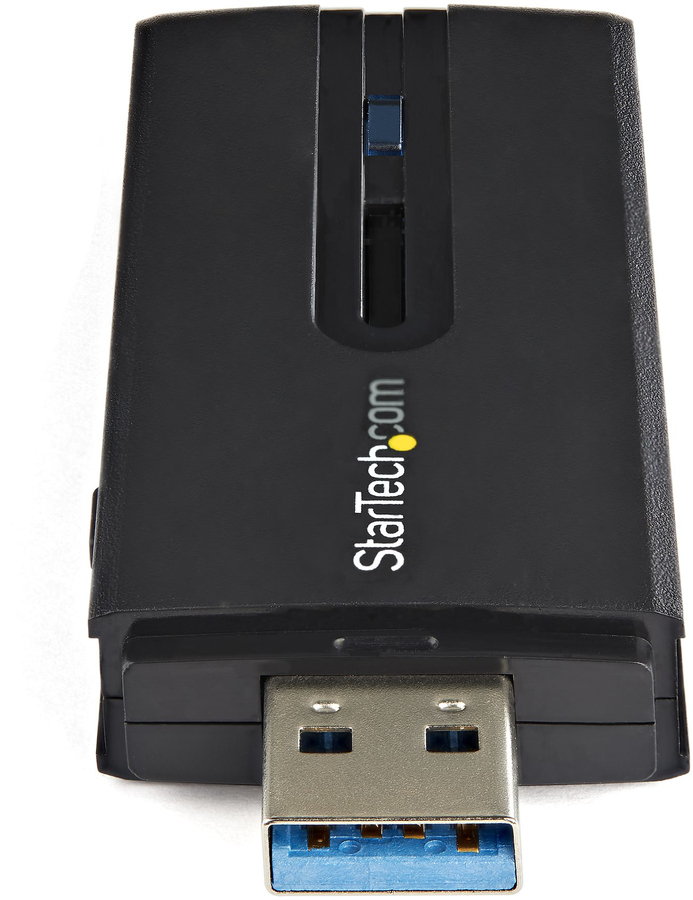

The USB867WAC22 USB 3.0 AC1200 Wireless Network Adapter lets you add Wireless-AC connectivity to a desktop or laptop computer through USB 3.0.
With network applications like streaming HD video, online conferencing, file transfers and gaming becoming more demanding, this Wireless-AC adapter gives you exceptional speed and range for your office or home wireless network when paired with an 802.11ac router. The dual band WiFi adapter supports maximum data rates of up to 867 Mbps on the 5GHz band (3x the speed of Wireless-N), plus up to 300 Mbps on the 2.4GHz band.

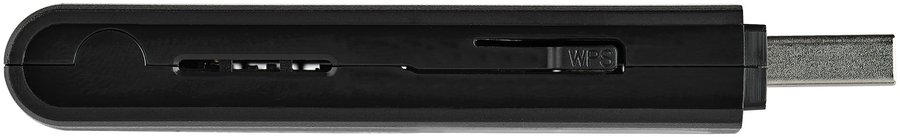

This versatile network card features a 2T2R (2 transmitter, 2 receiver) antenna design, with a physical WPS button for secure, one-touch device registration. To integrate with all of your networking devices, the adapter is also backward compatible with 802.11a/b/g/n networks.
Backed by a StarTech.com 2-year warranty, with free lifetime technical support.
The StarTech.com Advantage
- Experience faster wireless speed and better coverage with 802.11ac compatibility
- Ensure fast wireless with less interference through dual band 2.4 / 5 GHz operation
- Connect to existing wireless networks with 802.11a/b/g/n backward compatibility |
|
Ports & interfaces |
|
Connectivity technology |
Wireless |
|
Host interface |
USB |
|
Interface |
WLAN |
|
Network |
|
Maximum data transfer rate |
867 Mbit/s |
|
Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
|
Wi-Fi |
Yes |
|
Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
|
Frequency range |
2.4 - 5 GHz |
|
Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
|
Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
|
Modulation |
16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
|
Security algorithms |
AES, TKIP, WEP, WPA, WPA2 |
|
Full duplex |
Yes |
|
Quality of Service (QoS) support |
Yes |
|
Design |
|
Internal |
No |
|
Product colour |
Black |
|
Chipset |
Realtek - RTL8812AU |
|
WPS push button |
Yes |
|
System requirements |
|
Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
|
Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
|
Linux operating systems supported |
Yes |
|
Server operating systems supported |
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 60 °C |
|
Storage temperature (T-T) |
0 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Sustainability |
|
Sustainability compliance |
Yes |
|
Sustainability certificates |
CE, RoHS |
|
Weight & dimensions |
|
Width |
29 mm |
|
Depth |
80 mm |
|
Height |
10 mm |
|
Weight |
16 g |
|
Packaging data |
|
Quantity |
1 |
|
Drivers included |
Yes |
|
Package width |
138 mm |
|
Package depth |
171 mm |
|
Package height |
32 mm |
|
Package weight |
108 g |
|

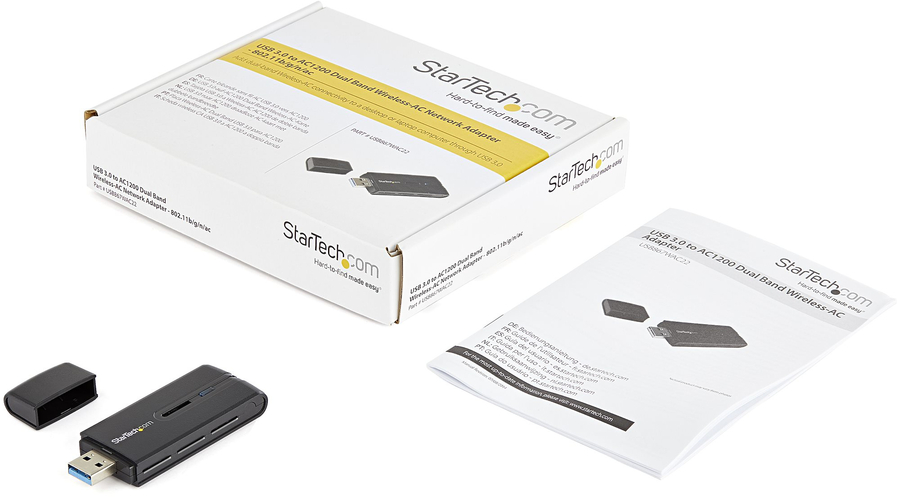

Packaging content |
|
Manual |
Yes |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
Master (outer) case width |
372 mm |
|
Master (outer) case length |
722 mm |
|
Master (outer) case height |
363 mm |
|
Products per master (outer) case |
100 pc(s) |
|
Other features |
|
Housing material |
Plastic |
|
