General Information |
|
Summary |
Share a standard USB printer with multiple users simultaneously over a wireless network
The PM1115UW Wireless-N Print Server lets you share a standard USB printer with multiple users simultaneously over a WiFi network, or a wired LAN connection.
This compact wireless print server supports 802.11b/g/n wireless standards for functionality with almost any wireless network, plus, serving as a primary or backup interface the print server also offers an RJ45 port for 10/100 Mbps wired connections. Providing wireless network printing access enables you to place your printer in any location with network access and avoids the added cost of purchasing individual printers for each workstation or area.

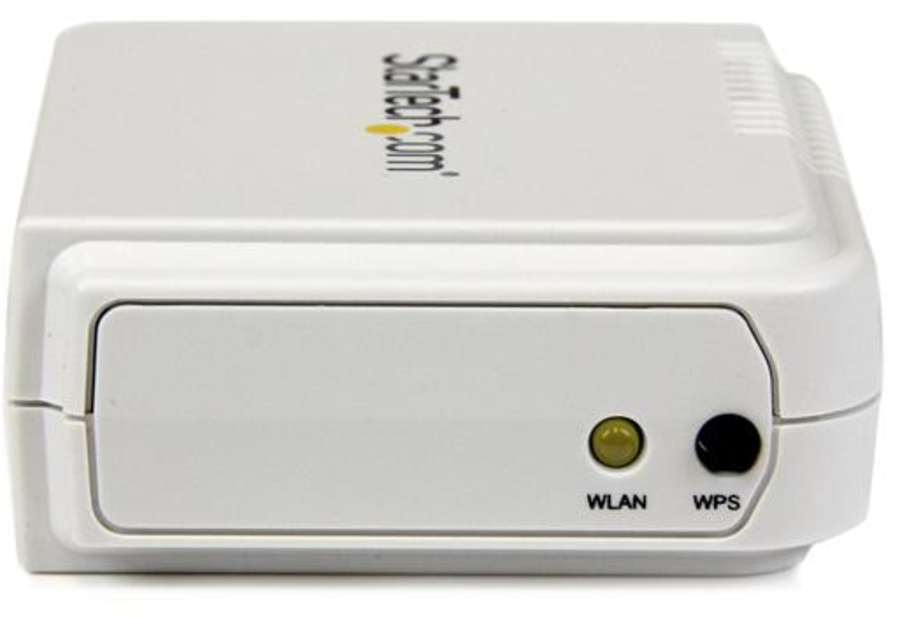

This wireless USB print server can have you up and running in minutes, using either a web-based interface or a Windows based installation wizard, and also features a WiFi Protected Setup (WPS) button for quick and easy connection to your wireless network. Compatibility with USB 2.0 standards and a wide variety of USB printers and operating systems makes this network print server perfect for installation into mixed environments, with Simple Network Management Protocol (SNMP) support for remote monitoring.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Avoid the added costs of purchasing additional printers with wireless or wired network print sharing
- Convenient setup options with Windows or web-based configuration
- Broad compatibility for use with most USB printers on the market |
|
Features |
|
Internal |
No |
|
Product colour |
White |
|
LED indicators |
Status, USB, WLAN |
|
DHCP client |
Yes |
|
Network |
|
Network connection type |
Ethernet LAN/Wireless LAN |
|
Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
|
Ethernet LAN data rates |
10,100 Mbit/s |
|
Wi-Fi band |
Single-band (2.4 GHz) |
|
Security algorithms |
WEP, WPA, WPA2-PSK |
|
Protocols |
|
Supported network protocols |
TCP/IP, IPX, NetBEUI, AppleTalk, SNMP, SMB over IP |
|
Web-based management |
Yes |
|

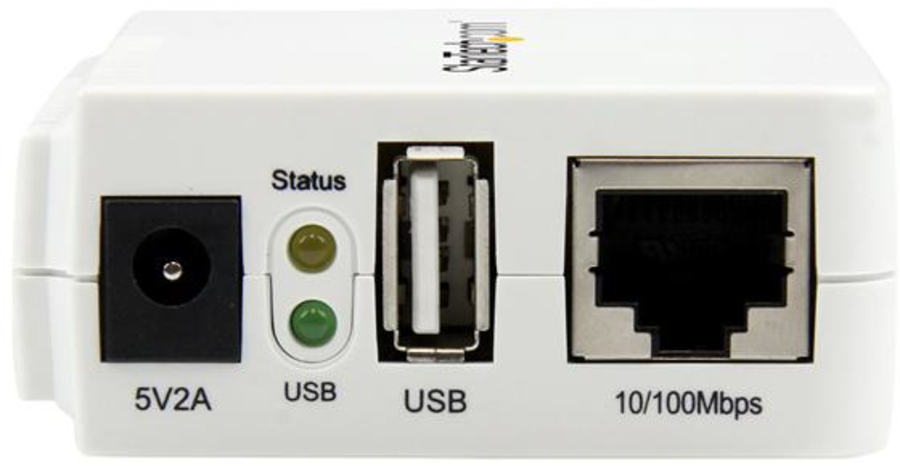

Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
1 |
|
USB 2.0 ports quantity |
1 |
|
USB connector type |
USB Type-A |
|
Power |
|
AC input voltage |
100-240 V |
|
Input current |
0.31 A |
|
AC adapter output voltage |
5 V |
|
AC adapter output current |
2 A |
|
Software |
|
Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
|
Mac compatibility |
Yes |
|
Mac operating systems supported |
Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
|
Linux operating systems supported |
Yes |
|
Certificates |
|
Certification |
CE, FCC |
|
Sustainability |
|
Sustainability certificates |
RoHS |
|
Weight & dimensions |
|
Width |
58 mm |
|
Depth |
72 mm |
|
Height |
25 mm |
|
Weight |
54 g |
|
Packaging data |
|
Package width |
151 mm |
|
Package depth |
230 mm |
|
Package height |
70 mm |
|
Package weight |
360 g |
|

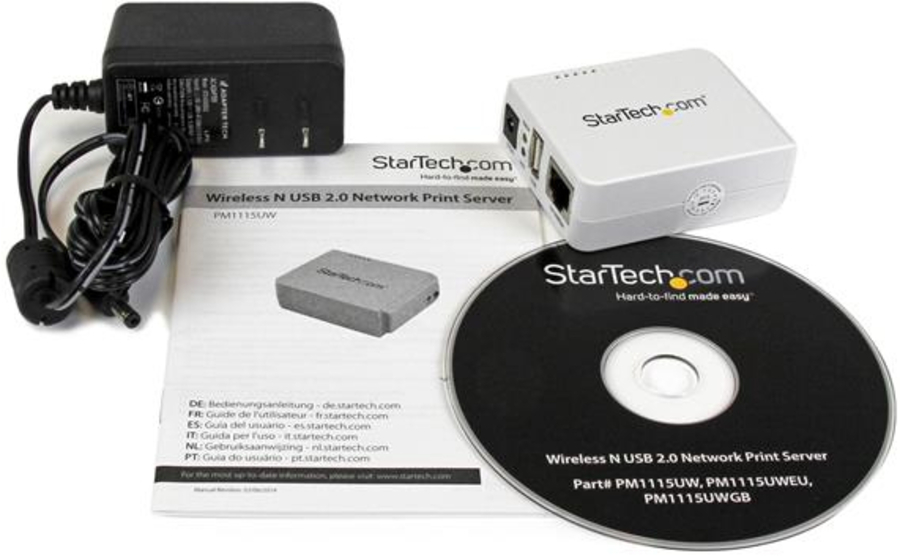

Packaging content |
|
CD manual |
Yes |
|
Quick installation guide |
Yes |
|
External power adapter |
Yes |
|
Operational conditions |
|
Operating relative humidity (H-H) |
0 - 70% |
|
Storage temperature (T-T) |
0 - 50 °C |
|
Storage relative humidity (H-H) |
0 - 70% |
|
