General Information |
|
Summary |

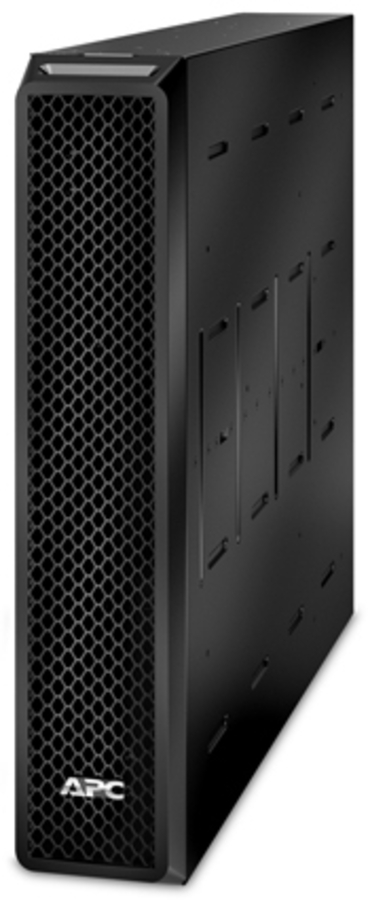

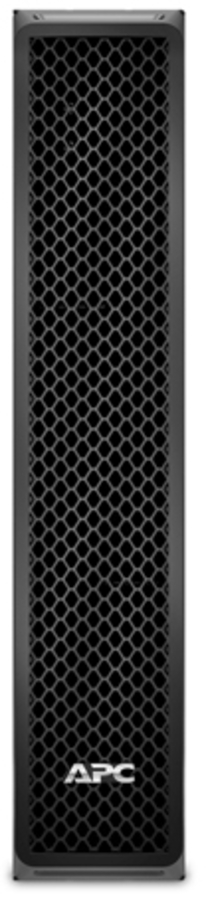

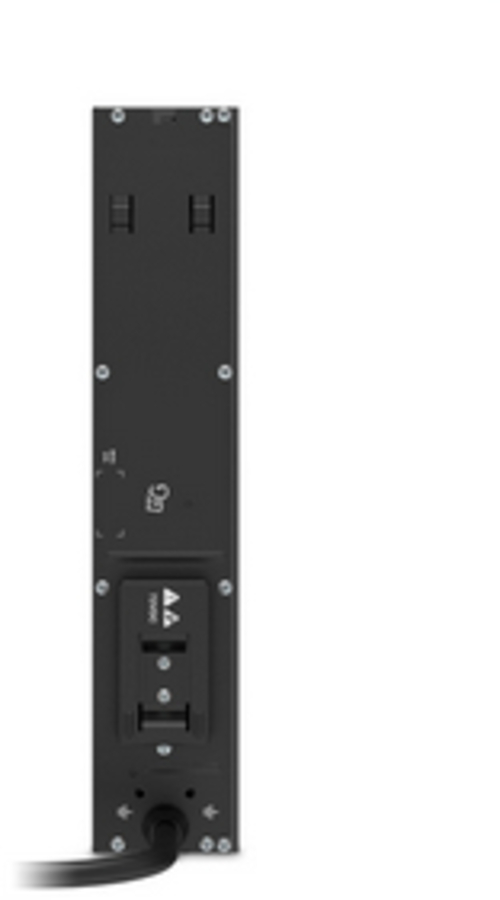

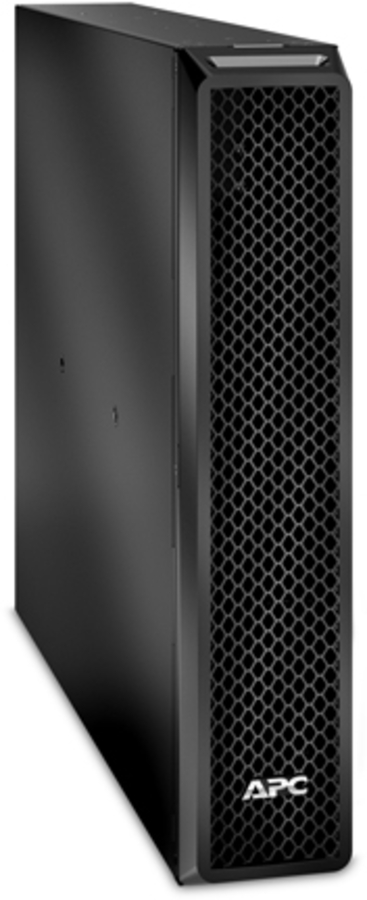

This APC Smart-UPS battery pack connected with SRT On-Line UPS, provides extended runtime to SRT mission critical applications. This 72V SRT extendable runtime battery pack is compatible with 2.2kVA SRT Smart-UPS extended runtime models. Embedded monitoring at the cell, module, and cabinet level provides data of battery runtime and health. It is a lead-acid battery with a 2-year warranty. |
|
Features |
|
Battery technology |
Sealed Lead Acid (VRLA) |
|
Battery voltage |
72 V |
|
Product colour |
Black |
|
Battery life |
5 year(s) |
|
Hot-swap battery |
Yes |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Certification |
REACH |
|
Weight & dimensions |
|
Weight |
33.9 kg |
|
Width |
85 mm |
|
Height |
432 mm |
|
Depth |
594 mm |
|
Packaging data |
|
Package width |
599 mm |
|
Package height |
239 mm |
|
Package depth |
831 mm |
|
Package weight |
37.8 kg |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-15 - 45 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Non-operating altitude |
0 - 15000 m |
|
Logistics data |
|
Harmonized System (HS) code |
85044095 |
|
Total carbon footprint (kg of CO2e) |
173.08 |
