StarTech Dual-Bay 2.5” SATA SSD / HDD Rack for 3.5” Bay - Trayless - RAID
|
|
Price: $78.00
Manufacturer:
StarTech
StarTech.com HDD Rack - Dual Bay 2.5in SATA Rack - for 3.5in Bay - Trayless - RAID - Removable Hard Drive Bay - Hot Swap Cage
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58120032
|
HSB225S3R
|
65030872454 |
Active
|
Details
|
General Information |
|
Summary |
Easily connect and hot swap two 2.5 in. SATA hard drives or SSDs through a single 3.5 in. front bay
This HDD rack lets you install two 2.5” SATA hard drives or solid-state drives into a single 3.5” front bay. With configurable RAID support, the SATA drive rack provides an ideal data storage solution.
Flexible storage solution
Configure and arrange your drives for increased drive capacity, or add data redundancy, with built-in hardware RAID functionality. The HDD rack offers software and operating system independent operations and with multiple RAID options, such as RAID 0, RAID 1, spanning, or JBOD, you can build the data storage solution that works best for you.
Hot swap your SATA drives

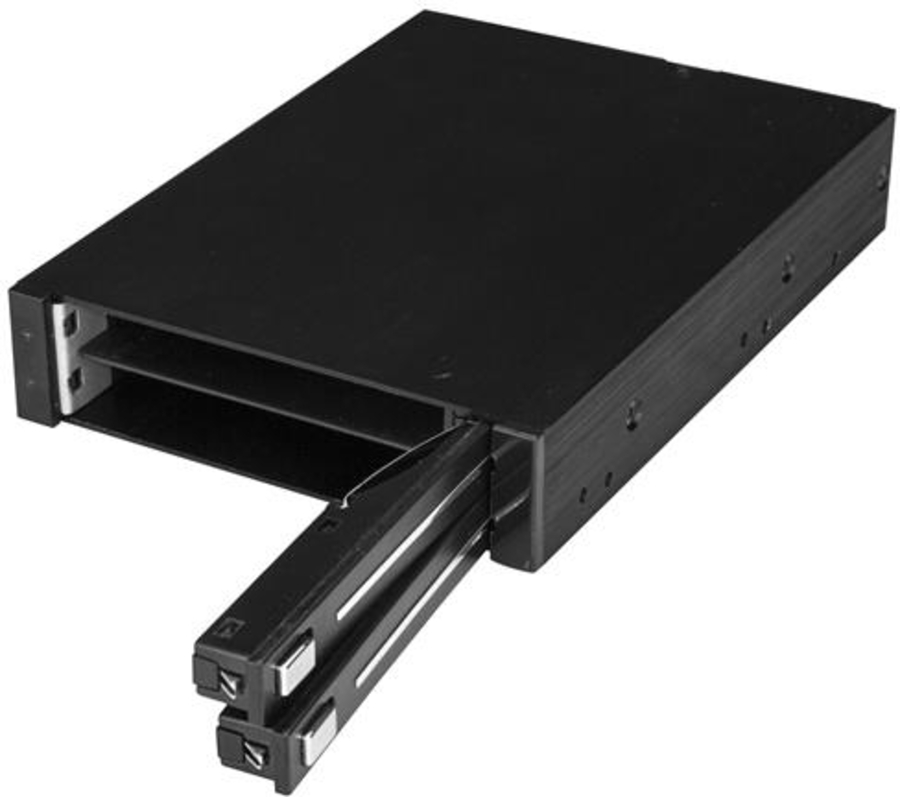

This SATA backplane is trayless and hot-swappable, which makes it easy to install and remove your drives from your computer system when required, without having to open the case every time. It also provides a more convenient way to create backups for data recovery and archiving.
Designed for durability and trouble-free use
The removable hard-drive bay/backplane features durable aluminum construction for long-lasting performance. The SATA backplane also has LED indicators for power and hard drive activity, and drive status, which makes it easy to monitor the status of your hard drives and RAID array.
The HSB225S3R is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- SATA III (6Gbps) drive interface, compatible with SATA I, II and III
- Increase drive capacity, performance, or data redundancy, with multiple RAID modes: RAID 0, RAID 1, spanning
- Supports up to two 2.5” SATA SSD/HDDs |
|
Features |
|
Size (imperial) |
8.89 cm (3.5") |
|
Type |
Carrier panel |
|
Product colour |
Black |
|
Number of HDDs supported |
2 |
|
HDD size |
2.5" |
|
HDD interface |
Serial ATA, Serial ATA II, Serial ATA III |
|
Material |
Aluminium, Plastic |
|
Number of cycles |
50000 |
|
Supported storage drive heights |
5,7,9.5 mm |
|
Hot-swap |
Yes |
|
Number of fans |
0 fan(s) |
|
Data transfer rate |
6 Gbit/s |
|
LED indicators |
Activity, Fault, Link |
|
Key lock |
No |
|
Chipset |
ASMedia - ASM1092R |
|
RAID support |
Yes |
|
RAID levels |
0, 1, BIG, JBOD |
|
S.M.A.R.T. support |
Yes |
|
TRIM support |
Yes |
|
Certification |
CE, FCC, REACH |
|
Ports & interfaces |
|
Number of SATA connectors |
1 |
|
Weight & dimensions |
|
Width |
101 mm |
|
Depth |
140 mm |
|
Height |
25 mm |
|
Weight |
220 g |
|
Packaging data |
|
Package dimensions (WxDxH) |
150 x 198 x 45 mm |
|
Package weight |
345 g |
|
Packaging content |
|
Cables included |
SATA |
|
Screws included |
Yes |
|
Manual |
Yes |
|
Technical details |
|
Compliance certificates |
RoHS |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
