General Information |
|
Summary |

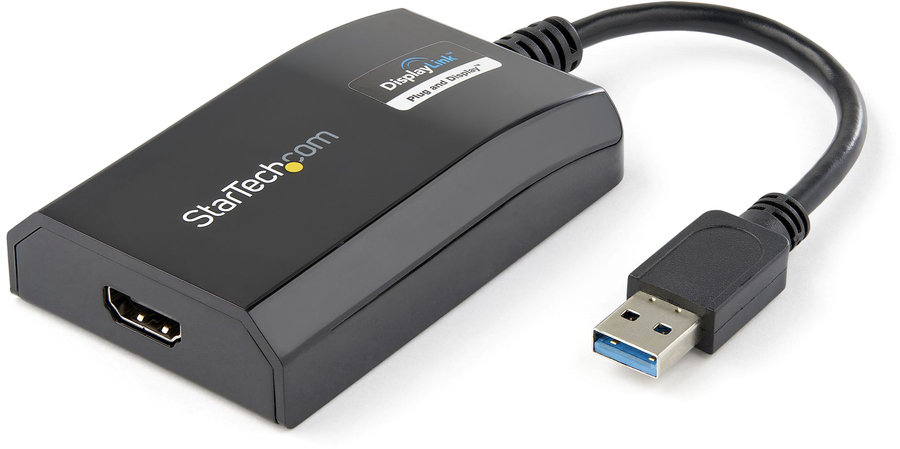

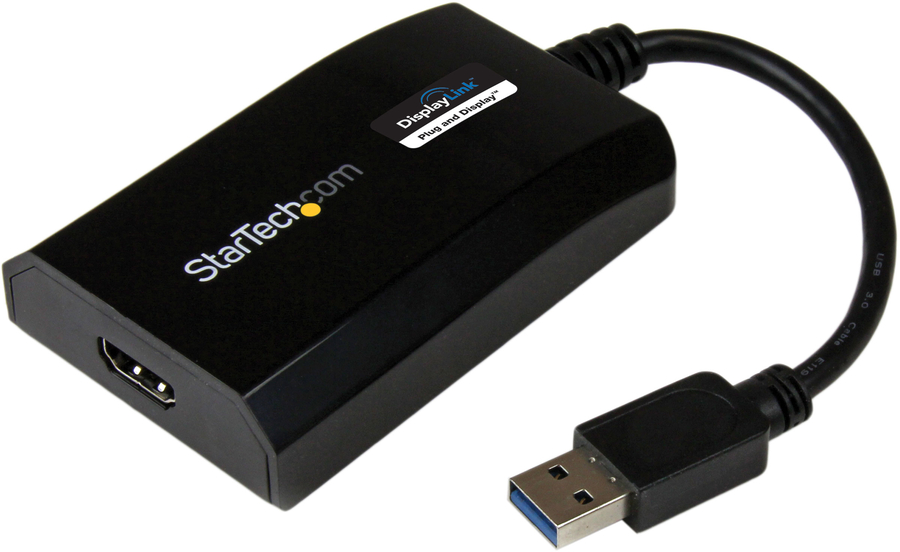

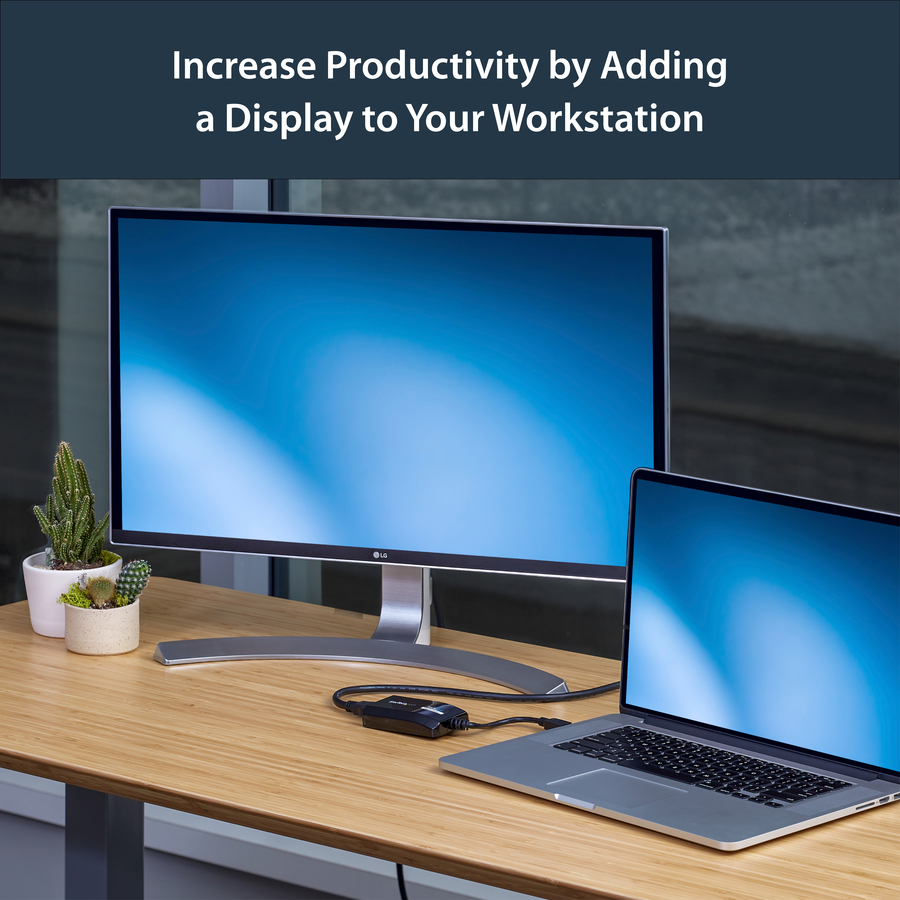

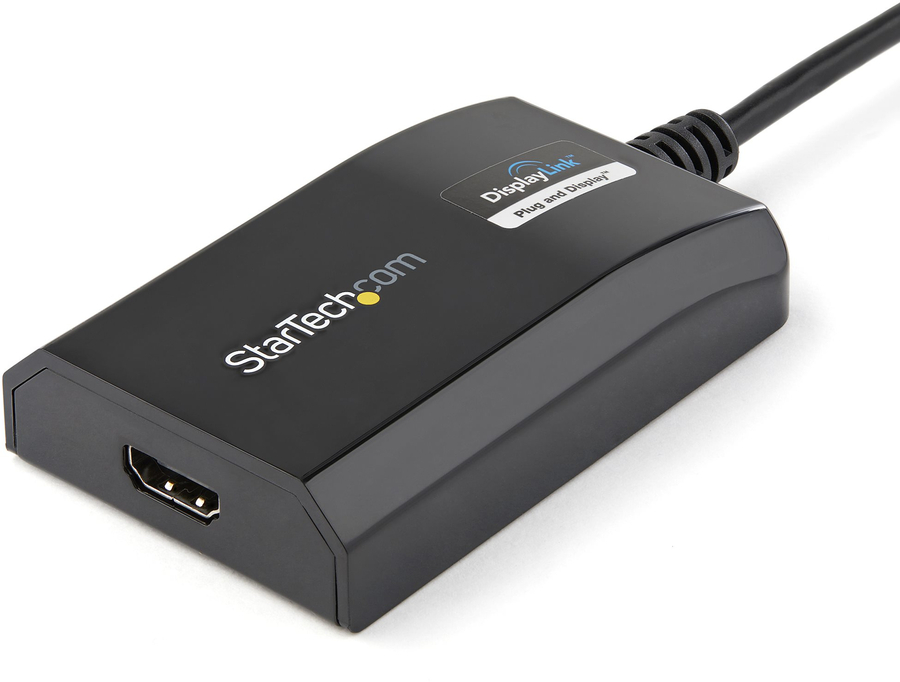

USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Mac & Windows®The USB32HDPRO USB 3.0 to HDMI Adapter lets you add an HDMI display to your computer through a USB 3.0 port, providing a cost-effective and convenient way to expand the video capabilities of your Mac® or PC computer system.USB 3.0 Bandwidth, High Definition PerformanceWith USB 3.0 support, this external video adapter delivers the bandwidth needed for accelerated High-Definition video performance, capable of outputting video resolutions up to 1920x1200 / 1080p. Even if your current computer doesn’t have a USB 3.0 port available, the USB32HDPRO is backward compatible with USB 2.0, so you’ll be able to connect your HDMI monitor to your computer and be ready for when you upgrade to a USB 3.0-equipped system.Easier Multitasking, More ProductivityAdd the screen space you need to simplify multitasking and maximize productivity, without even opening your computer case. Some computer systems, including MacBook® and Ultrabook™ laptops and small form-factor desktops, are too compact to install an internal video card. A USB display adapter offers an easy workaround, performing as an external video card that only requires an available USB port to mirror or extend your desktop onto another display.DisplayLink Plug-and-Display CertifiedInstallation has never been easier. When you connect this DisplayLink Plug and Display certified adapter to a web-enabled Windows® 10, Windows® 8 or Windows® 7 computer, it automatically downloads and installs the most up-to-date drivers for you, so you won’t have to manually download or install any software.The USB32HDPRO is backed by a StarTech.com 2-year warranty and free lifetime technical support.Recommended System Requirements:CPU: Quad Core 2.4GHz or Higher (i5 recommended)RAM: 4GB or higher |
|
Performance |
|
USB version |
3.2 Gen 1 (3.1 Gen 1) |
|
DVI output |
No |
|

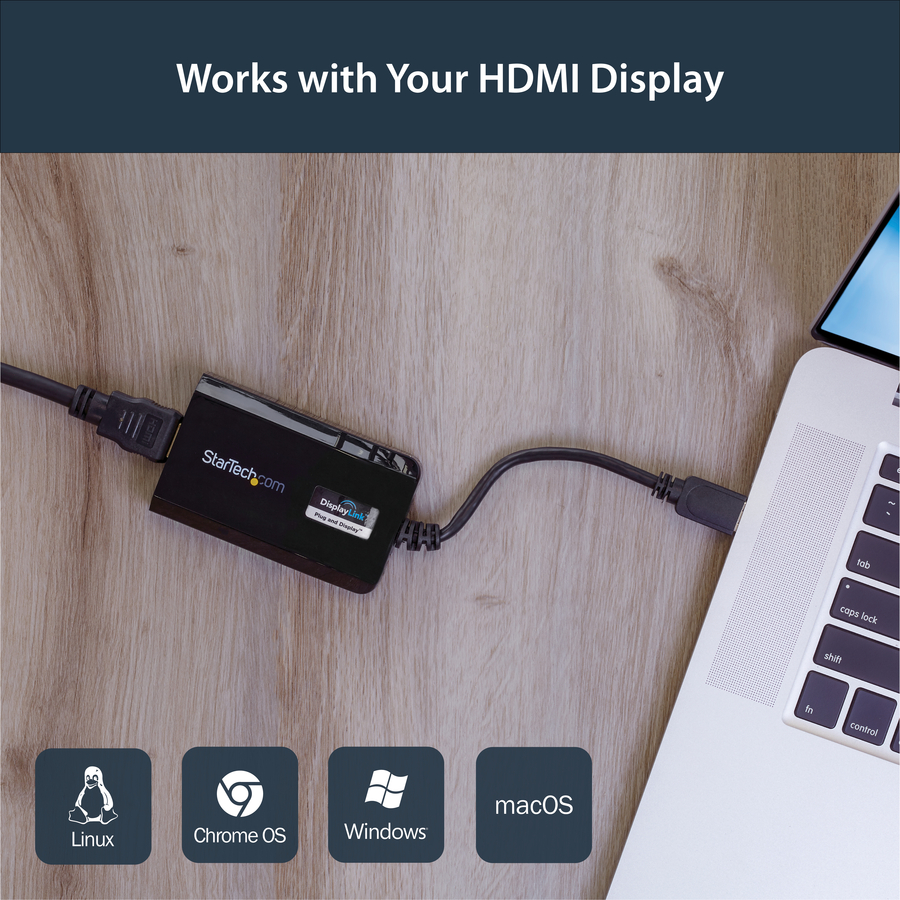

HDMI output |
Yes |
|
DisplayPort output |
No |
|
Number of displays supported |
1 |
|

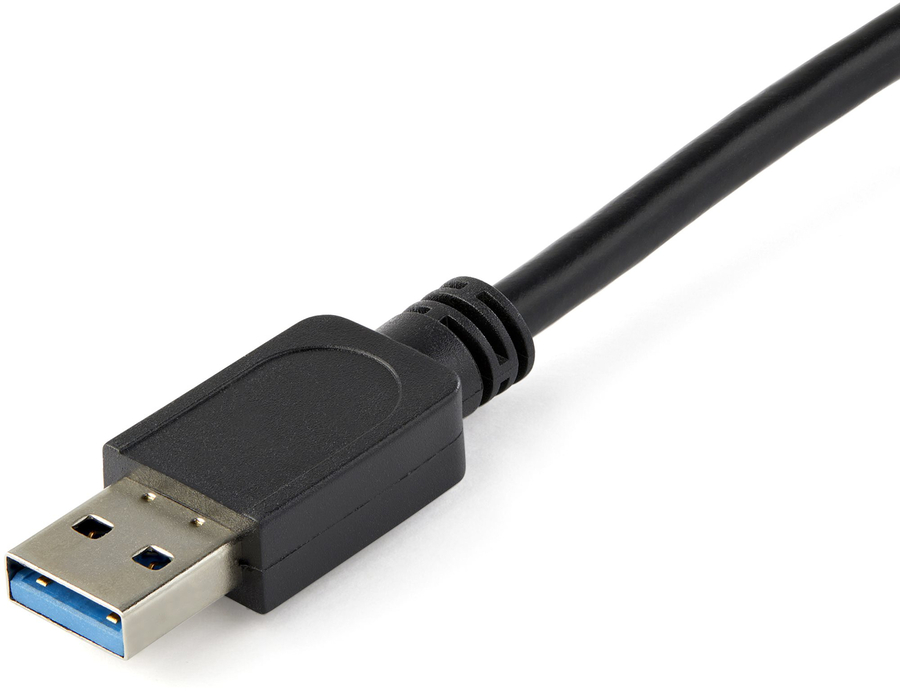

USB connector type |
USB Type-A |
|
USB connector gender |
Male |
|
USB connector form factor |
Straight |
|
Internal memory |
512 MB |
|
Internal memory type |
DDR2 |
|

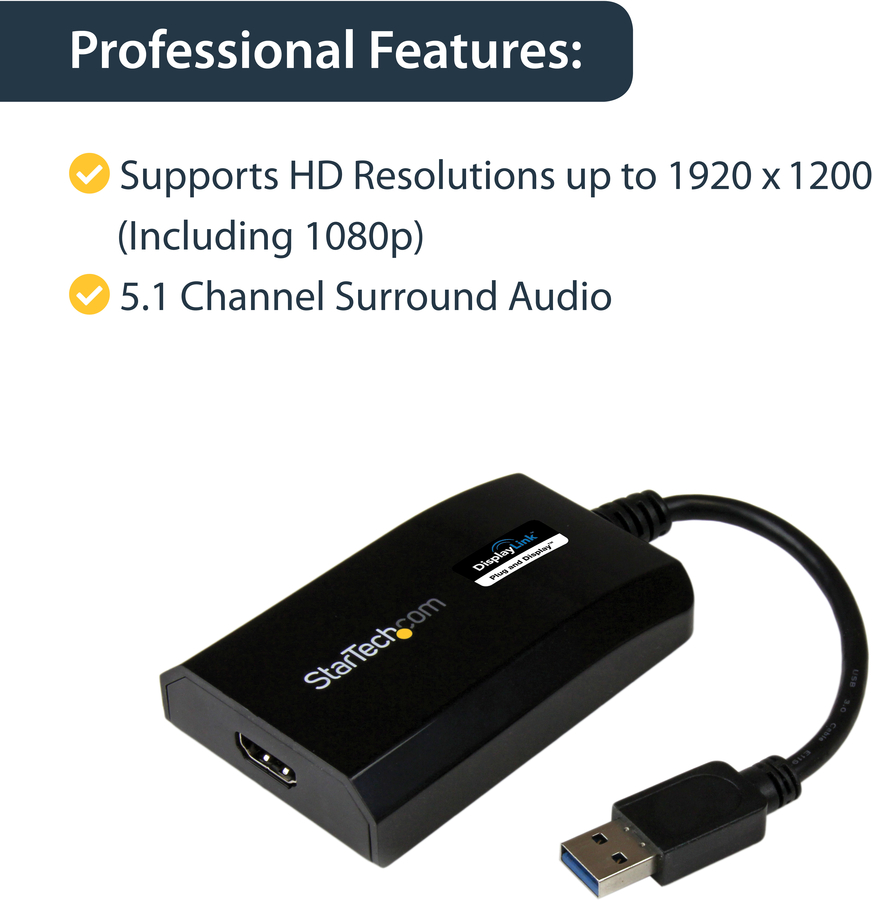

Maximum resolution |
1920 x 1200 pixels |
|
Supported graphics resolutions |
1280 x 960, 1600 x 900, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 800 x 600 (SVGA) |
|
Supported video modes |
1080p, 720p |
|
Output colour depth |
16/32 bit |
|
Audio output channels |
5.1 channels |
|
Chipset |
DisplayLink - DL-3500 |
|
USB pass-through |
No |
|
Certification |
CE, FCC, DisplayLink |
|
Design |
|
Product colour |
Black |
|
Housing material |
Plastic |
|
Integrated USB cable |
Yes |
|
USB cable length |
0.9 m |
|
System requirements |
|
Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
|
Mac compatibility |
Yes |
|
Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
|
Linux operating systems supported |
Ubuntu 14.04, Ubuntu 16.04, Ubuntu 18.04 LTS |
|
Other operating systems supported |
ChromeOS |
|
Minimum processor family |
Core i5 |
|
Minimum processor speed |
2.4 GHz |
|
Minimum RAM |
4 GB |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 35 °C |
|
Storage temperature (T-T) |
20 - 80 °C |
|
Operating relative humidity (H-H) |
-5 - 40% |
|
Weight & dimensions |
|

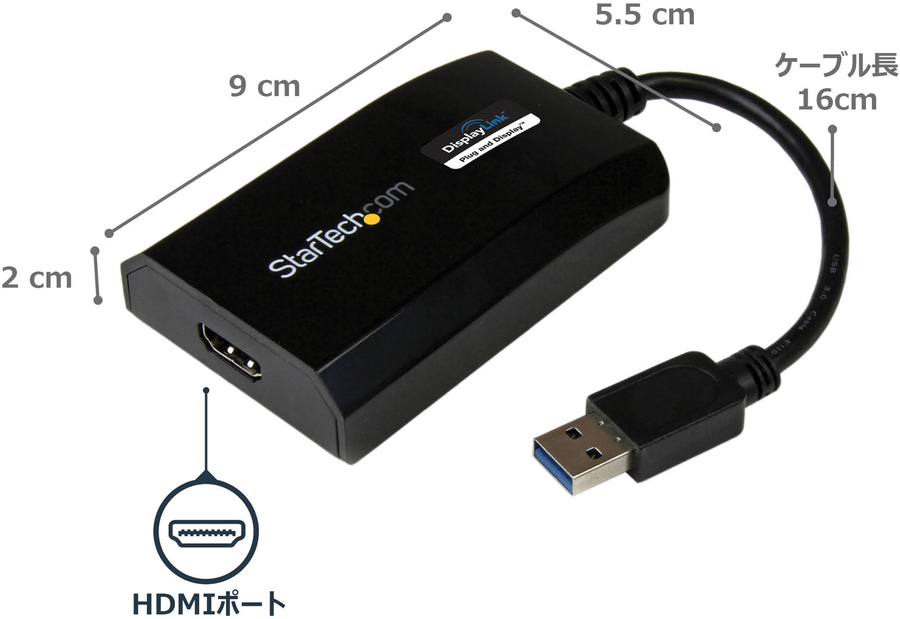

Width |
55 mm |
|
Depth |
90 mm |
|
Height |
20 mm |
|
Weight |
62 g |
|
Package width |
145 mm |
|
Package depth |
212 mm |
|
Package height |
40 mm |
|
Package weight |
196 g |
|

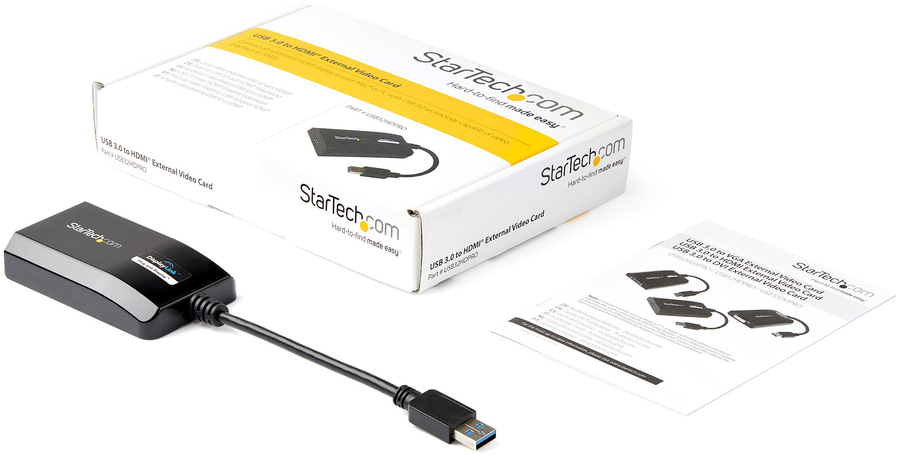

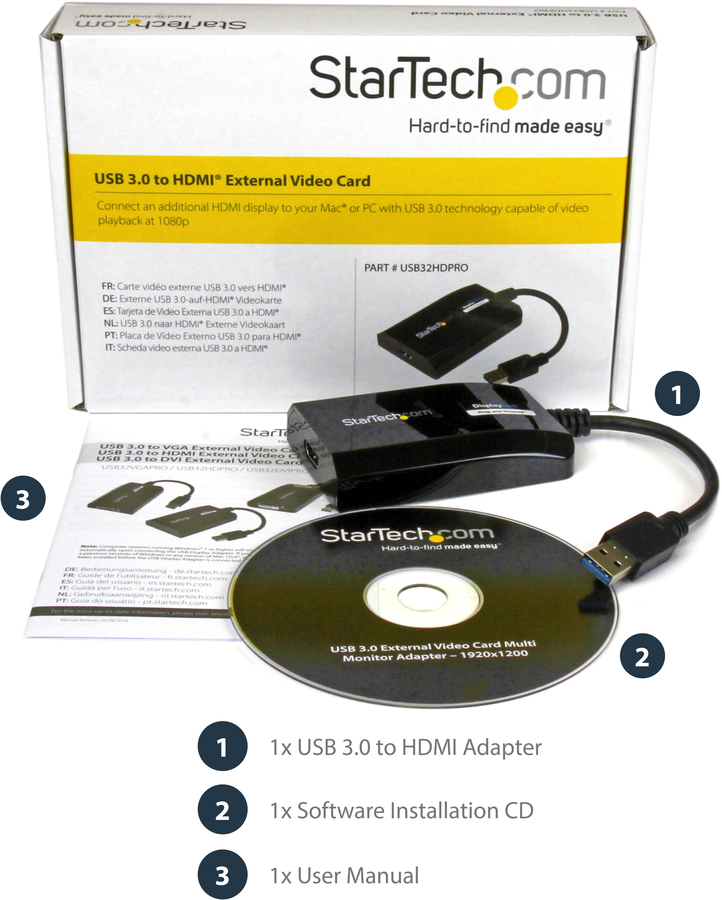

Packaging content |
|
Manual |
Yes |
|
Software CD |
Yes |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
Logistics data |
|
Products per master (outer) case |
40 pc(s) |
|
Master (outer) case width |
427 mm |
|
Master (outer) case length |
442 mm |
|
Master (outer) case height |
329 mm |
|
Harmonized System (HS) code |
84733020 |
|
