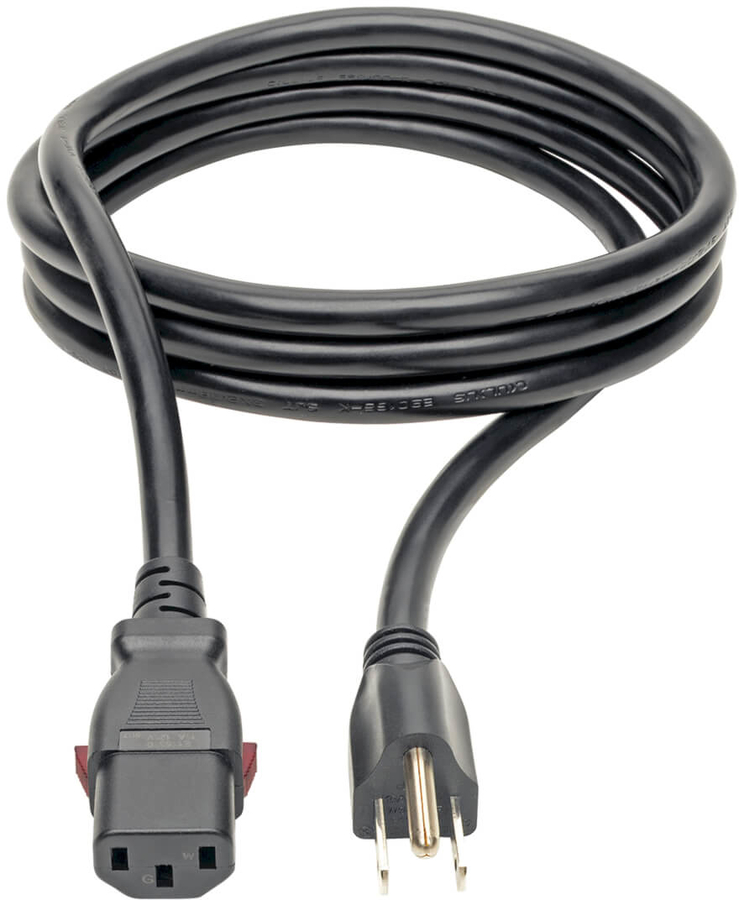

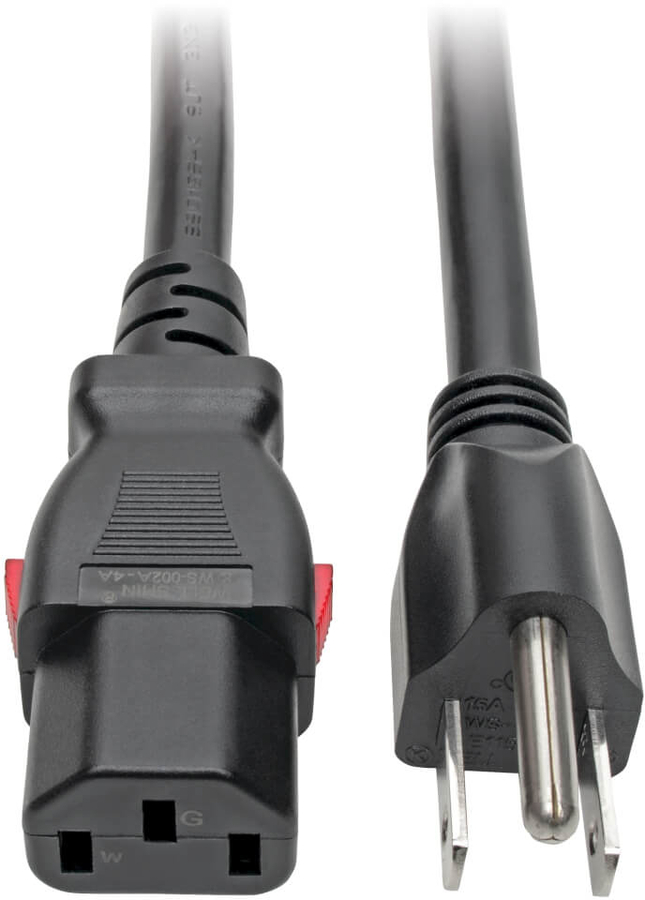

Tripp Lite IEC-320-C13 to NEMA 5-15P Power Cord – Locking C13 Connector, 15A, 125V, 14 AWG, 6-Foot, Black
|
|
Price: $23.00
Manufacturer:
Tripp Lite
IEC-320-C13 to NEMA 5-15P Power Cord – Locking C13 Connector, 15A, 125V, 14 AWG, 6 ft., Black
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58120302
|
P007-L06
|
37332218339 |
Active
|
Details
|
General Information |
|
Summary |
NEMA 5-15P to C13 Power Cable for Devices That Require a Heavy-Gauge Connection
This IEC-320-C13 to NEMA 5-15P power cord features 14 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. You can use it to connect a computer, server, monitor, laser printer or drive to a PDU, UPS, surge protector or AC wall outlet. It can also replace or upgrade the standard power cord provided by the device’s manufacturer. The six-foot length allows you flexibility in placing equipment with respect to the power outlet.

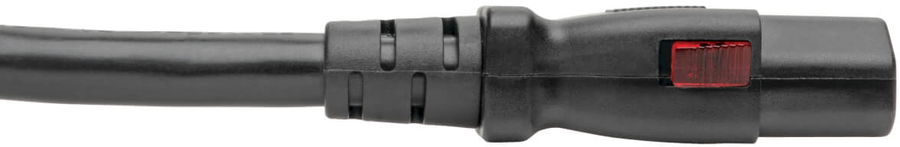

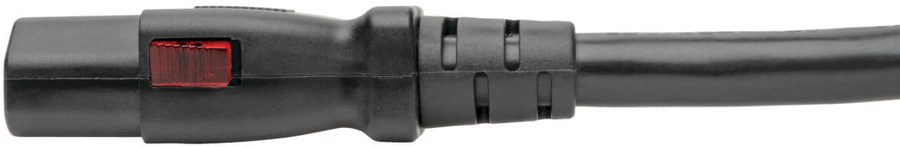

Locking C13 Connector Helps Prevent Accidental Disconnection and Expensive Downtime
Having a cable come loose accidentally can mean the loss of power and costly downtime. The locking C13 connector helps you avoid such danger, protecting critical equipment by maintaining a secure link without failure. The locking cable is also invaluable when moving equipment in a rack or removing equipment from tight areas, ensuring the power cord always stays connected.
Lifetime Warranty
The P007-L06 is backed by a lifetime warranty, ensuring reliability and performance.
- Computer power cord connects a server, computer, monitor, printer or other device with a C14 inlet to an AC outlet on a PDU
- Recommended for powering larger servers, laser printers and other network devices
- 6 ft. length allows flexibility in placing devices in relationship to AC outlet
- Thick 14 AWG wire gauge manages high power levels required for larger equipment
- Locking C13 connector maintains secure link to avoid loss of power and costly downtime |
|
Features |
|
Product colour |
Black |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Female |
|
Cable length |
1.8 m |
|
Connector 1 |
NEMA 5-15P |
|
Connector 2 |
IEC C13 |
|
Connector 1 standard |
NEMA 5-15P |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
Connector 2 lockable |
Yes |
|
Suitable for use in country/location |
North America |
|
AWG wire size |
14 |
|
Number of conductors |
3 |
|
Power |
|
Input voltage |
125 V |
|
Maximum current |
15 A |
|
Operational conditions |
|
Operating temperature (T-T) |
-20 - 105 °C |
|
Storage temperature (T-T) |
-20 - 105 °C |
|
Operating relative humidity (H-H) |
0 - 65% |
|
Certificates |
|
Certification |
UL Listed |
|
Packaging data |
|
Package width |
180.1 mm |
|
Package depth |
12.7 mm |
|
Package height |
254 mm |
|
Package weight |
310 g |
|
Logistics data |
|
Master (outer) case GTIN (EAN/UPC) |
10037332218336 |
|
Master (outer) case width |
450.1 mm |
|
Master (outer) case length |
25.4 mm |
|
Master (outer) case height |
450.1 mm |
|
Master (outer) case gross weight |
3.17 kg |
|
Products per master (outer) case |
10 pc(s) |
|
Other features |
|
Country of origin |
China |
|
