General Information |
|
Summary |

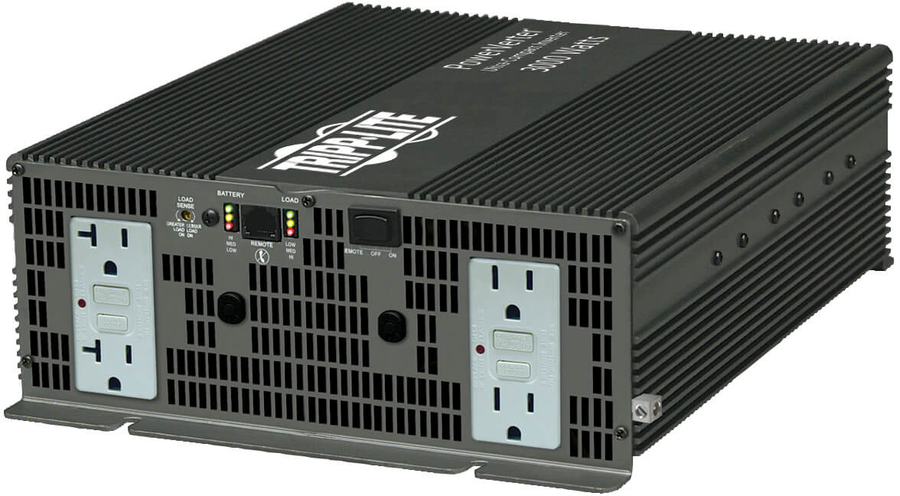

Utilize your vehicle's battery to efficiently power office equipment on the road or power tools at a work site. Continuously supplies up to 3000 watts of 120V AC power to 4 AC GFCI protected outlets from any 12V battery or automotive DC source. Includes a PV remote and 25 feet of cable. Super-compact, lightweight metal case design is among the smallest, most rugged inverters available at this power level. Conforms to OSHA 1926.404 (b) (1) (ii)
- Converts DC power into 3000 watts of continuous 120V AC power.
- 15- and 20-amp outlets provide 120V AC power.
- Includes "Battery Saver" low voltage alarm/shutdown.
- Heavy-duty DC input terminals assure solid connection to battery. Dual connections provide high wattage to support heavy equipment loads.
- Operating mode switch controls inverter operation.
- Remote control jack provides optional remote monitoring and control (when used with FREE, included LED/switch module).
- Remote Control LED/Switch Module controls and monitors your inverter from virtually anywhere within your vehicle with use of included extra-long cable. Allows multiple mounting options, including behind or below a dashboard or compartment. Features daisy-chain capability.
- Battery charge level LEDs indicate the approximate charge level (high/medium/low) of connected batteries.
- Connected load level LEDs indicate the approximate wattage load level (high/medium/low) of connected equipment.
- Sturdy extruded aluminum case stands up to the toughest work environments.
- Battery conservation charge dial conserves battery power by setting the low-load level at which the inverter automatically shuts off.
- Cooling fans provide cooler operation, lengthening inverter service life.
- Circuit breakers guard the inverter against potentially damanging equipment overload.
- Mounting flanges provide safe, fixed installation.
- Grooved cooling surface provides additional surface area for more efficient cooling.
- Grounding lug connects to vehicle ground. |
|
Features |
|
Output power |
3000 W |
|
Output voltage |
120 V |
|
Country of origin |
China |
|
Design |
|
Product colour |
Black |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Weight & dimensions |
|
Width |
266.7 mm |
|
Depth |
342.9 mm |
|
Height |
101.6 mm |
|
Weight |
6.35 kg |
|
Packaging data |
|
Package width |
106.7 mm |
|
Package depth |
406.4 mm |
|
Package height |
281.9 mm |
|
Package weight |
7.48 kg |
|
Logistics data |
|
Harmonized System (HS) code |
8504.40.9570 |
|
Master (outer) case width |
322.6 mm |
|
Master (outer) case length |
421.6 mm |
|
Master (outer) case height |
297.2 mm |
|
Master (outer) case gross weight |
16 kg |
|
Products per master (outer) case |
2 pc(s) |
|
Master (outer) case GTIN (EAN/UPC) |
10037332146592 |
|
Other features |
|
I/O ports |
4 x NEMA 5-15R |
|
Package dimensions (W x D x H) |
317.5 x 375.9 x 109.2 mm (12.5 x 14.8 x 4.3") |
