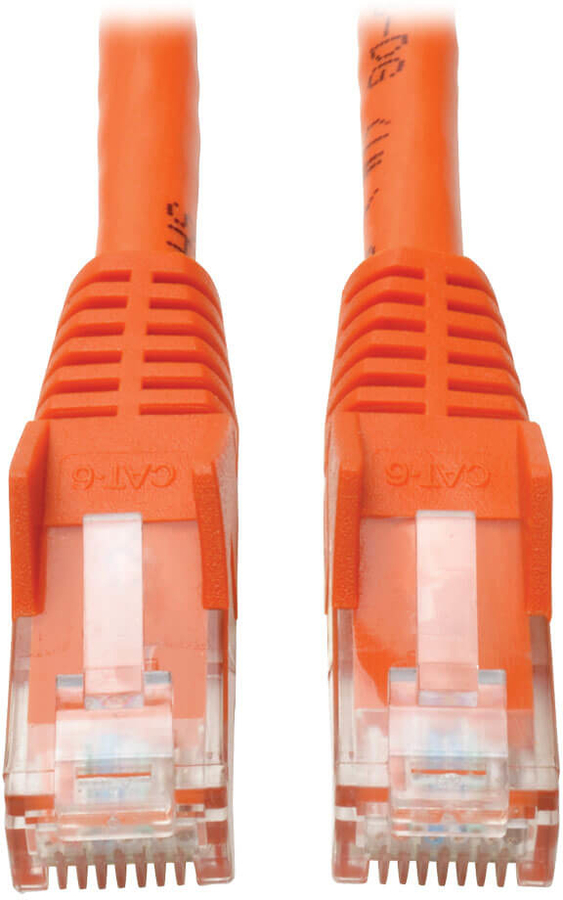

Tripp Lite Premium Cat6 Gigabit Snagless Molded UTP Patch Cable, 24 AWG, 550 MHz/1 Gbps (RJ45 M/M), Orange, 50-Foot
|
|
Price: $20.00
Manufacturer:
Tripp Lite
Cat6 Gigabit Snagless Molded (UTP) Ethernet Cable (RJ45 M/M), PoE, Orange, 50 ft. (15.24 m)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58120579
|
N201-050-OR
|
37332204950 |
Active
|
Details
|
General Information |
|
Summary |
The N201-050-OR Cat6 Gigabit Snagless Molded UTP Patch Cable (M/M) is recommended for distributing data, voice and video through computers, network adapters, routers, servers, modems, hubs and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this cable ensures peak performance throughout your local area network (LAN). It reduces impedance and structural return loss compared to standard 100 MHz wire.
This 50-ft. (15.24 m) orange cable is designed for 1000Base-T (1 Gbps Ethernet), 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications. Manufactured from 24 AWG four-pair solid UTP with a rugged PVC jacket, the N201-050-OR delivers speeds up to 550 MHz/1 Gbps and flawless signal delivery, while keeping near-end crosstalk levels to a minimum.

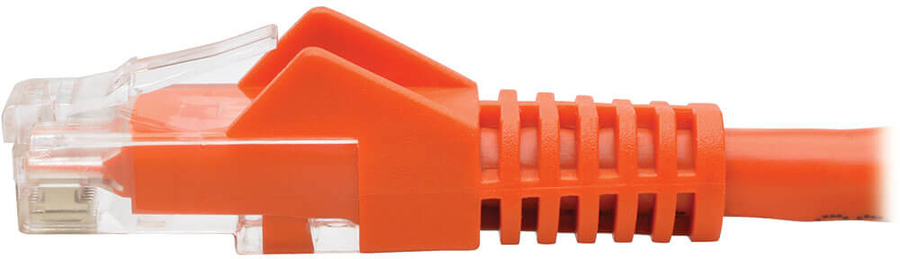

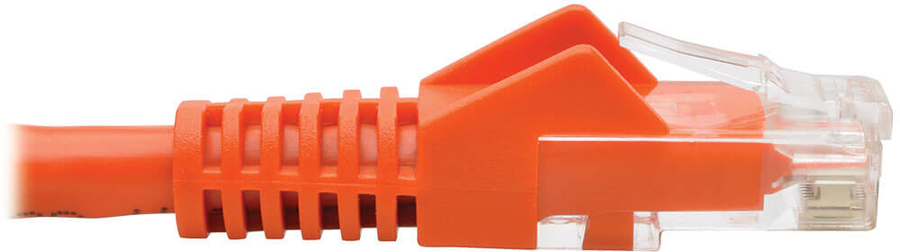

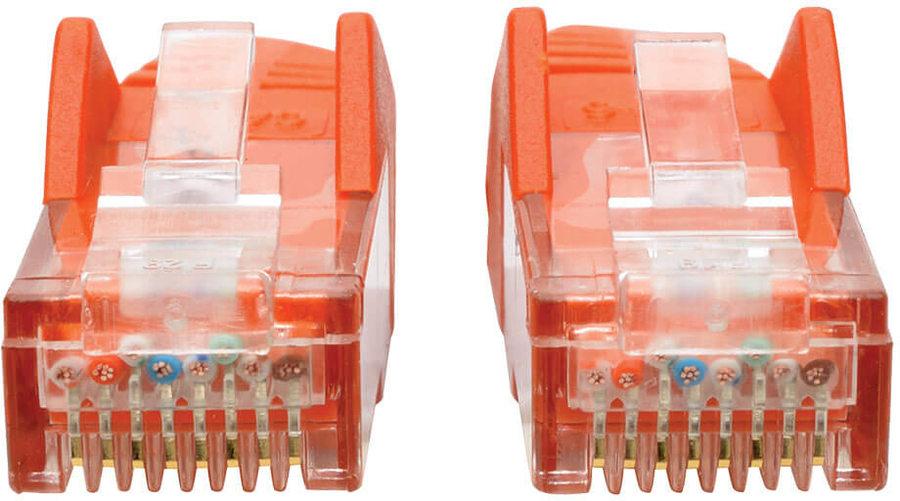

The RJ45 short-body connectors' snagless design protects the locking tabs from being damaged or broken off during installation. Corrosion-resistant gold-plated copper contacts provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking. Meets most other current industry standards, including IEEE 802.3ab, 802.5, ISO/IEC 11801 and ETL (Cat6 draft 11). |
|
Features |
|
Cable length |
15.2 m |
|
Cable standard |
Cat6 |
|
Cable shielding |
U/UTP (UTP) |
|
Connector 1 |
RJ-45 |
|
Connector 2 |
RJ-45 |
|
Product colour |
Orange |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Jacket material |
Nylon/Polyvinyl Chloride (PVC) |
|
Conductor type |
Solid |
|
Twisted pair coupling type |
4x2 |
|
Cabling technology |
10/100/1000Base-T(X) |
|
Networking standards |
IEEE 802.3ab, IEEE 802.5 |
|
AWG wire size |
24 |
|
Country of origin |
China |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Packaging data |
|
Package width |
203.2 mm |
|
Package depth |
12.7 mm |
|
Package height |
254 mm |
|
Package weight |
610 g |
|
Logistics data |
|
Harmonized System (HS) code |
8544.42.2000 |
|
Master (outer) case GTIN (EAN/UPC) |
10037332204957 |
|
Master (outer) case width |
355.6 mm |
|
Master (outer) case length |
152.4 mm |
|
Master (outer) case gross weight |
6.12 kg |
|
Master (outer) case height |
355.6 mm |
|
Products per master (outer) case |
10 pc(s) |
|
