General Information |
|
Summary |

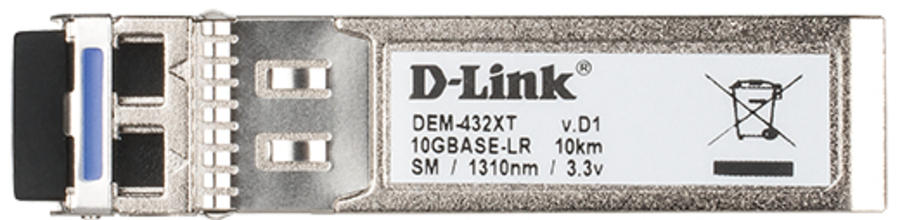

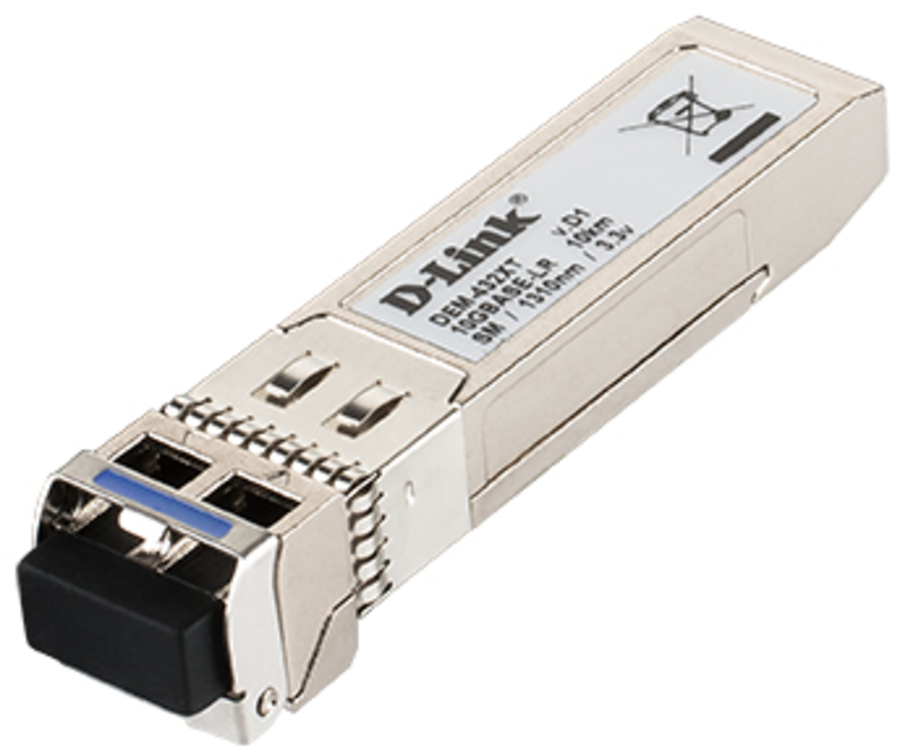

D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.
Enhanced Small Form-factor Pluggable Format
The transceivers use the Enhanced Small Formfactor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable.
Hot Pluggable
All D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This permits modules to be added or removed without interrupting the network.
10G Ethernet speeds
The transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs. |
|
Performance |
|
SFP transceiver type |
Fiber optic |
|
Maximum data transfer rate |
10000 Mbit/s |
|
Interface type |
SFP+ |
|
Single-mode fiber (SMF) supported |
Yes |
|
Multi-mode fiber (MMF) supported |
No |
|
Fiber optic connector |
LC |
|
Fiber cable diameters supported (core/cladding) |
9/125 µm |
|
SFP transceiver standard |
LR |
|
Maximum transfer distance |
10000 m |
|
Wavelength |
1310 nm |
|
Tx power (min) |
-8.5 dBmW |
|
Tx power (max) |
0.5 dBmW |
|
Rx power (min) |
-12.6 dBmW |
|
Rx power (max) |
0.5 dBmW |
|
Link budget |
10.1 dB |
|
Networking standards |
IEEE 802.3ae |
|
Fiber ethernet cabling technology |
10GBASE |
|
Duplex system |
Full |
|
Features |
|
Product colour |
Gold, Metallic |
|
Hot-Plug support |
Yes |
|
Mean time between failures (MTBF) |
4650000 h |
|
Power |
|
Maximum voltage |
3.3 V |
|
Maximum current |
300 A |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Safety |
UL, TUV, CDRH |
|
Certification |
CE, FCC, VCCI, MSA |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 70 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Operating relative humidity (H-H) |
5 - 85% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Weight & dimensions |
|
Width |
14.8 mm |
|
Depth |
11.8 mm |
|
Height |
56.5 mm |
|
Weight |
19.5 g |
|
Packaging data |
|
Package width |
74 mm |
|
Package depth |
131 mm |
|
Package height |
49 mm |
|
Package weight |
64 g |
|
Logistics data |
|
Shipping (inner) case length |
36 cm |
|
Shipping (inner) case width |
26 cm |
|
Shipping (inner) case height |
31 cm |
|
Shipping (inner) case net weight |
3.2 kg |
|
Products per shipping (inner) case |
50 pc(s) |
|
Pallet gross weight (air) |
272 kg |
|
Master (outer) cases per pallet (air) |
60 pc(s) |
|
Products per pallet (air) |
3000 pc(s) |
|
Pallet gross length |
102 cm |
|
Pallet gross width |
122 cm |
|
Pallet height (air) |
199 cm |
|
Pallet gross weight (sea) |
272 kg |
|
Master (outer) cases per pallet (sea) |
60 pc(s) |
|
Products per pallet (sea) |
3000 pc(s) |
|
Pallet height (sea) |
199 cm |
|
Shipping (inner) case gross weight |
4.2 kg |
|
Harmonized System (HS) code |
85369010 |
