Tripp Lite 16.4-Foot MTP/MPO to 8xLC Fan-Out Patch Cable, 40 GbE, 40GBASE-SR4, OM4 Plenum-Rated, Push/Pull Tab, Magenta
|
|
Price: $347.00
Manufacturer:
Tripp Lite
40G MTP/MPO to 4xLC Fan-Out OM4 Plenum-Rated Fiber Optic Cable, 40GBASE-SR4, Push/Pull Tabs, Magenta, 5 m
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58121094
|
N845-05M-8L-MG
|
37332200075 |
Active
|
Details
|
General Information |
|
Summary |

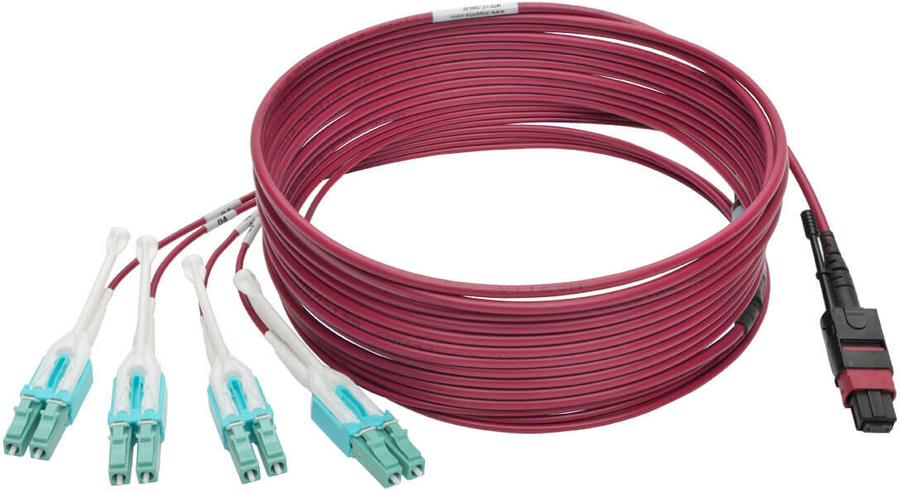

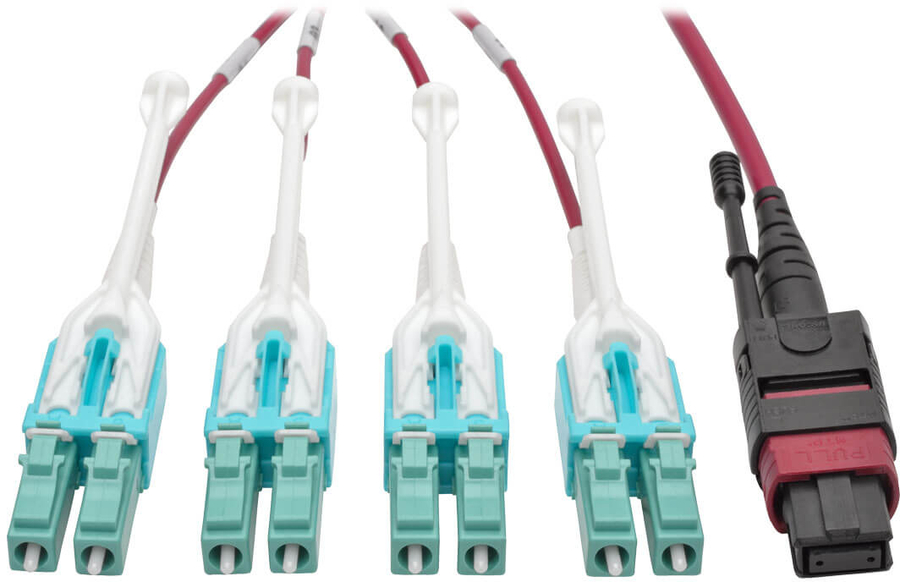

The five-meter N845-05M-8L-MG MTP/MPO to 8xLC Fan-Out Patch Cable supports 40 Gb Ethernet speeds and is designed for high-density connections between 40GBASE-SR4 network equipment. With one male MTP/MPO and eight male LC connectors, this OM4-rated multimode fiber optic fan-out cable supports various multi- and single-fiber connections. It fully transmits 40GBASE-SR with four fibers transmitting at 10 Gbps in each direction. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections.

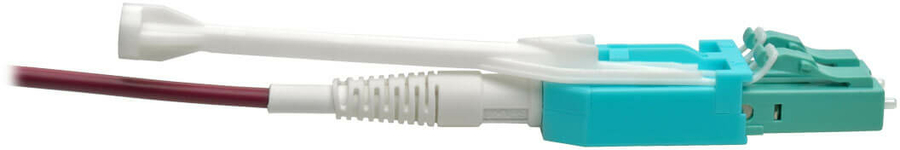

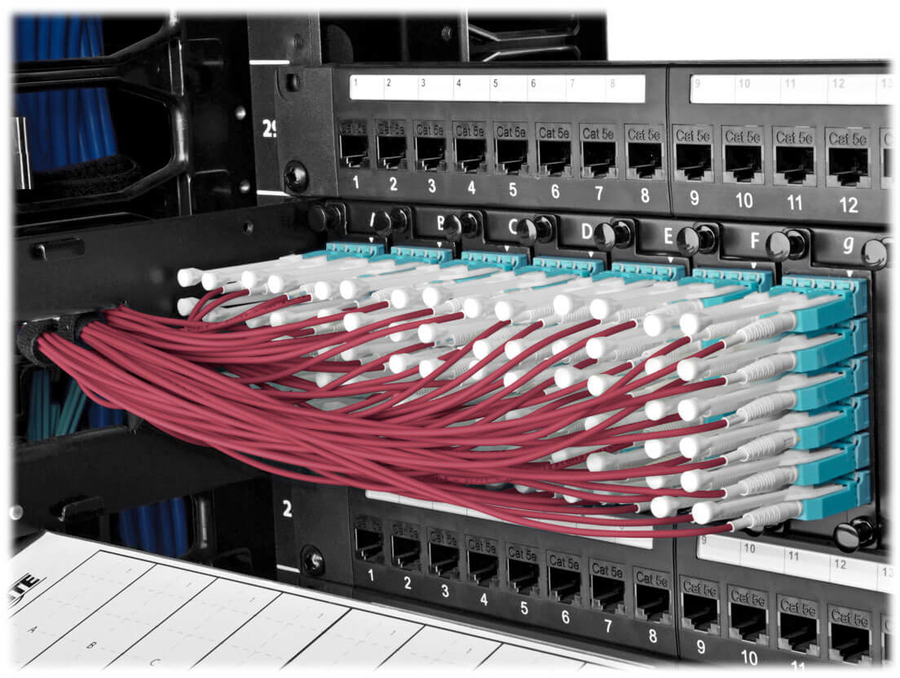

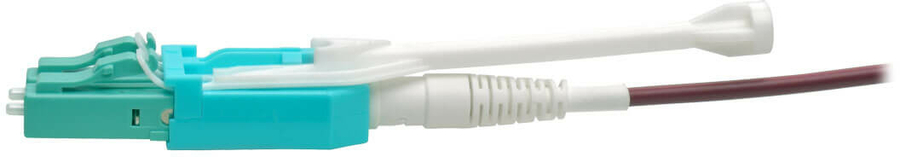

Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The magenta-colored N845-05M-8L-MG features a premium-grade ceramic ferrule for 10 GbE and faster applications. The slim, space-saving uniboot design makes cable easier to manage. The plenum-rated jacket is perfect for connecting high-speed network components in ceilings, walls and ducts. The sturdy plastic housing is built to last a long time. |
|
Features |
|
Cable length |
5 m |
|
Cable type |
CMP |
|
Connector 1 |
MPO/MTP |
|
Connector 2 |
8x LC |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Female |
|
Product colour |
Black, Magenta, Turquoise |
|
Fibre optic type |
OM4 |
|
Core diameter |
50 µm |
|
Cladding diameter |
125 µm |
|
Fiber mode structure |
Multi-mode |
|
Data transfer rate |
100 Gbit/s |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Operational conditions |
|
Operating temperature (T-T) |
-20 - 60 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Packaging data |
|
Package width |
177.8 mm |
|
Package depth |
12.7 mm |
|
Package height |
228.6 mm |
|
Package weight |
100 g |
|
Logistics data |
|
Master (outer) case GTIN (EAN/UPC) |
10037332200072 |
|
Country of origin |
China |
|
Master (outer) case width |
154.9 mm |
|
Harmonized System (HS) code |
8544.70.0000 |
|
Master (outer) case length |
149.9 mm |
|
Master (outer) case height |
185.4 mm |
|
Master (outer) case gross weight |
1.02 kg |
|
Products per master (outer) case |
10 pc(s) |
|
