Tripp Lite Multi-Function Cable Tester with Wire Tracker (RJ45, RJ11, BNC, USB)
|
|
Regularly: $287.00
On Sale: $275.52
Sale Ends:
April 26th, 2024
Manufacturer:
Tripp Lite
Multi-Function Cable Tester with Wire Tracker (RJ45, RJ11, BNC, USB)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58121120
|
T010-001-K
|
37332189905 |
Active
|
Details
|
General Information |
|
Summary |

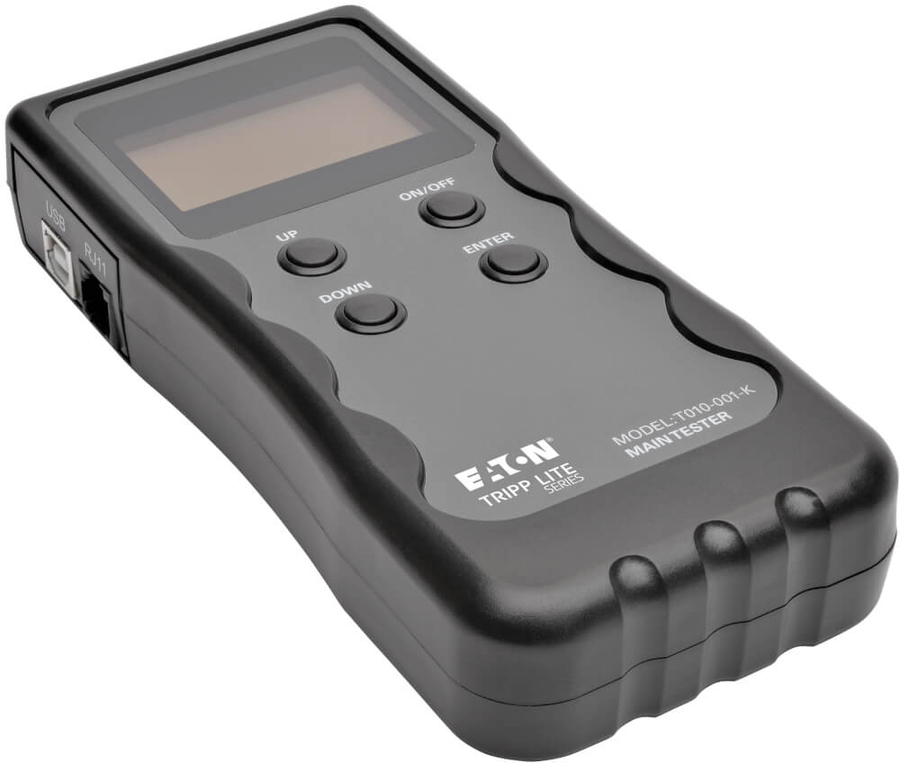

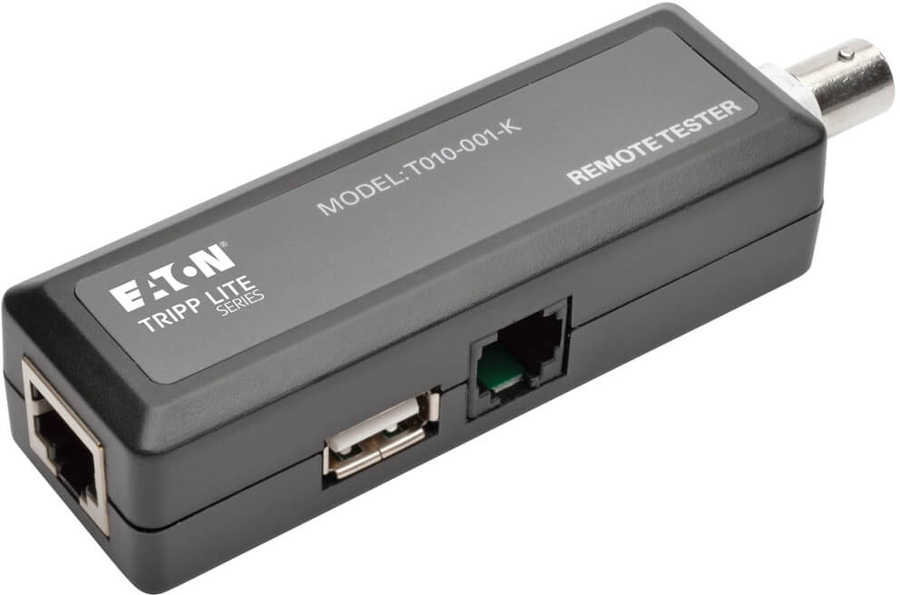

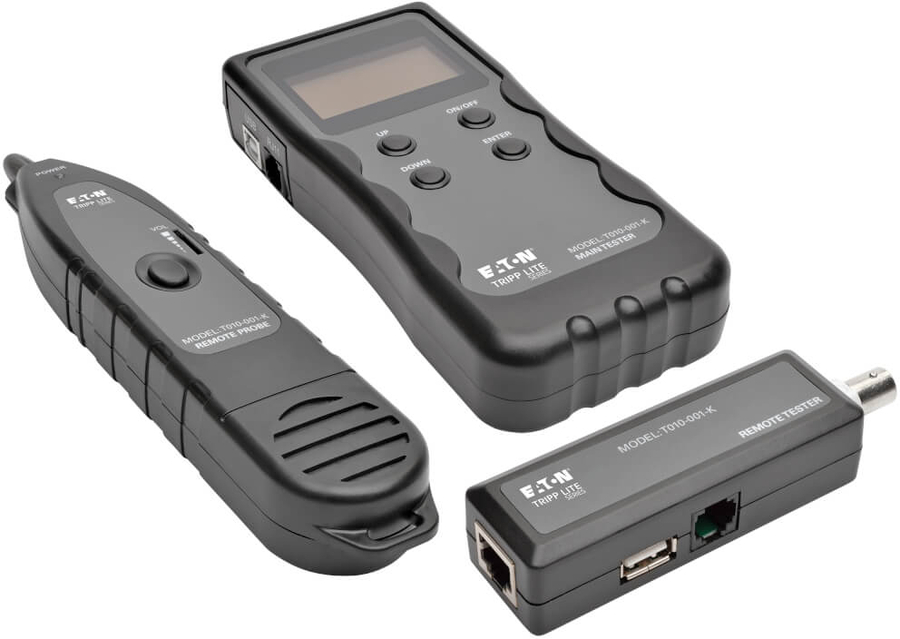

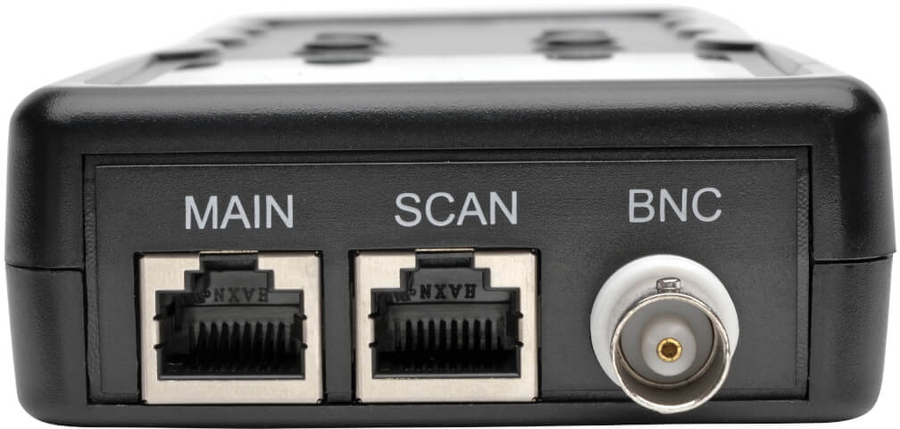

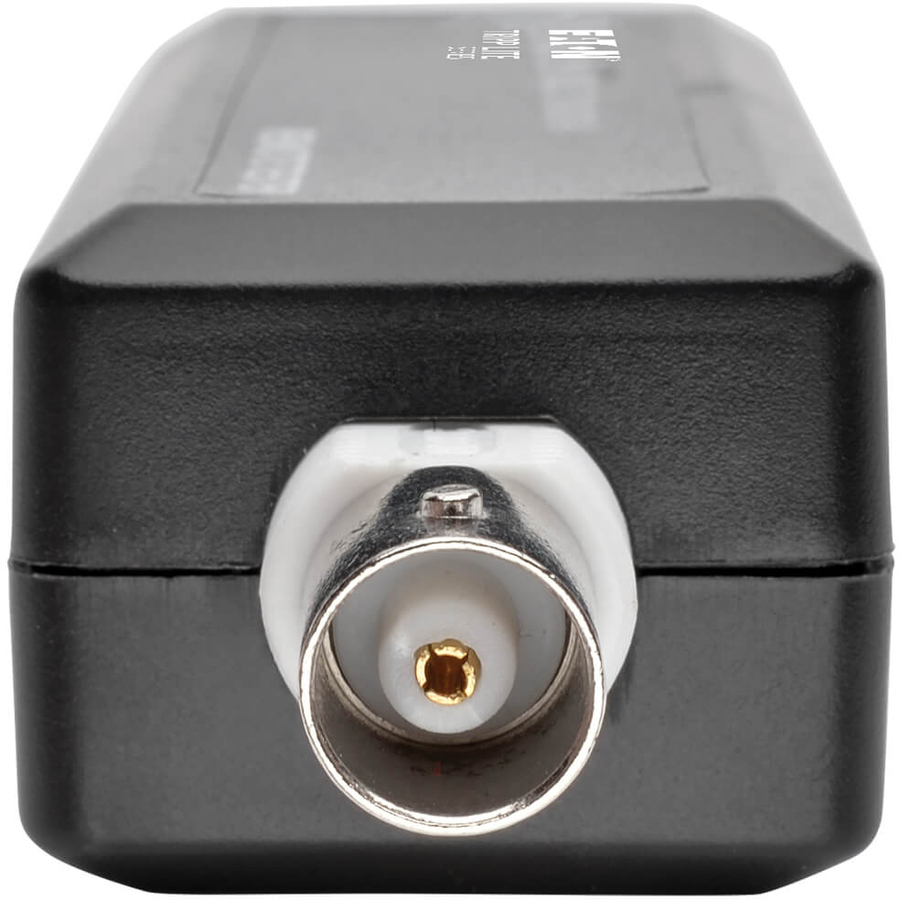

The T010-001-K Multi-Function Cable Tester is an essential tool for cable installers or anyone working in telecom or LAN environments. It allows you to test RJ45 (STP/UTP), RJ11, BNC and USB cable wiring, length, fault and location, as well as common metal wires using the included alligator clip adapter.
For instance, you can test wiring for open, short, cross, reverse and pairing connection. You can also track the location of an open circuit position, and determine the length of a cable – whether in a wall or on a spool – up to 4,920 feet (1,500 meters). The easy-to-read LCD interface includes a calibration function that lets you load saved data.

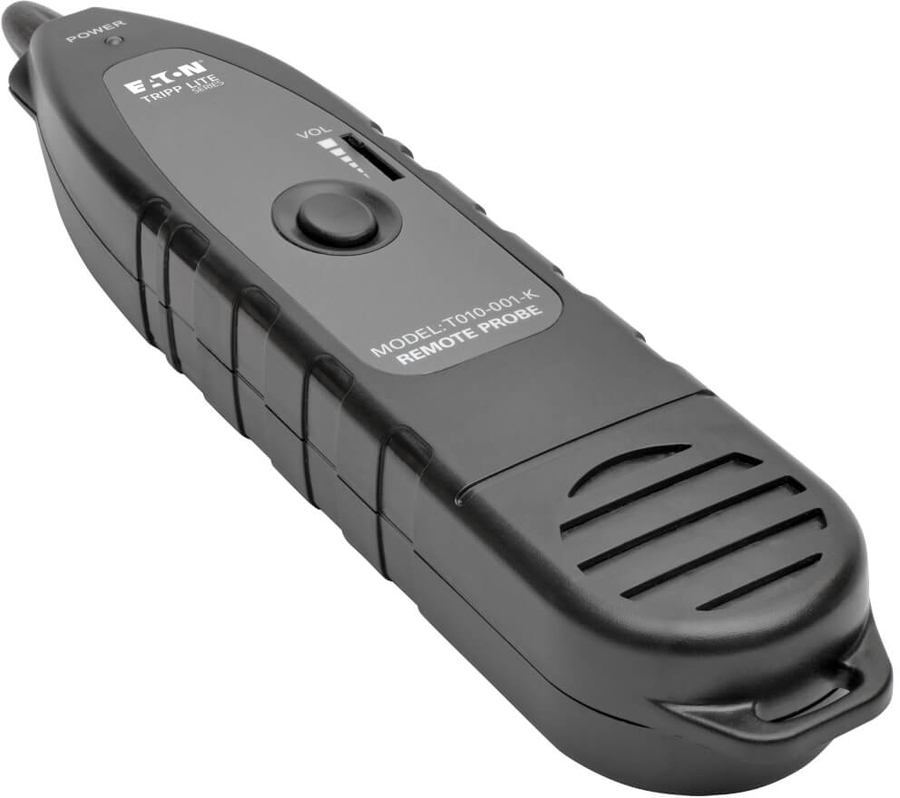

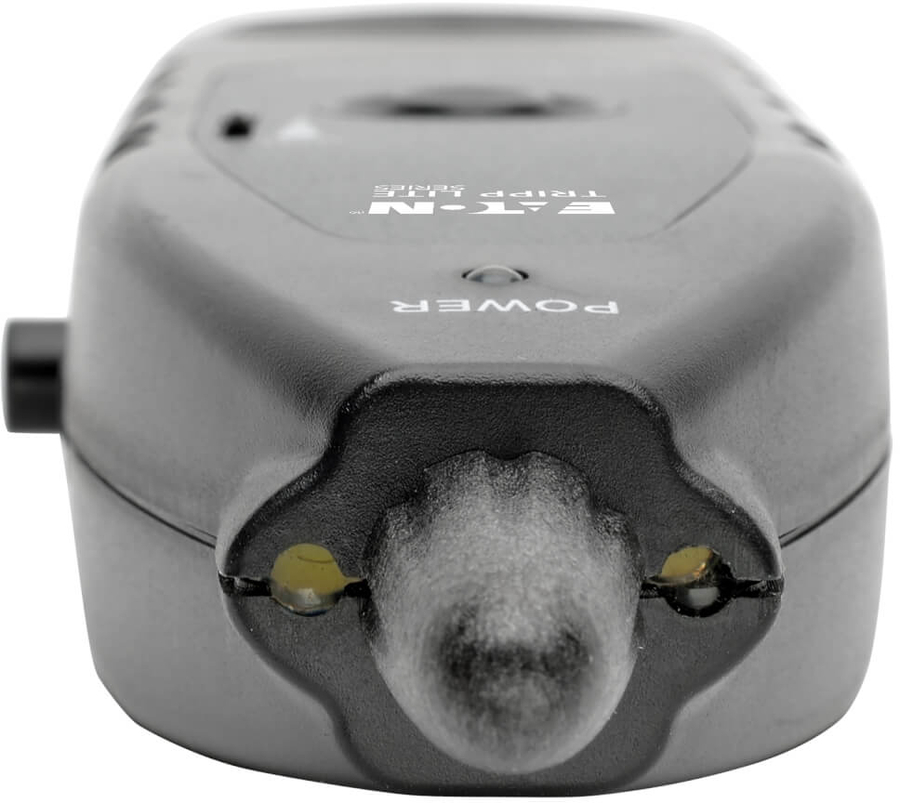

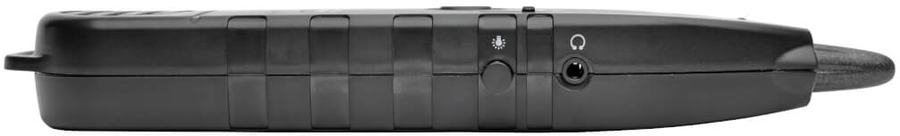

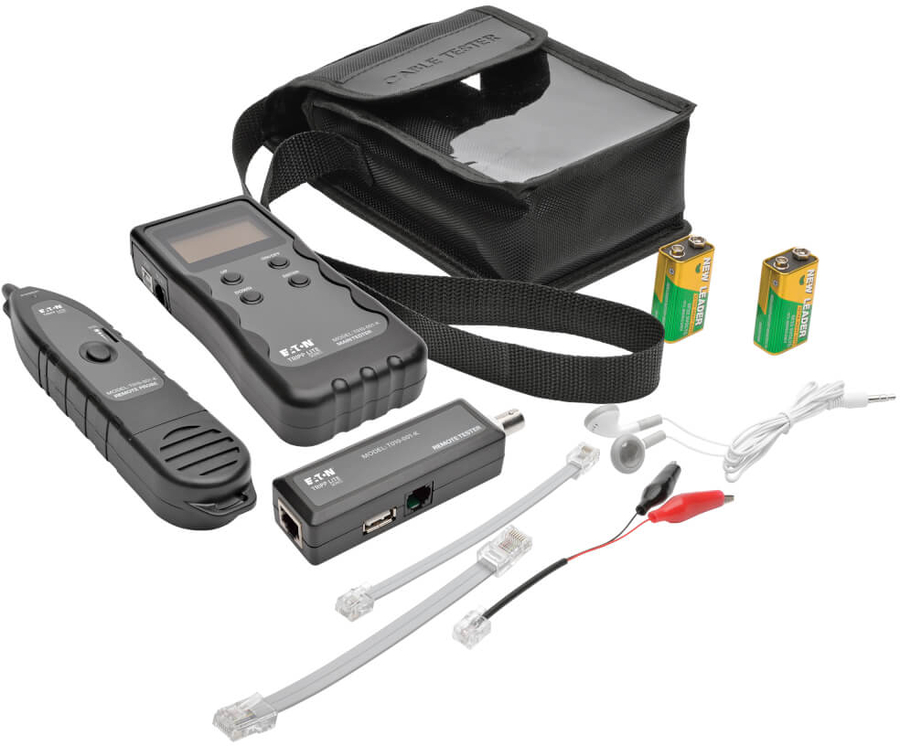

Powered by included 9-volt batteries, the T010-001-K can find an RJ45, RJ11, BNC or USB cable nestled within a group of cables. The auto-off function preserves battery power. The probe unit’s LED flashlight is handy for working in dark areas. Included headphones help you work in noisy areas. When not in use, the T010-001-K can be stored in its carrying case. |
|
Technical details |
|
Supported connectors |
BNC, RJ-11, RJ-45, USB |
|
Built-in display |
Yes |
|
Test type |
Short circuit testing |
|
Display type |
LCD |
|
Product colour |
Black |
|
Sustainability certificates |
RoHS |
|
Master (outer) case GTIN (EAN/UPC) |
10037332189902 |
|
Power |
|
Auto power off |
Yes |
|
Weight & dimensions |
|
Package width |
227.1 mm |
|
Package depth |
134.1 mm |
|
Package height |
84.1 mm |
|
Package weight |
580 g |
|
Packaging content |
|
Cables included |
LAN (RJ-45), Phone (RJ-11) |
|
Storage pouch |
Yes |
|
Manual |
Yes |
|
Batteries included |
Yes |
|
Logistics data |
|
Country of origin |
China |
|
Master (outer) case width |
450.1 mm |
|
Master (outer) case length |
290.1 mm |
|
Master (outer) case height |
260.1 mm |
|
Master (outer) case gross weight |
5.77 kg |
|
Products per master (outer) case |
10 pc(s) |
|
