Tripp Lite 75-Foot Cat5e 350 MHz Molded UTP Patch Cable (RJ45 M/M), Blue
|
|
Price: $20.00
Manufacturer:
Tripp Lite
Cat5e 350 MHz Molded (UTP) Ethernet Cable (RJ45 M/M), PoE - Blue, 75 ft. (22.86 m)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58121406
|
N002-075-BL
|
37332204288 |
Active
|
Details
|
General Information |
|
Summary |

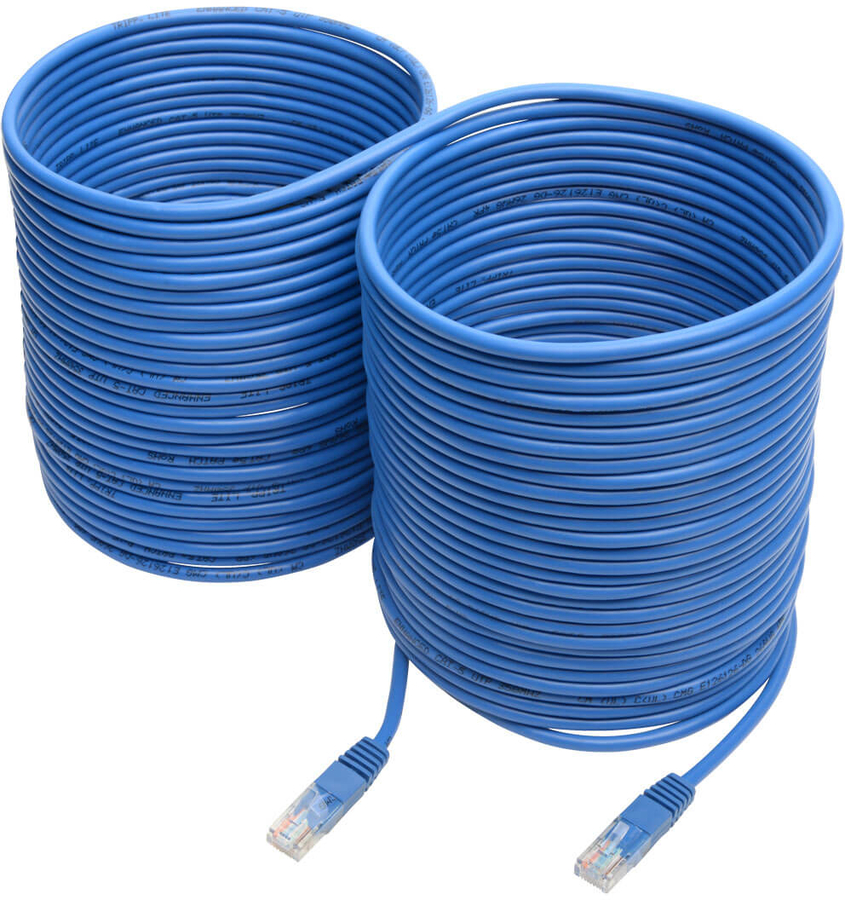

The N002-075-BL Cat5e 350 MHz Molded UTP Patch Cable (M/M) is recommended for connecting high-speed network components, such as computers, servers, printers, copiers, routers, Blu-ray players and switches, in high-density data centers. Designed for fast transmission and excellent signal quality, this 75-ft. (22.86 m) blue cable ensures peak performance throughout your Cat5/5e network.

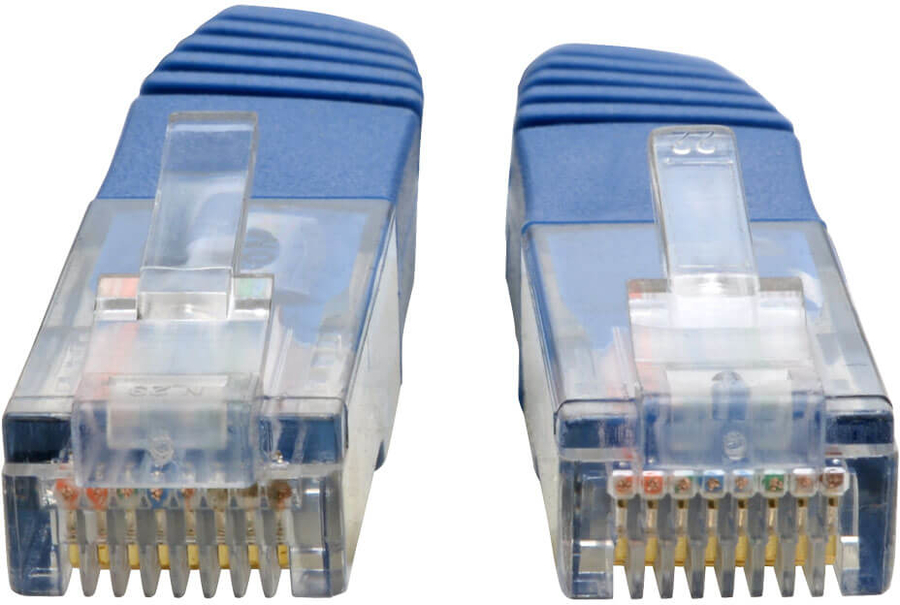

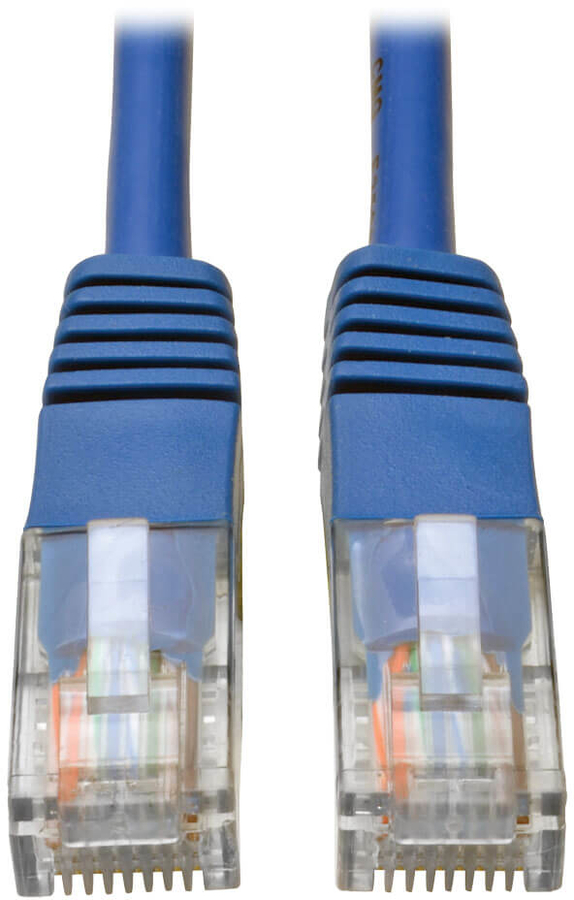

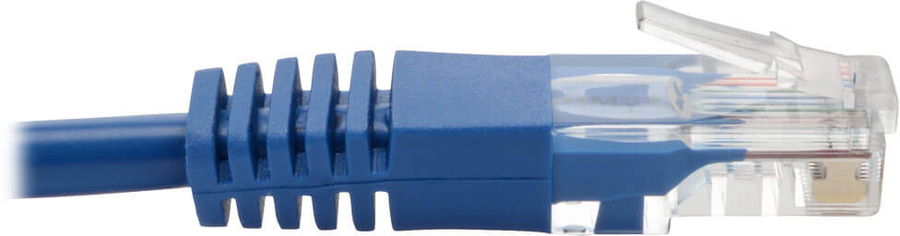

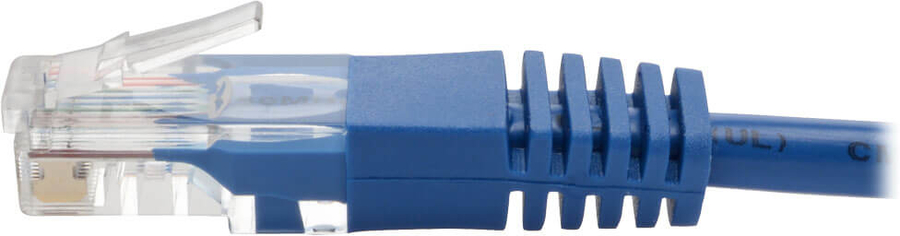

Manufactured from 26 AWG copper wire that cuts down on interference, the four-pair solid UTP N002-075-BL delivers speeds up to 350 MHz/1 Gbps. Near-end crosstalk levels are kept to a minimum. Integral strain relief on each end gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking. Molded RJ45 connectors and gold-plated contacts provide maximum conductivity and minimum data loss
Wrapped in a durable PVC jacket that resists corrosion, the N002-075-BL is designed for 1000Base-T (1 Gbps Ethernet), 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring Type 3 applications. It meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (Cat5e draft 11). |
|
Features |
|
Cable length |
22.86 m |
|
Cable standard |
Cat5e |
|
Cable shielding |
U/UTP (UTP) |
|
Connector 1 |
RJ-45 |
|
Connector 2 |
RJ-45 |
|
Product colour |
Blue |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Connector contacts plating |
Gold |
|
Jacket material |
Polyvinyl chloride (PVC) |
|
Conductor type |
Stranded |
|
Cabling technology |
10/100/1000Base-T(X) |
|
Networking standards |
IEEE 802.3ab, IEEE 802.5 |
|
AWG wire size |
26 |
|
Data transfer rate |
1000 Mbit/s |
|
Frequency |
350 MHz |
|
Plug and Play |
Yes |
|
Country of origin |
China |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Weight & dimensions |
|
Width |
254 mm |
|
Depth |
12.7 mm |
|
Height |
304.8 mm |
|
Weight |
690 g |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Packaging data |
|
Package width |
254 mm |
|
Package depth |
12.7 mm |
|
Package height |
304.8 mm |
|
Package weight |
690 g |
|
Logistics data |
|
Harmonized System (HS) code |
8544.42.2000 |
|
Master (outer) case GTIN (EAN/UPC) |
10037332204285 |
|
Master (outer) case width |
355.6 mm |
|
Master (outer) case length |
152.4 mm |
|
Master (outer) case gross weight |
7.31 kg |
|
Master (outer) case height |
355.6 mm |
|
Products per master (outer) case |
10 pc(s) |
|
