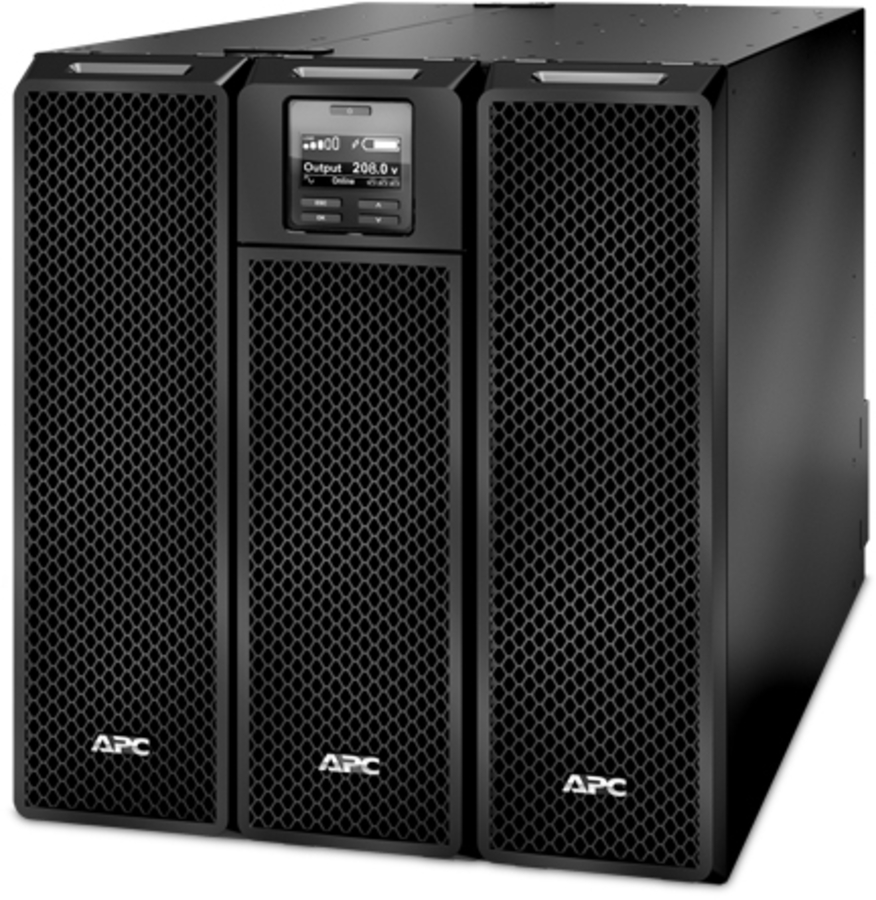

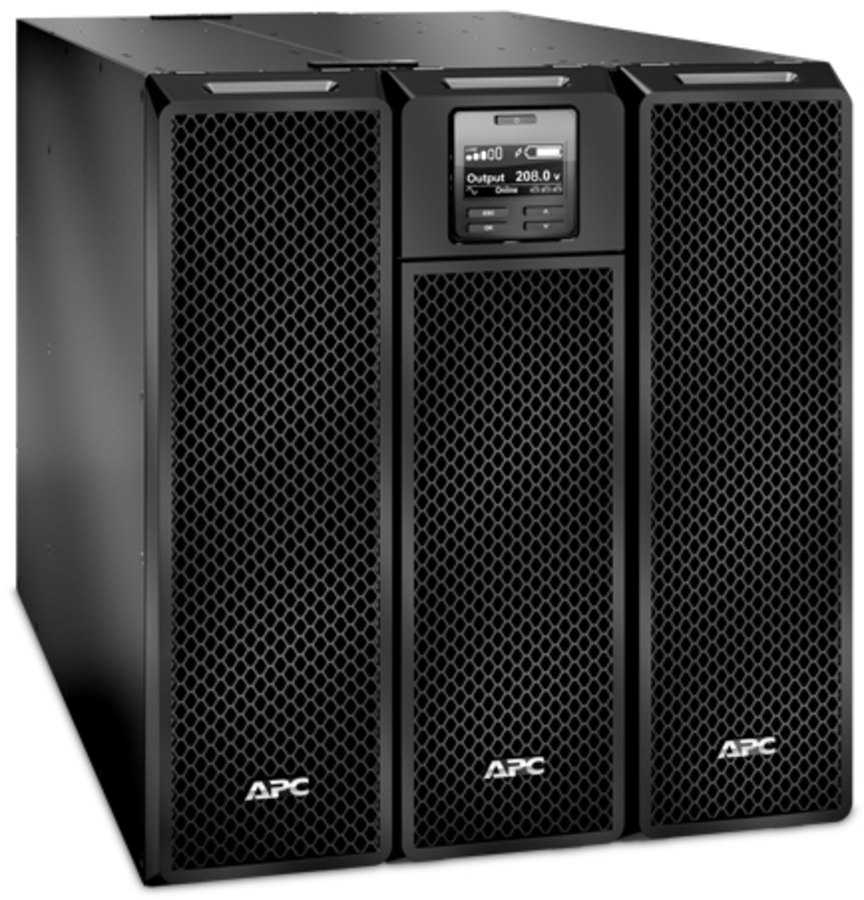

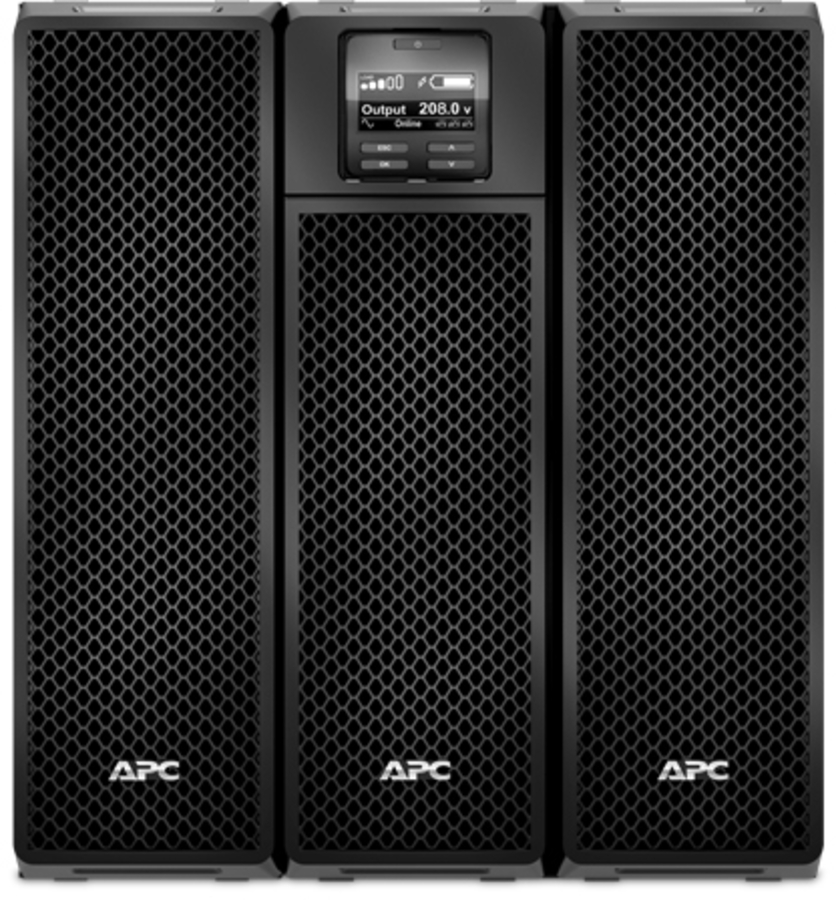

APC Smart-UPS SRT 8000VA with 208/240V to 120V Step-Down Transformer
|
|
Regularly: $12031.00
On Sale: $11489.60
Sale Ends:
October 6th, 2024
Manufacturer:
APC
8kW, 8kVA, 50/60Hz, 1716VAh, RJ-45, Serial, SmartSlot, USB, 480J, 392x715x432mm, 168.28kg, Black
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58121457
|
SRT8KXLT-5KTF
|
- |
Active
|
Details
|
General Information |
|
Summary |
Marketing Features
- Avoids costly power problems by keeping your IT equipment and data protected and available.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
- Low operating and maintenance costs with proven reliability and intelligent battery management.
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
- Save time with easy and convenient remote accessibility.
Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
- Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards. |
|
Features |
|
UPS topology |
Double-conversion (Online) |
|
Output power capacity |
8 kVA |
|
Output power |
8000 W |
|
Waveform |
Sine |
|
Input operation voltage (min) |
100 V |
|
Input operation voltage (max) |
275 V |
|
Input frequency |
40 - 70 Hz |
|
Output operation voltage (min) |
120 V |
|
Output operation voltage (max) |
240 V |
|
Output frequency |
50/60 Hz |
|
Surge energy rating |
480 J |
|
Crest factor |
3:1 |
|
Output voltage Total Harmonic Distortion (THD) |
2% |
|
Noise level |
55 dB |
|
Surge protection |
Yes |
|
Audible alarm(s) |
Yes |
|
Web-based management |
Yes |
|
Auto-restart |
Yes |
|
Ports & interfaces |
|

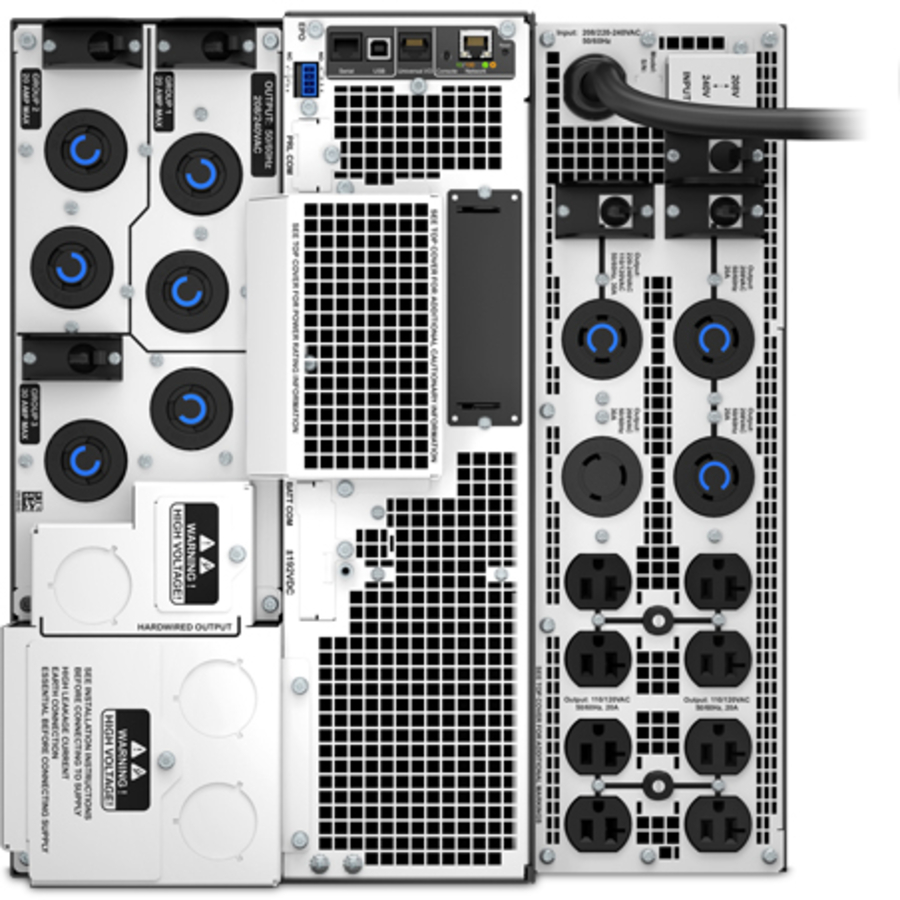

AC outlet types |
Hard Wire 3-wire (2PH + G), NEMA 5–20R, NEMA L14-30R, NEMA L6-20R, NEMA L6-30R |
|
AC outlets quantity |
18 AC outlet(s) |
|
USB port |
Yes |
|
Serial interface |
Yes |
|
Serial interface type |
RJ-45 |
|
Serial ports quantity |
1 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Cabling technology |
10/100Base-T |
|
Emergency Power Off (EPO) connector |
Yes |
|
Battery |
|
Battery technology |
Sealed Lead Acid (VRLA) |
|
Battery capacity |
1716 VAh |
|
Battery life (max) |
5 year(s) |
|
Battery recharge time |
1.5 h |
|
Hot-swap battery |
Yes |
|
Automatic battery test |
Yes |
|
Cold start |
Yes |
|
Replacement battery cartridge |
APCRBC140 |
|
Design |
|
Form factor |
Rackmount/Tower |
|
Product colour |
Black |
|
Display type |
LCD |
|
LED indicators |
Alarm, Status |
|
International Protection (IP) code |
IP20 |
|
Certification |
CSA C22.2 No.107.3-05, FCC Part 15 Class A, UL 1778, REACH |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-15 - 45 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 15000 m |
|
Technical details |
|
Sustainability certificates |
ENERGY STAR |
|
Compliance certificates |
RoHS |
|
Weight & dimensions |
|
Width |
392 mm |
|
Depth |
715 mm |
|
Height |
432 mm |
|
Weight |
168.3 kg |
|
Package width |
603 mm |
|
Package depth |
1000 mm |
|
Package height |
808 mm |
|
Package weight |
190.1 kg |
|
Logistics data |
|
Products per pallet |
1 pc(s) |
|
