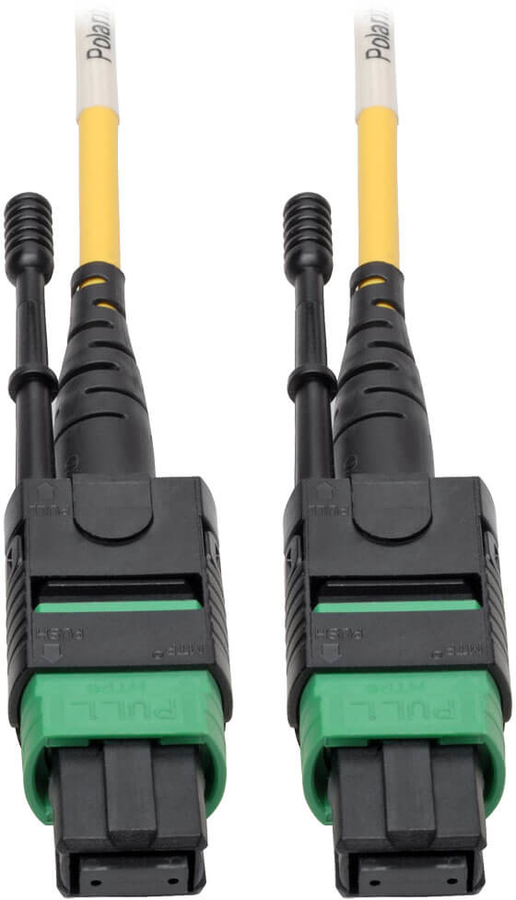

Tripp Lite 23-Foot MTP/MPO (APC) Singlemode Patch Cable (F/F), 12 Fiber, 40/100 GbE, QSFP+ 40GBASE-PLR4, Plenum, Push/Pull Tab, Yellow
|
|
Price: $321.00
Manufacturer:
Tripp Lite
MTP/MPO (APC) Singlemode Patch Cable (F/F), 12 Fiber, 40/100 GbE, QSFP+ 40GBASE-PLR4, Plenum, Push/Pull Tab, Yellow, 7 m (23 ft.)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58121587
|
N390-07M-12-AP
|
37332205391 |
Active
|
Details
|
General Information |
|
Summary |
9/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications
Designed for enterprise applications in wiring closets, telecom rooms and data centers
Recommended for QSFP+ applications in enterprise installations
Plenum-rated jacket suited for ceilings, walls and ducts
Yellow-colored for identification as a singlemode cable

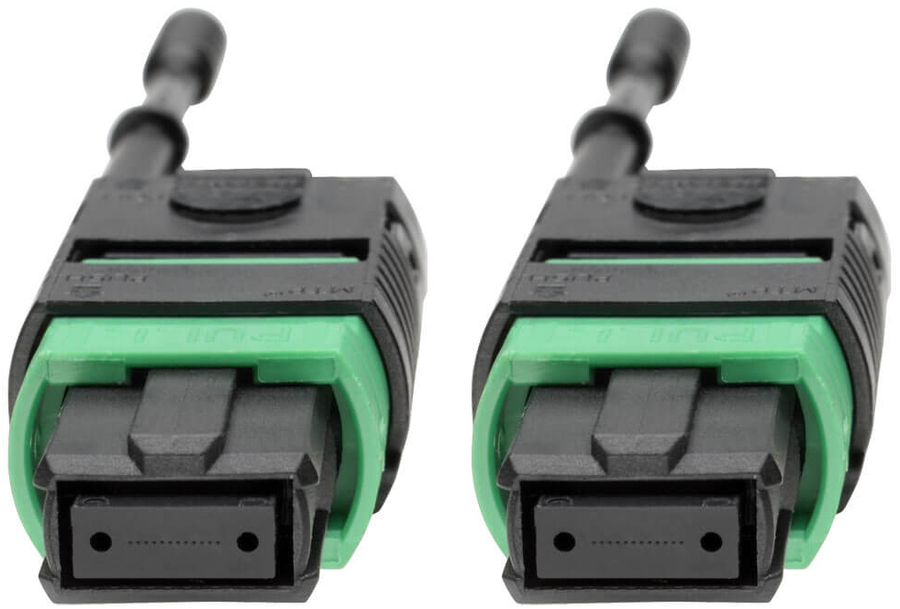

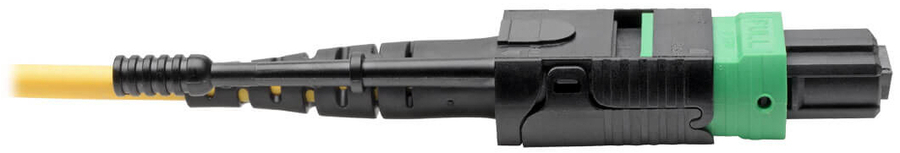

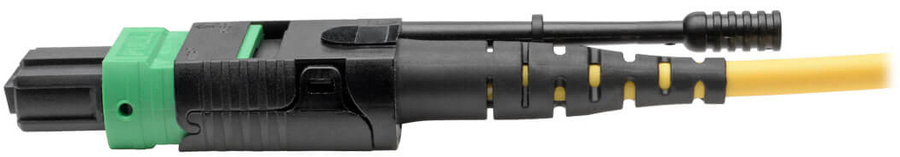

MTP/MPO APC Connectors with Push/Pull Tabs
12-fiber female connectors 12 times denser than SC connectors
APC connector angled to prevent light from reflecting back into laser
Push/pull tabs easy to install and remove with one hand
100% tested for low insertion loss and back reflection |
|
Features |
|
Cable length |
7 m |
|
Cable type |
OFNP |
|
Connector 1 |
MTP |
|
Connector 2 |
MTP |
|
Connector 1 gender |
Female |
|
Connector 2 gender |
Female |
|
Product colour |
Yellow |
|
Core diameter |
8.3 µm |
|
Cladding diameter |
125 µm |
|
Fiber mode structure |
Single-mode |
|
Data transfer rate |
100 Gbit/s |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Operational conditions |
|
Operating temperature (T-T) |
-20 - 60 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Packaging data |
|
Package width |
177.8 mm |
|
Package depth |
228.6 mm |
|
Package height |
12.7 mm |
|
Package weight |
140 g |
|
Logistics data |
|
Master (outer) case GTIN (EAN/UPC) |
10037332205398 |
|
Country of origin |
China |
|
Master (outer) case width |
147.3 mm |
|
Harmonized System (HS) code |
8544.70.0000 |
|
Master (outer) case length |
188 mm |
|
Master (outer) case height |
154.9 mm |
|
Master (outer) case gross weight |
770 g |
|
Products per master (outer) case |
10 pc(s) |
|
