General Information |
|
Summary |

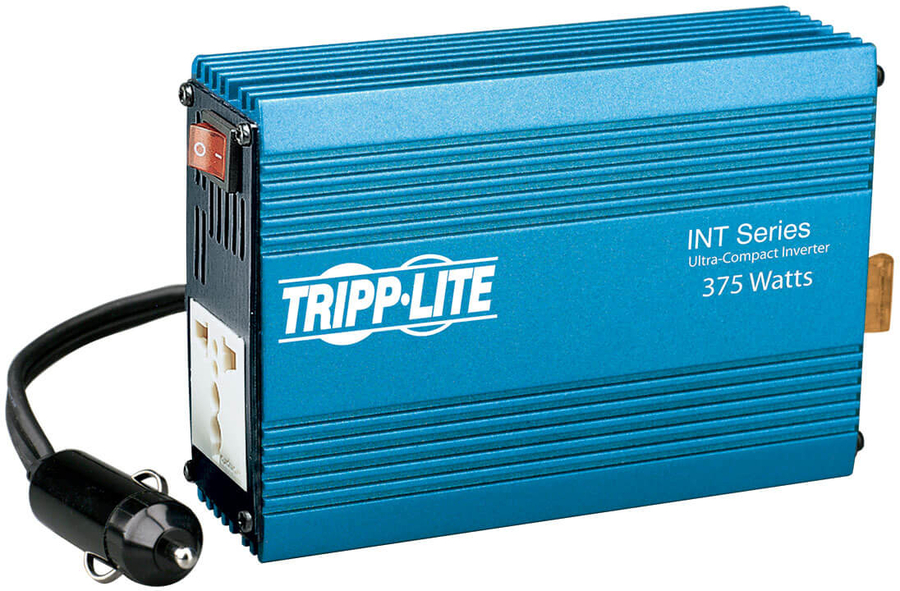

Power electrical appliances in your car with INT-Series PVINT375 DC-to-AC power inverter. Converts 12V DC power from your automotive cigarette lighter jack to modified sine wave AC power compatible with 220-240V 50 Hz equipment. 375 watt continuous/600 watt instantaneous peak surge power handling capability powers laptop computers, battery chargers, TV/VCRs, gaming systems and small power tools. Universal outlet accepts French, German and UK-style connectors, plus a variety of international plug sets. Rugged, all-metal case design withstands abuse in a compact format weighing approximately 1 kilogram. Built-in low-battery alarm and auto-shutoff prevents deep battery discharge. Includes lighted power switch, user replaceable fuse, built-in cooling fan and one-meter DC input cable. |
|
Features |
|
Power supply type |
Auto |
|
Input voltage |
12 V |
|
Output power |
375 W |
|
Output voltage |
230 V |
|
Output frequency |
50/60 Hz |
|
Adjustable output voltage |
Yes |
|
Power protection features |
Overload |
|
Power |
|
Automatic output voltage adjustment |
Yes |
|
Performance |
|
AC outlets quantity |
1 AC outlet(s) |
|
Design |
|
Product colour |
Blue |
|
Housing material |
Aluminium, Metal |
|
Operational conditions |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Certificates |
|
Certification |
RoHS |
|
Weight & dimensions |
|
Cable length |
1 m |
|
Width |
108 mm |
|
Depth |
196.8 mm |
|
Height |
50.8 mm |
|
Weight |
910 g |
|
Packaging data |
|
Package width |
63.5 mm |
|
Package depth |
221 mm |
|
Package height |
182.9 mm |
|
Package weight |
1.13 kg |
|
Technical details |
|
Peak power |
600 W |
|
Logistics data |
|
Harmonized System (HS) code |
8504.40.9570 |
|
Country of origin |
China |
|
Master (outer) case width |
243.8 mm |
|
Master (outer) case length |
378.5 mm |
|
Master (outer) case height |
185.4 mm |
|
Master (outer) case gross weight |
7.21 kg |
|
Products per master (outer) case |
6 pc(s) |
|
Master (outer) case GTIN (EAN/UPC) |
10037332119282 |
