General Information |
|
Summary |

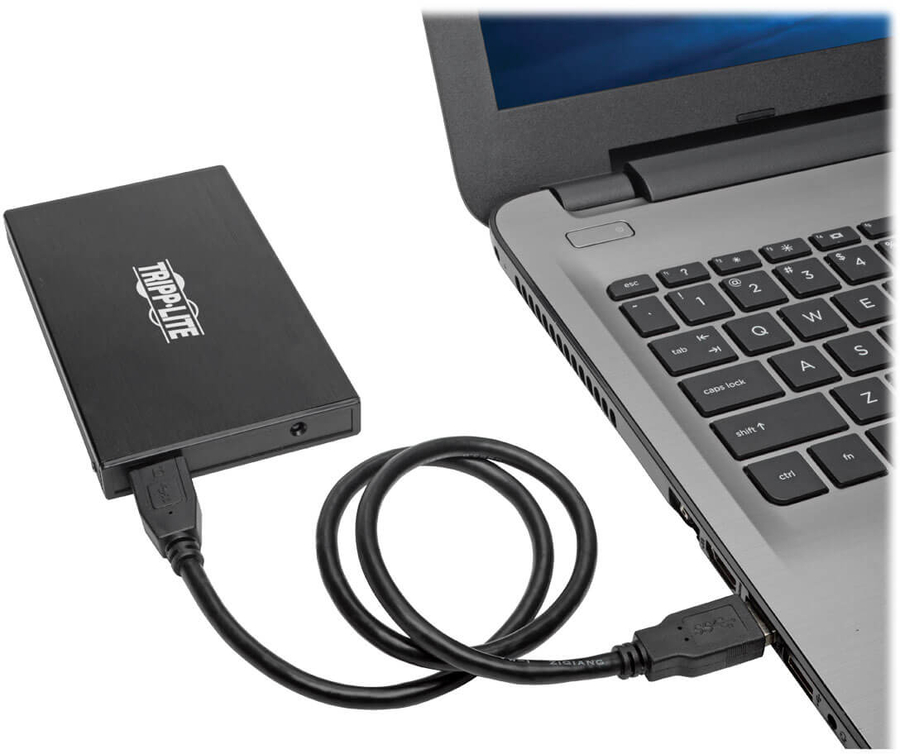

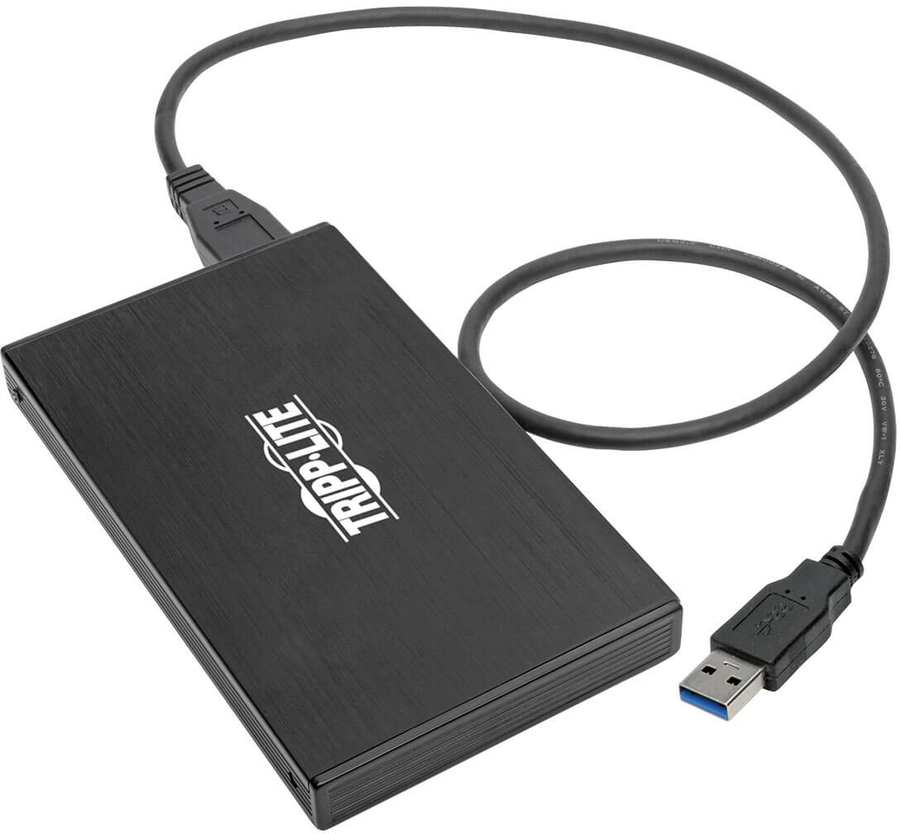

The U457-025-AG2 USB 3.1 Gen 1 (5 Gbps) SATA SSD/HDD to USB-A Enclosure Adapter lets you connect a high-performance SATA solid state drive (SSD) or hard disk drive (HDD) to a computer or laptop with a USB-A port. Not only does it support USB 3.1 Gen 1 data transfer rates up to 5 Gbps, but it reads data up to 70 percent faster and writes up to 40 percent faster when connected to a UASP-enabled host controller.

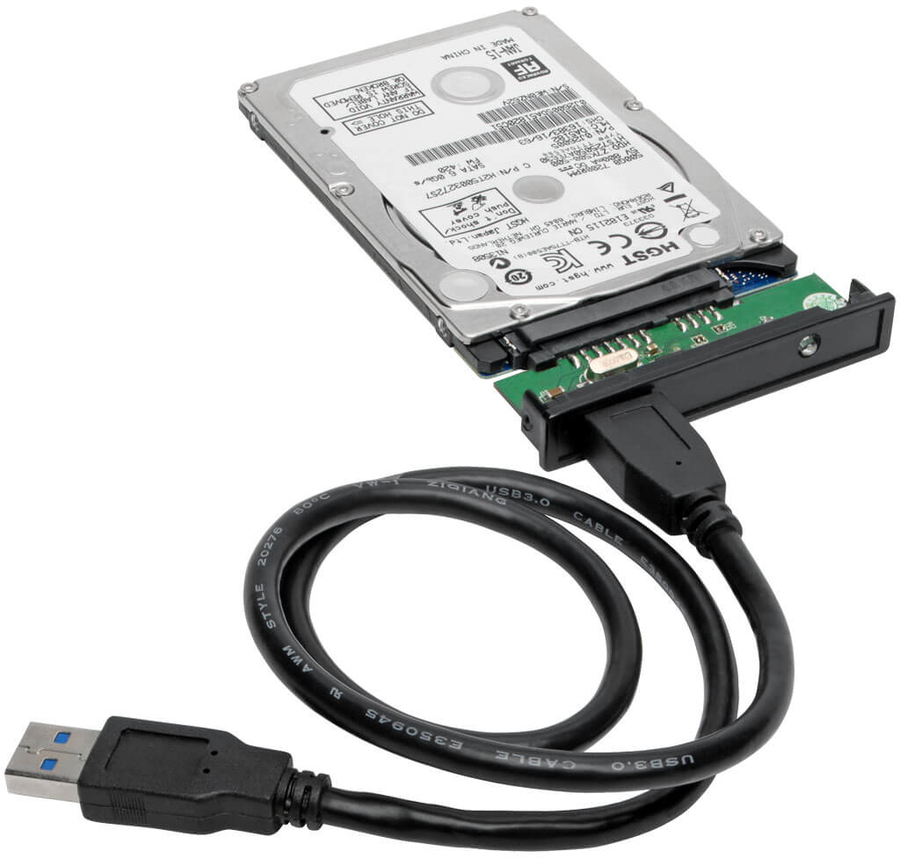

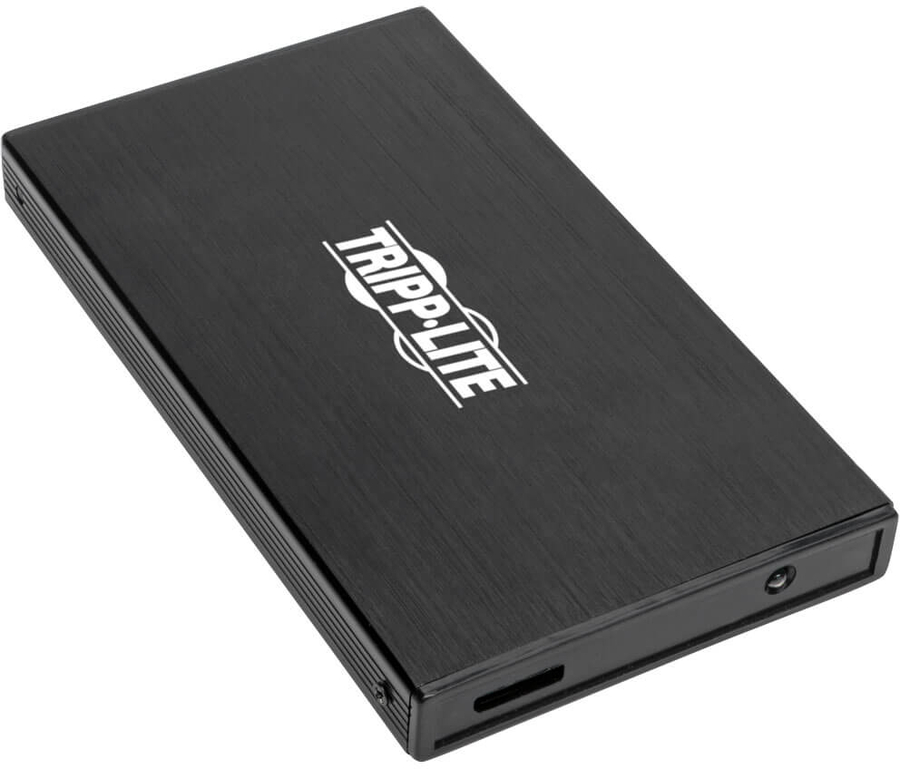

Recommended for storing and sharing large files, such as photos, music and video files, the U457-025-AG2 accepts 2.5-inch SATA drives up to 2 TB. You can access data on an older SATA drive, or use a new SATA drive for additional storage space. The adapter is plug-and-play, so no software, drivers or external power supply is required, and it is backward compatible with previous USB generations. A blue LED indicates data is being read, written or transferred. Slim aluminum case stores conveniently in a backpack or laptop bag for use anywhere. |
|
Storage |
|
Storage drive size |
2.5" |
|
Supported storage drive interfaces |
Serial ATA, Serial ATA II, Serial ATA III |
|
Number of storage drives supported |
1 |
|
Supported storage drive heights |
9.5 mm |
|
Maximum storage capacity |
2 TB |
|
Ports & interfaces |
|
USB connectivity |
Yes |
|
USB version |
3.2 Gen 1 (3.1 Gen 1) |
|
USB connector type |
Micro-USB B |
|
Design |
|
Product type |
HDD/SSD enclosure |
|
Product colour |
Black |
|
Material |
Aluminium |
|

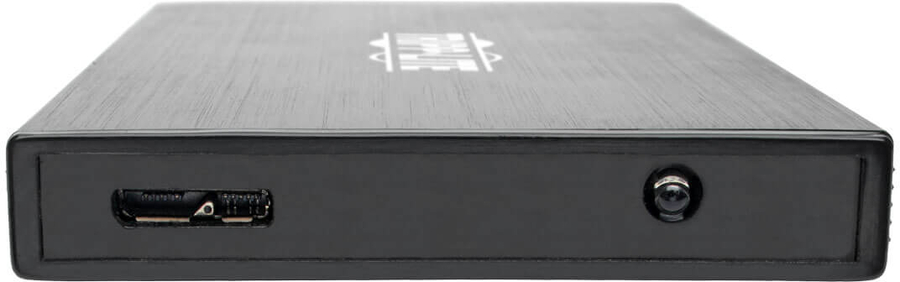

LED indicators |
Yes |
|
Certification |
CE, FCC |
|
Performance |
|
Data transfer rate |
5 Gbit/s |
|
UASP support |
Yes |
|
Plug and Play |
Yes |
|
Country of origin |
China |
|
Power |
|
Power source type |
USB |
|
Operational conditions |
|
Operating temperature (T-T) |
10 - 50 °C |
|
Storage temperature (T-T) |
0 - 65 °C |
|
Operating relative humidity (H-H) |
10 - 80% |
|
Weight & dimensions |
|
Package width |
181.1 mm |
|
Package depth |
128 mm |
|
Package height |
48 mm |
|
Package weight |
60 g |
|

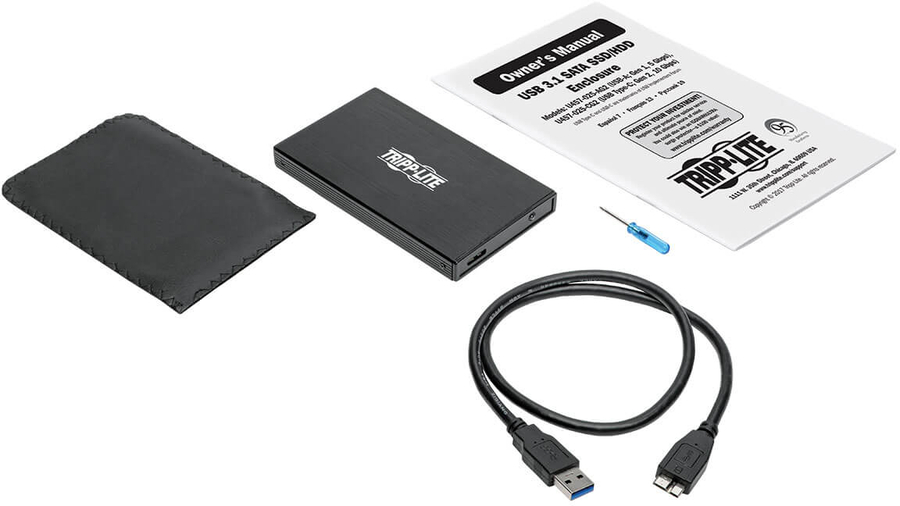

Packaging content |
|
Cables included |
USB |
|
Travel pouch |
Yes |
|
Screwdriver included |
Yes |
|
Manual |
Yes |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
Logistics data |
|
Master (outer) case width |
374.9 mm |
|
Master (outer) case length |
255 mm |
|
Master (outer) case height |
148.1 mm |
|
Master (outer) case gross weight |
2.3 kg |
|
Products per master (outer) case |
10 pc(s) |
|
Master (outer) case GTIN (EAN/UPC) |
10037332202434 |
