General Information |
|
Summary |

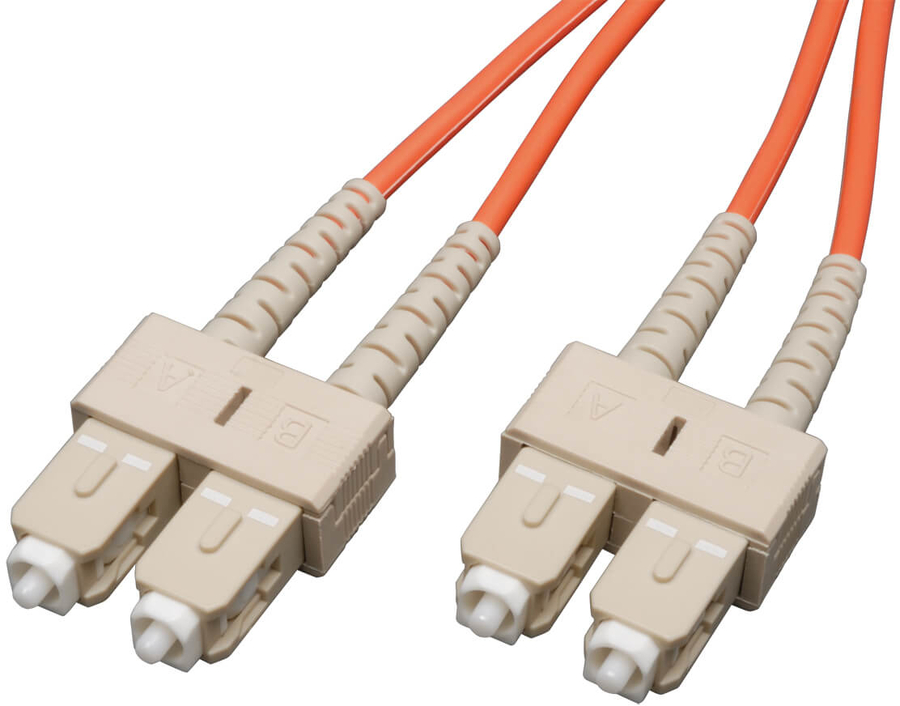

This multimode duplex fiber optic SC/SC Ethernet cable is manufactured from 62.5/125 zipcord fiber. The cable has SC connectors on each end, a PVC jacket and is FDDI and OFNR rated. Duplex multimode fiber is most commonly used in LAN applications. |
|
Features |
|
Cable length |
0.3 m |
|
Cable type |
OFNR |
|
Connector 1 |
2x SC |
|
Connector 2 |
2x SC |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Product colour |
Orange |
|
Jacket material |
Polyvinyl chloride (PVC) |
|
Core diameter |
62.5 µm |
|
Cladding diameter |
125 µm |
|
Fiber mode structure |
Multi-mode |
|
Data transfer rate |
1 Gbit/s |
|
Insertion loss |
0.2 dB |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Packaging data |
|
Package width |
177.8 mm |
|
Package depth |
12.7 mm |
|
Package height |
228.6 mm |
|
Package weight |
20 g |
|
Logistics data |
|
Master (outer) case GTIN (EAN/UPC) |
10037332135176 |
|
Country of origin |
China |
|
Master (outer) case width |
180.3 mm |
|
Harmonized System (HS) code |
8544.70.0000 |
|
Master (outer) case length |
180.3 mm |
|
Master (outer) case height |
99.1 mm |
|
Master (outer) case gross weight |
200 g |
|
Products per master (outer) case |
10 pc(s) |
