General Information |
Summary |

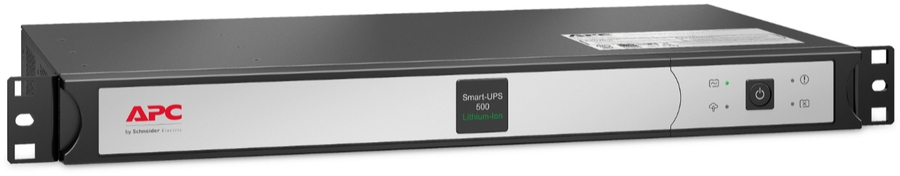

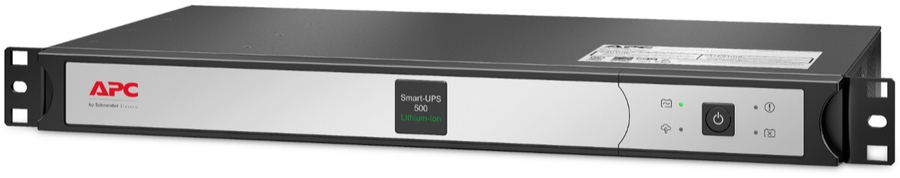

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
Features |
UPS topology |
Line-Interactive |
Output power capacity |
0.5 kVA |
Output power |
400 W |
Waveform |
Sine |
Input operation voltage (min) |
92 V |
Input operation voltage (max) |
139 V |
Input frequency |
47/63 Hz |
Output operation voltage (min) |
120 V |
Output operation voltage (max) |
120 V |
Output frequency |
50/60 Hz |
Output voltage regulation |
5% |
Automatic Voltage Regulation (AVR) |
Yes |
Surge energy rating |
680 J |
Response time |
6 ms |
Noise level |
45 dB |
Audible alarm(s) |
Yes |
Audible alarm modes |
Alarm when on battery |

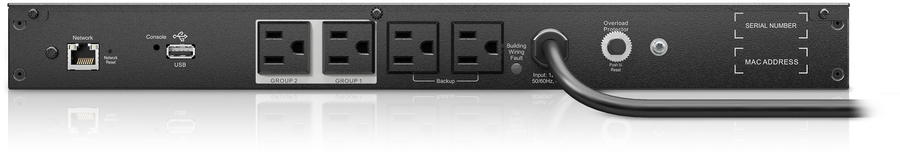

Ports & interfaces |
AC outlet types |
NEMA 5–15R |
Power plug |
NEMA 5-15P |
AC outlets quantity |
4 AC outlet(s) |
USB port |
Yes |
USB 2.0 ports quantity |
1 |
USB port type |
USB Type-A |
Ethernet LAN (RJ-45) ports |
1 |
Battery |
Battery technology |
Lithium-Ion (Li-Ion) |
Battery life (max) |
10 year(s) |
Battery recharge time |
3 h |
Design |
Form factor |
Rackmount |
Product colour |
Black, Silver |
Rack capacity |
1U |
LED indicators |
Yes |
Certification |
CSA C22.2 NO. 107.3, cULus, FCC 15 Class A, NOM, UL 1778, UL 1973 |
Operational conditions |
Operating temperature (T-T) |
0 - 40 °C |
Storage temperature (T-T) |
-15 - 45 °C |
Operating relative humidity (H-H) |
10 - 90% |
Storage relative humidity (H-H) |
10 - 90% |
Operating altitude |
0 - 1968 m |
Non-operating altitude |
0 - 14763 m |
Technical details |
Sustainability certificates |
RoHS |
Weight & dimensions |
Width |
432 mm |
Depth |
232 mm |
Height |
44 mm |
Weight |
4.22 kg |
Package width |
590 mm |
Package depth |
337 mm |
Package height |
168 mm |
Package weight |
6.49 kg |
Packaging data |
Rack mount kit |
Yes |
Cables included |
USB cable |
Quick installation guide |
Yes |
