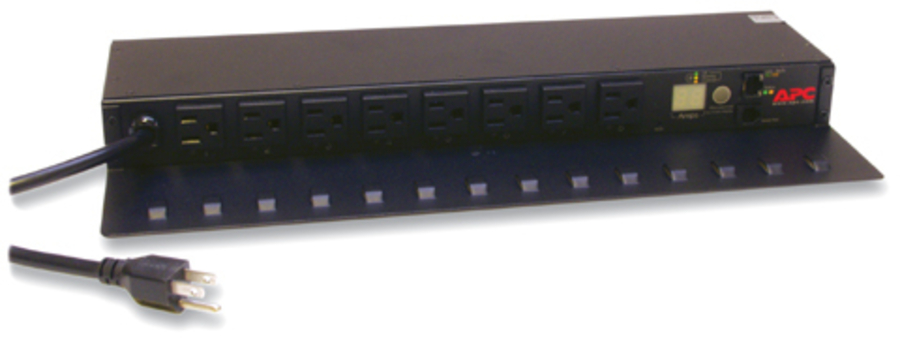

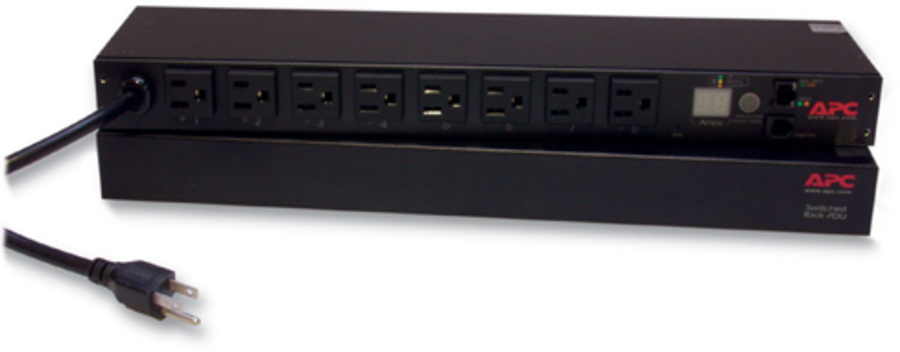

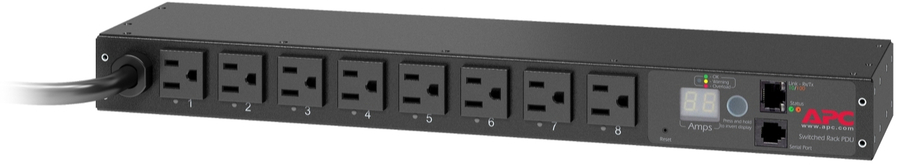

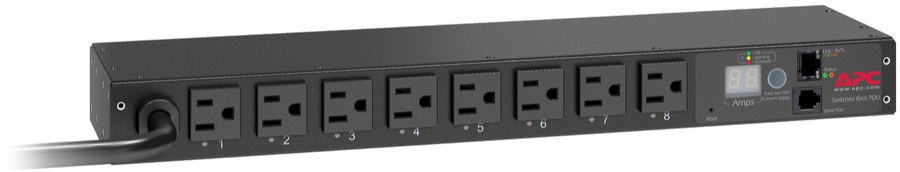

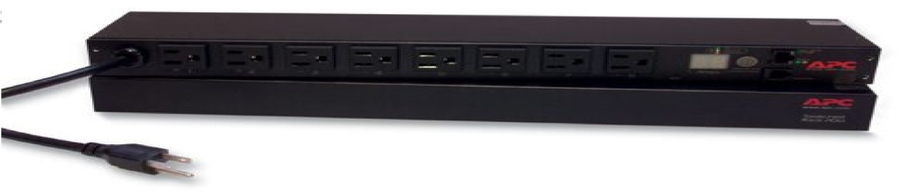

APC Rack PDU, Switched, 1U, 15A, 100/120V, (8)5-15
|
|
Regularly: $928.00
On Sale: $890.88
Sale Ends:
April 26th, 2024
Manufacturer:
APC
Rack PDU, Switched, 1U, 15A, 100/120V, (8)5-15, LED
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58122263
|
AP7900B
|
731304331568 |
Active
|
Details
|
General Information |
|
Summary |
Switched Rack Power Distribution Units (PDUs) provide advanced load monitoring combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management.
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Power Delays
Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.

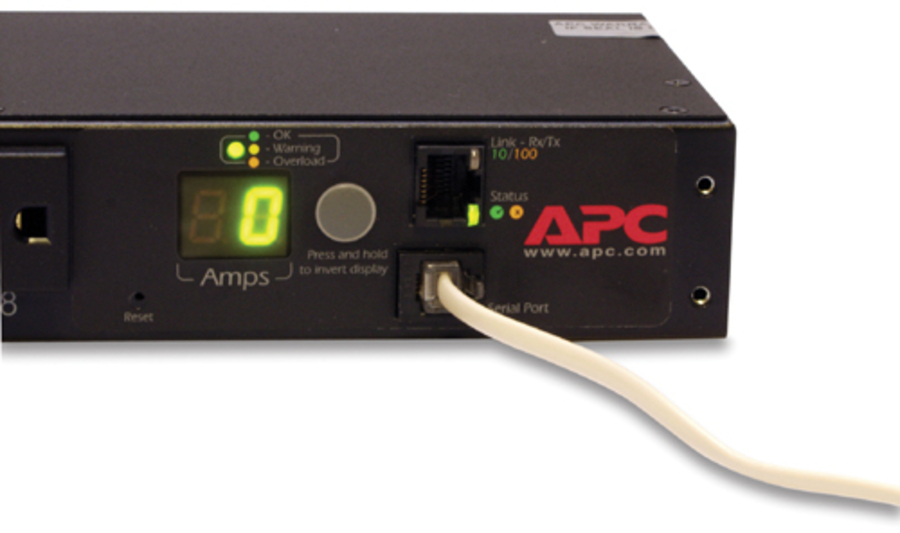

Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Remote Individual Outlet Control
Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)
Network Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only) |
|
Design |
|
PDU types |
Switched |
|
Rack capacity |
1U |
|
Mounting |
Horizontal |
|
Product colour |
Black |
|
Ports & interfaces |
|
AC outlets quantity |
8 AC outlet(s) |
|
AC outlet types |
NEMA 5–15P |
|
Power plug |
NEMA 5–15P |
|
Features |
|
LED indicators |
Yes |
|
Cable length |
3.65 m |
|
Certification |
UL/cUL, PSE, FCC Part 15 Class A, IC
ES-003 Class A, VCCI Class A |
|
Power |
|
Nominal input voltage |
100 - 120 V |
|
Maximum current |
15 A |
|
AC input frequency |
50 - 60 Hz |
|
Nominal output voltage |
120 V |
|
Maximum total current draw per phase |
15 A |
|
Weight & dimensions |
|
Dimensions (WxDxH) |
444.5 x 108 x 44.5 mm |
|
Weight |
2.26 kg |
|
Packaging data |
|
Package weight |
3.4 kg |
|
Operational conditions |
|
Operating temperature (T-T) |
23 - 113 °F |
|
Storage temperature (T-T) |
-25 - 65 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 15000 m |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
