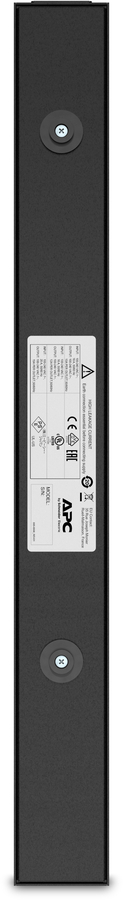

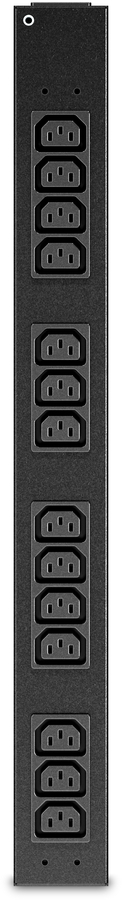

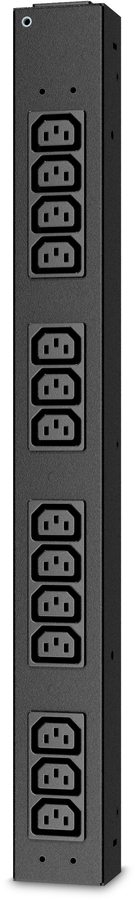

APC RACK PDU, BASIC, HALF HEIGHT, 100-240V/20A, 220-240V/16A, (14) C13
|
|
Regularly: $279.00
On Sale: $267.84
Sale Ends:
April 26th, 2024
Manufacturer:
APC
APC Rack PDU, Basic, 0U/2U, 16A, 230V, (14x) C13
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58122266
|
AP6003A
|
731304327769 |
Active
|
Details
|
Design |
|
PDU types |
Basic |
|
Rack capacity |
0U/2U |
|
Type |
Single-phase |
|
Mounting |
Horizontal/Vertical |
|
Product colour |
Black |
|
Ports & interfaces |
|
AC outlets quantity |
14 AC outlet(s) |
|
AC outlet types |
C13 coupler |
|
Power plug |
C20 coupler |
|
Input connection type |
IEC-320 C20 |
|
Features |
|
Certification |
cUL, UL, REACH |
|
Power |
|
Nominal input voltage |
230 V |
|
Maximum current |
20 A |
|
AC input frequency |
50 - 60 Hz |
|
Nominal output voltage |
100-240 V |
|
Load capacity |
3680 VA |
|
Maximum input current per phase |
16 A |
|
Maximum total current draw per phase |
16 A |
|
Maximum power |
3680 W |
|
Weight & dimensions |
|
Dimensions (WxDxH) |
56 x 47 x 523 mm |
|
Weight |
1.88 kg |
|
Packaging data |
|
Package dimensions (WxDxH) |
123 x 107 x 612 mm |
|
Package weight |
2.55 kg |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-15 - 65 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 15000 m |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
