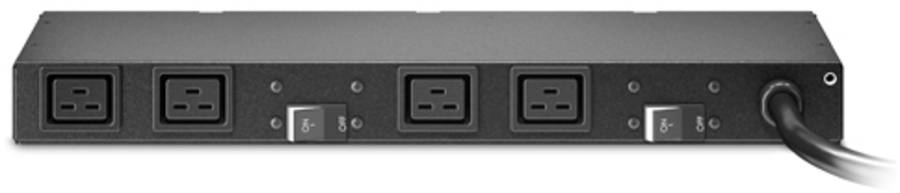

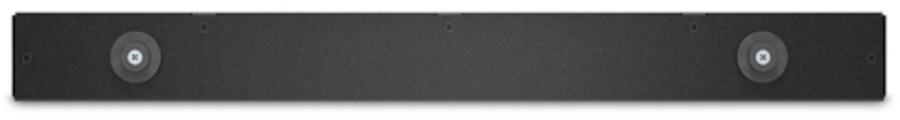

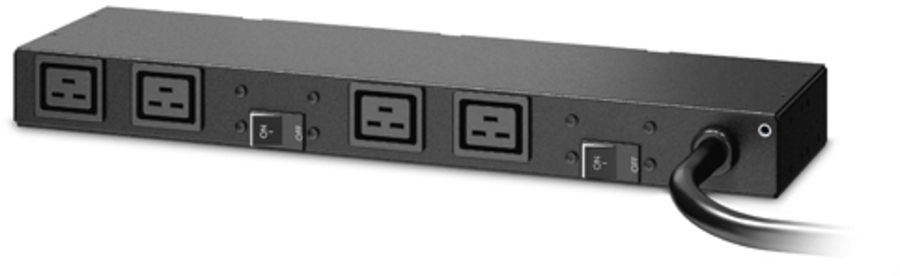

APC Rack PDU, Basic, 0U/1U, 208V, 30A, (4) C19
|
|
Regularly: $249.00
On Sale: $239.04
Sale Ends:
May 4th, 2025
Manufacturer:
APC
208V, 50/60Hz, 30A, 4xC19, 438 x 126 x 44mm, 3.8kg, Black
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58122267
|
AP6031A
|
731304327813 |
Active
|
Details
|
General Information |
|
Summary |
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price. |
|
Design |
|
PDU types |
Basic |
|
Rack capacity |
1U |
|
Product colour |
Black |
|
Ports & interfaces |
|
AC outlets quantity |
4 AC outlet(s) |
|
AC outlet types |
C19 coupler |
|
Input connection type |
NEMA L6-30P |
|
Features |
|
Cable length |
3.66 m |
|
Power |
|
Nominal input voltage |
208 V |
|
Maximum current |
30 A |
|
AC input frequency |
50 - 60 Hz |
|
Nominal output voltage |
208 V |
|
Maximum total current draw per phase |
30 A |
|
Power protection features |
Overload |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Certification |
cUL, UL, REACH |
|
Weight & dimensions |
|
Width |
438 mm |
|
Depth |
126 mm |
|
Height |
44 mm |
|
Weight |
3.8 kg |
|
Packaging data |
|
Package width |
473 mm |
|
Package depth |
180 mm |
|
Package height |
281 mm |
|
Package volume |
4600 cm³ |
|
