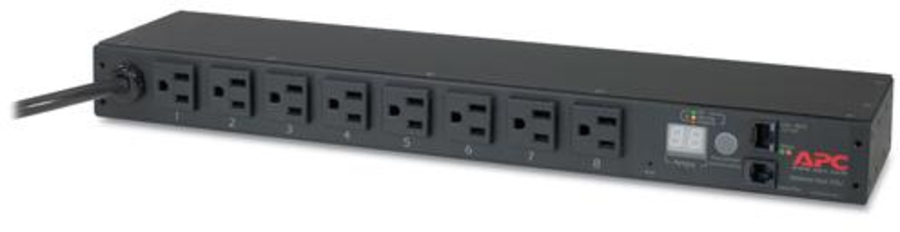

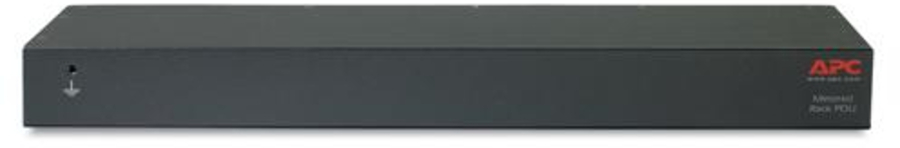

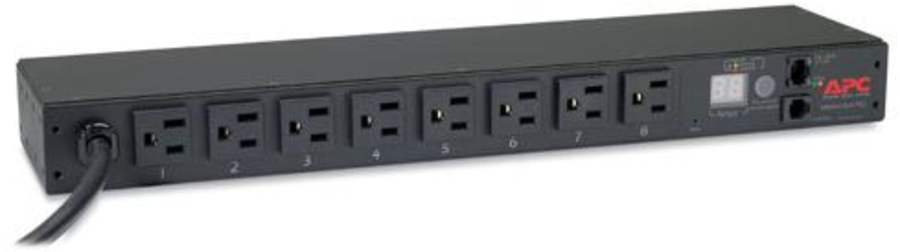

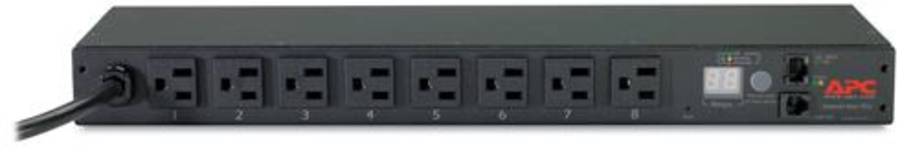

APC Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15
|
|
Regularly: $660.00
On Sale: $633.60
Sale Ends:
April 26th, 2024
Manufacturer:
APC
1U, 15A, 100/120V, 8x NEMA 5-15R, NEMA 5-15P, 444 x 102 x 44 mm, 1730 g
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58122269
|
AP7800B
|
731304331452 |
Active
|
Details
|
General Information |
|
Summary |
Agility
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Availability
Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Marketing Features
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Local and web-based monitoring
Status available to customers both in the data center and remotely
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip. |
|
Design |
|
PDU types |
Metered |
|
Rack capacity |
1U |
|
Product colour |
Black |
|
Ports & interfaces |
|
AC outlets quantity |
8 AC outlet(s) |
|
AC outlet types |
NEMA 5–15R |
|
Input connection type |
NEMA 5-15P |
|
Features |
|
Cable length |
3.66 m |
|
Certification |
cUL, CSA, FCC 15 A, ICES-003, METI Denan, UL 60950, UL, VCCI, REACH, PEP, EOLI |
|
Management features |
|
Monitoring |
Current |
|
Power |
|
Nominal input voltage |
100 - 120 V |
|
Maximum current |
1440 A |
|
AC input frequency |
50 - 60 Hz |
|
Nominal output voltage |
120 V |
|
Maximum input current per phase |
15 A |
|
Maximum total current draw per phase |
12 A |
|
Weight & dimensions |
|
Dimensions (WxDxH) |
444 x 102 x 44 mm |
|
Weight |
1.73 kg |
|
Packaging data |
|
Package dimensions (WxDxH) |
470 x 337 x 64 mm |
|
Package weight |
2.91 kg |
|
Packaging content |
|
Packaging content |
Cord Retention Bracket(s), Installation Guide, Rack Mounting Brackets, User Manual |
|
Operational conditions |
|
Operating temperature (T-T) |
-5 - 45 °C |
|
Storage temperature (T-T) |
-25 - 65 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 15000 m |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
